2015 1500HP Electric Complete Working Rig

Location: USA

Type: Used

Condition: Good

2015 1500HP Electric Complete Working Rig Details

DRAWWORKS

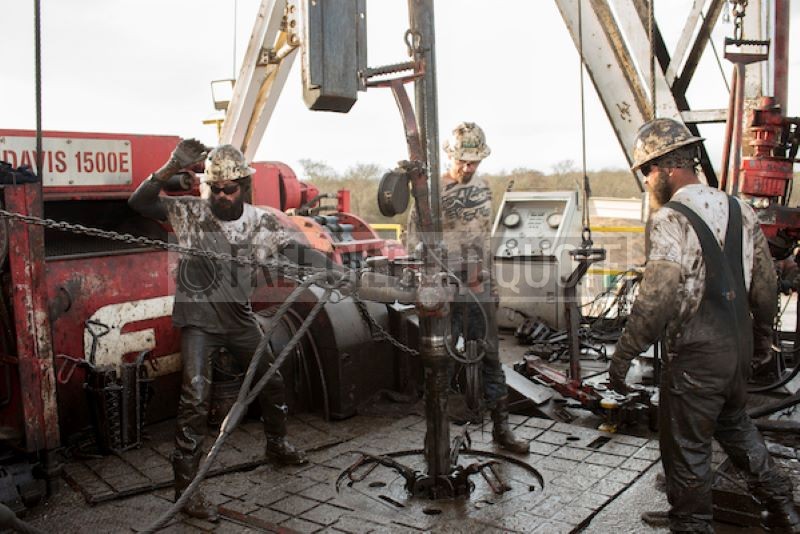

Davis 1500-E (National 110 UE copy) with 2 – GE 752 DC Motors

Grooved for 1 – 3/8in Drill Line

WPT 235 Eaton Auxiliary Brake

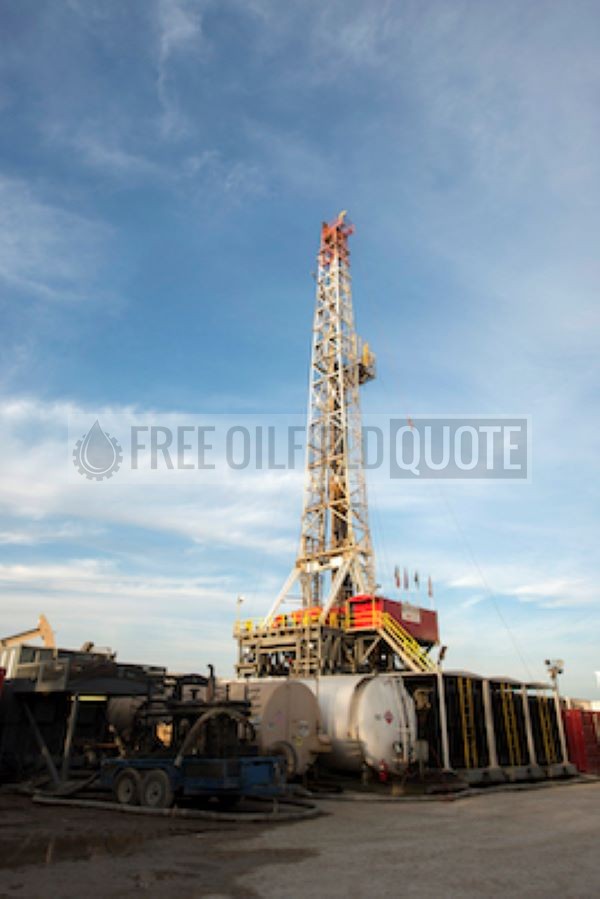

DERRICK

Superior

142ft High, Cantilever Mast

768,000# Static Hook Load Capacity

SUBSTRUCTURE

Superior with 768,000# casing capacity and 500,000 # setback capacity

21ft Rotary Beam Clearance

25ft High Box on Box Type

POWER SOURCE

(3) – Caterpillar 3512Cs with 1365 KW generators

Ross Hill type 3 x 4 bay SCR House

PUMPS

3-F-1600 Type 7 – 1/2in x 12in Triplex Powered by 2-752 DC Motors each – 7500 psi working system

Low Pressure Mud Mixing System with Two 5in x 6in Centrifugal Pumps with 40 HP Electric Motors

DRILL STRING

Drill Pipe – 4 -1/2in Grade S-135 16.60, X-Hole with Hardband

Drill Collars – 6in – 6 -1/2in OD NC44 with Hardband

7in – 7 -1/4in OD 5in H90 with Hardband

8in – 8in OD 5in H90

Pipe Spinner: J29 Varco Chain Type

PREVENTERS

1- 13 5/8in Hydril type Annular wp 5000 psi

1- Schaffer style 13 -5/8in 10,000 psi Double Rams

1-Shaffer style 13 -5/8in 10,000 psi Single Ram

1- 4in manual valve, 1- 4in HCR valve, 2- 2 1/16in valves and 1- 2 -1/16in check valve all 10,000 psi

1- CAD Type M Series, 5 Station Closing Unit with (15) 12 Gallon Bottles with 220 Gallon Reserve with remote

Choke Manifold-10,000 psi 4in x 3in with Two Adjustable 3in Choke

OTHER EQUIPMENT

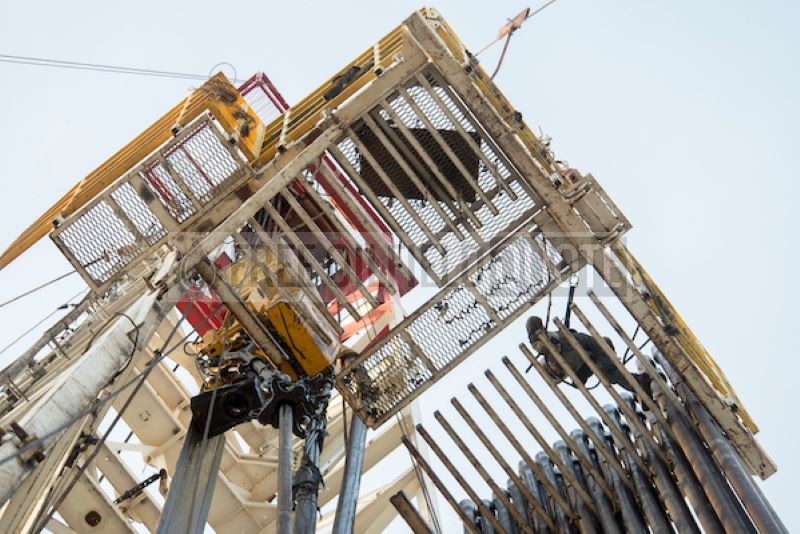

350 ton Warrior Hydraulic top drive with 7500 psi circ rating

Columbia In-Sub Walking System with HPU

Crown Block – Superior – (7) 48in Sheaves

Traveling Block – National Oilwell type 500 Ton

Weight Indicator – Type D

Rotary – 27 1/2in x 53 1/4in

Fuel Tank with Lubester – 15,000 Gallon

50 BBL trip tank

Wireline Unit – .092 Line

Mud Tanks – Two Tank System, Round Bottom, 750 BBL with 5 Electric Agitators Plus 105 BBL Slugging Tank

Shakers – 3 x Derrick 503 Type Linear Motion

Desander – Derrick, (2) 12in Cones with Mission Magnum 5in x 6in Centrifugal Pump with 40 HP Electric Motor

Desilter – Derrick, (12) 4in Cones with Mission Magnum 5in x 6in Centrifugal Pump with 40 HP Electric Motor

Degasser – Derrick Drilco type

Oilfield Instrumentation automatic driller and monitoring equipment

498 Barrel Drill Water Tank

NOTES

1,500 HP ELECTRIC SCR | 142ft-768,000# Static Hook Load Triple | Three F-1600 HP 7.5in X 12in Triplex | Hydrill 13 5/8in 10,000 psi double rams
