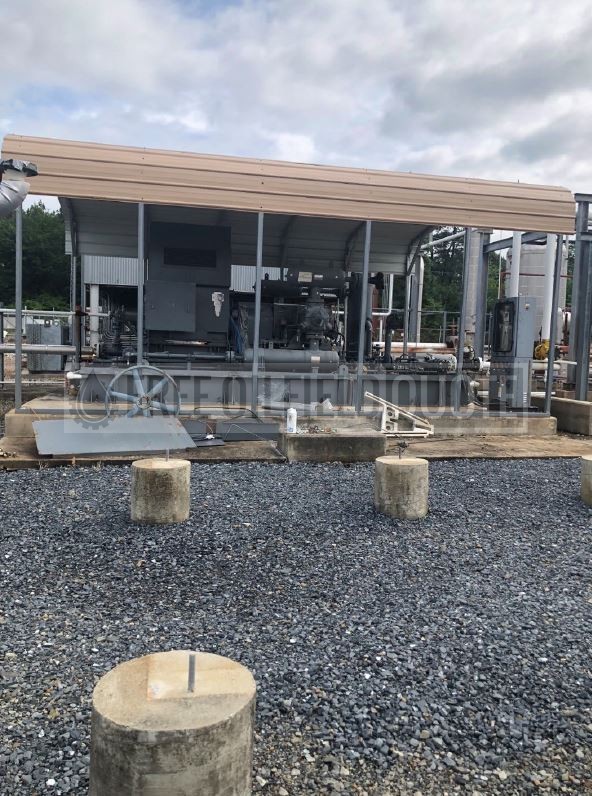

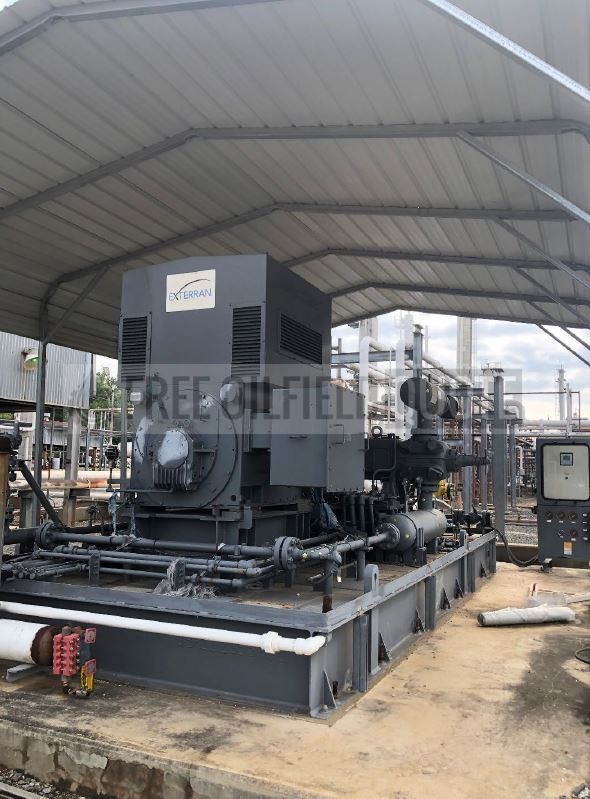

Ariel JGT-2-1 Westinghouse 750 HP Motor Single Stage Compressor Package

Manufacturer: Ariel
Model: JGT-2-1
Type: New
Location: Bakersfield, CA

Ariel JGT-2-1 Westinghouse 750 HP Motor Single Stage Compressor Package Details

New/unused Ariel JGT-2 / 750 HP electric drive single stage unit in stock.

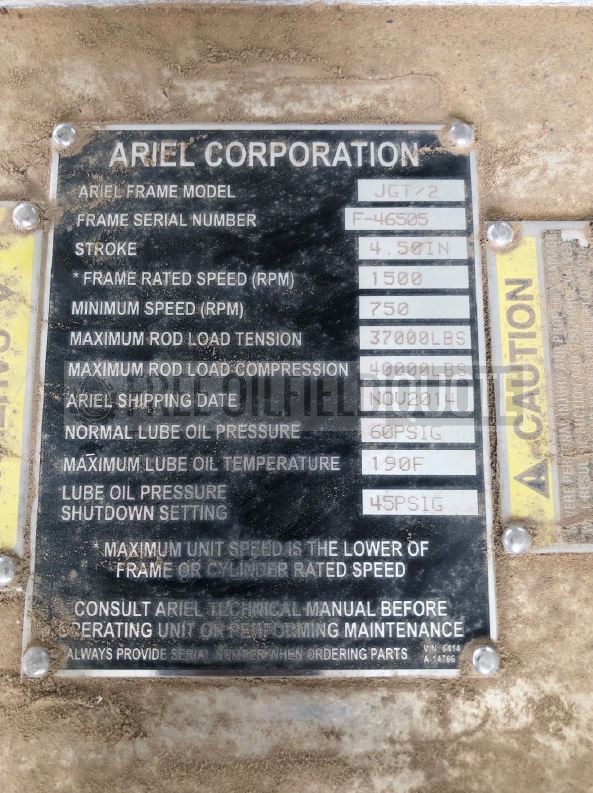

Ariel Compressor Frame

• Model: JGT-2
• Stroke: 4.5in
• RPM: 1500
• Min RPM: 750
• RL Tension: 37,000 Lbs
• RL Compression: 40,000
• Shipping Date: NOV 2014
• SN: F-46505

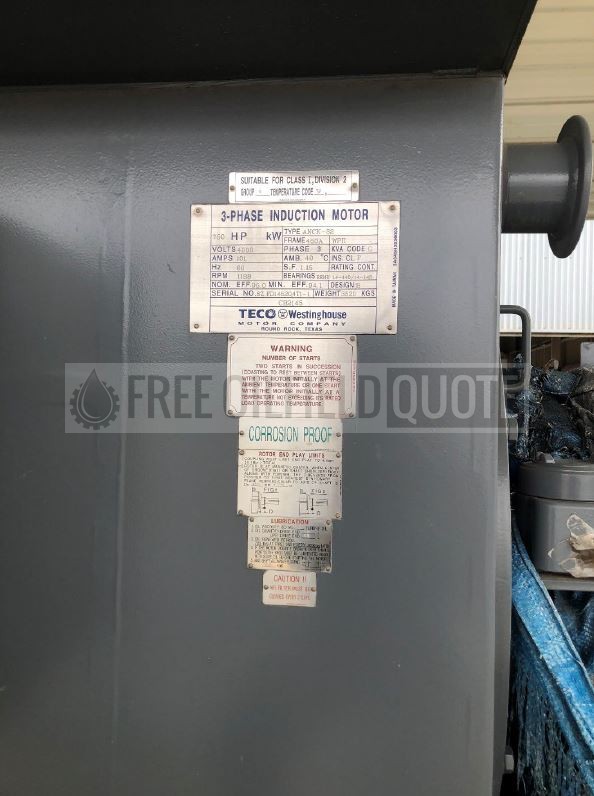

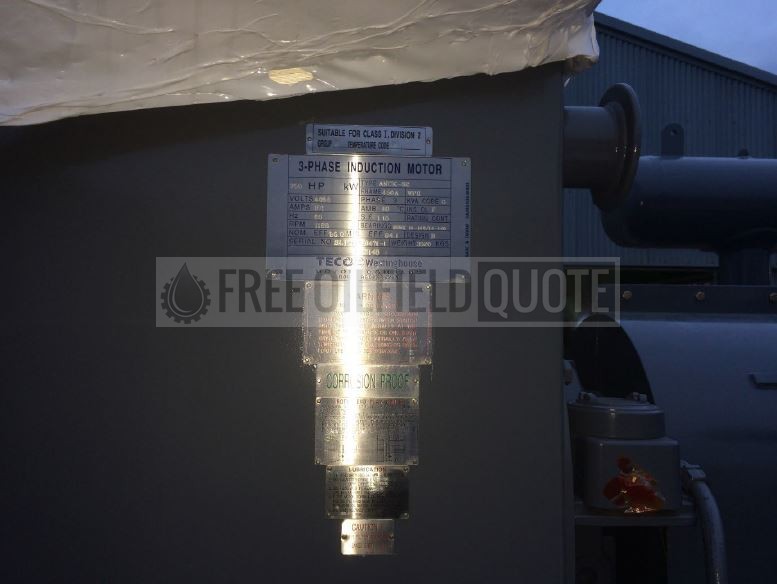

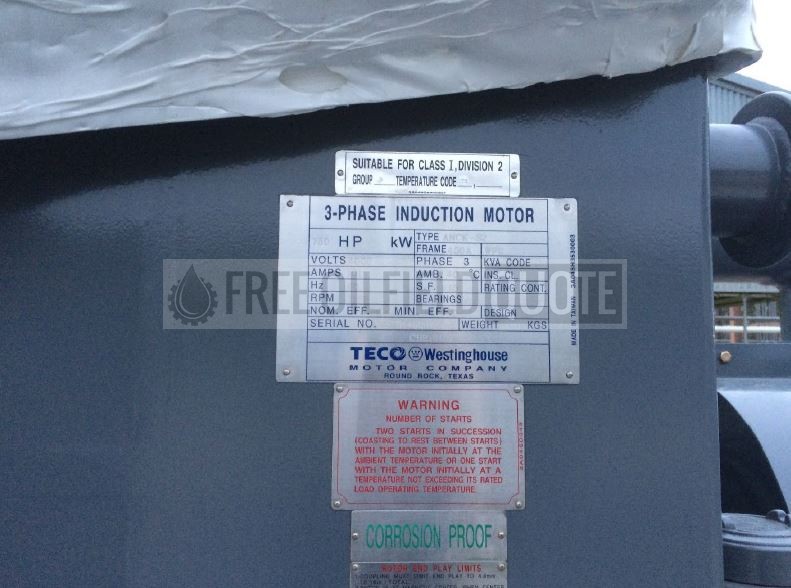

Teco Westinghouse Electric Motor

• HP: 750
• RPM: 1188
• Type: ANCK-52
• Frame: 460A
• Volts: 4,000
• Phase: 3
• Amps: 101
• Hz: 60
• SN: S2PD145204T1-1

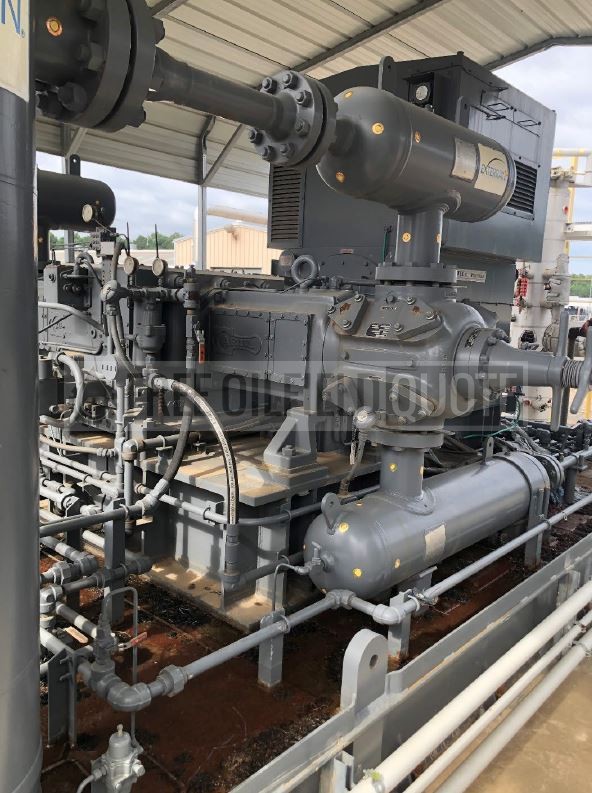

Ariel Cylinders

• Bore: 6.375in
• Stroke: 4.5in
• Class: ET
• RPM: 1500
• MAWP: 1650 PSIG
• SN: C-163830
• SN: C-163831
• Complete with VVCPs

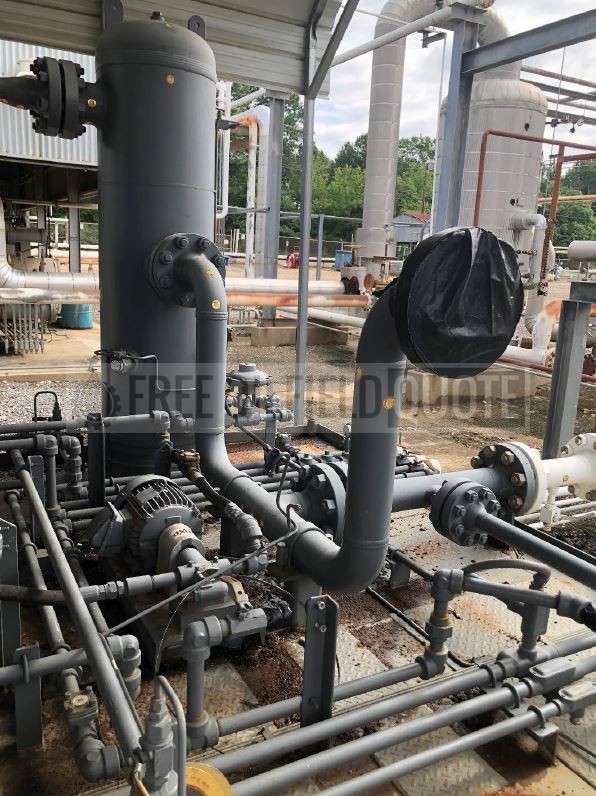

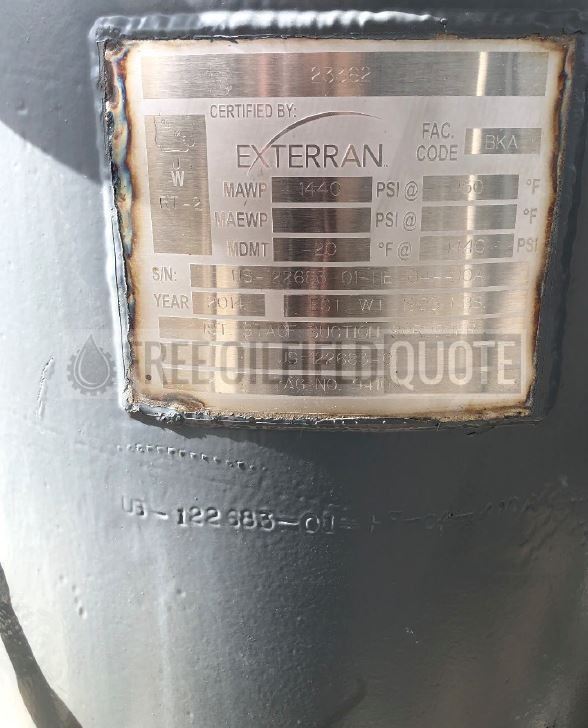

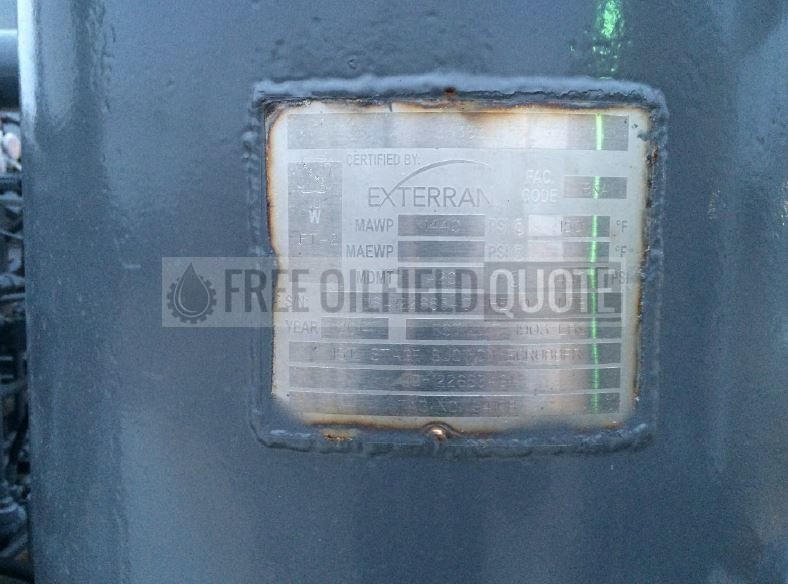

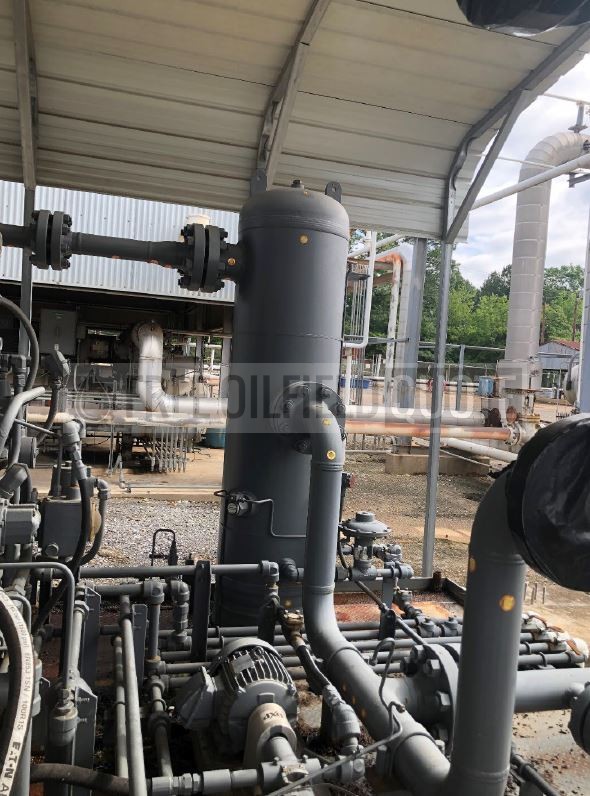

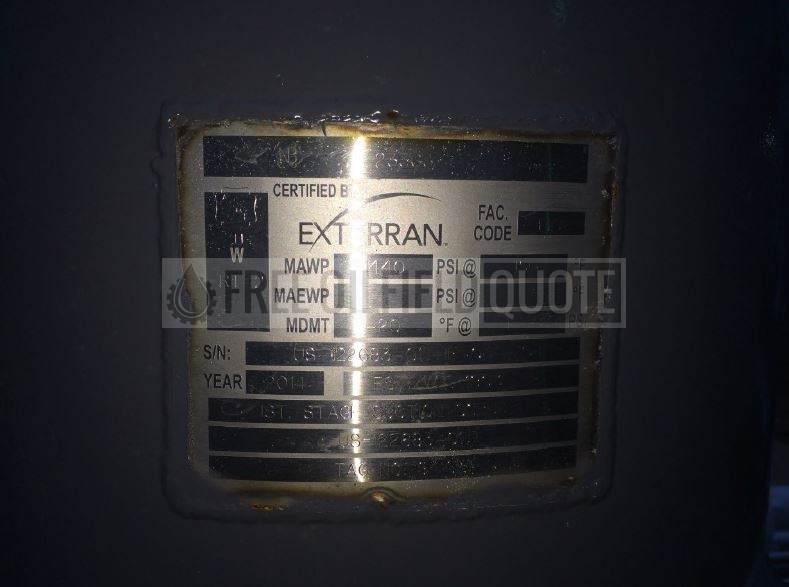

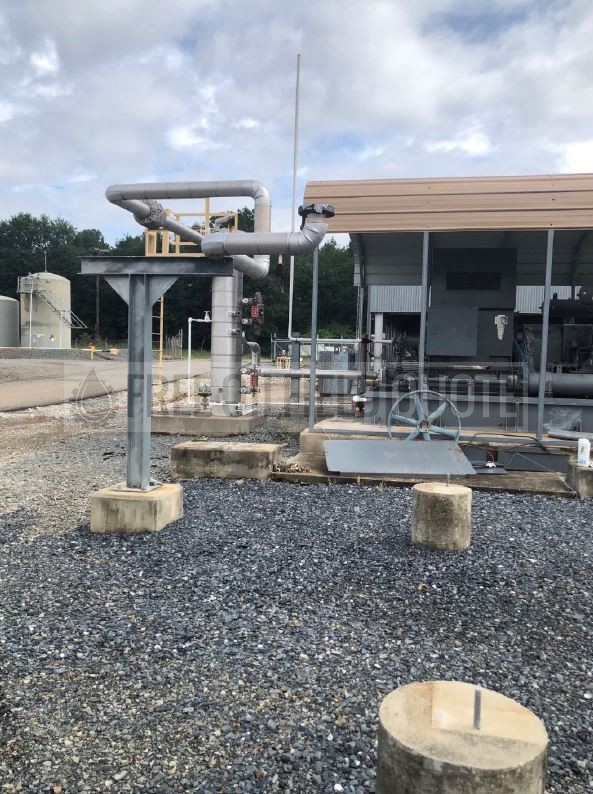

Exterran Scrubber Tag

• MAWP: 1440 PSI @ 150 Deg F
• MDMT: -20 Deg F @ 1440 PSI
• Year: 2014
• SN: US-122683 01-HE-01 410A

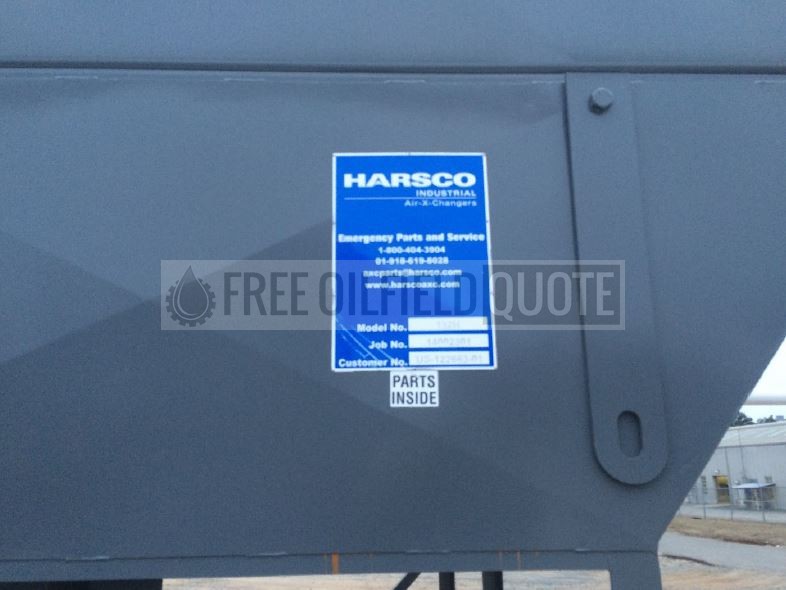

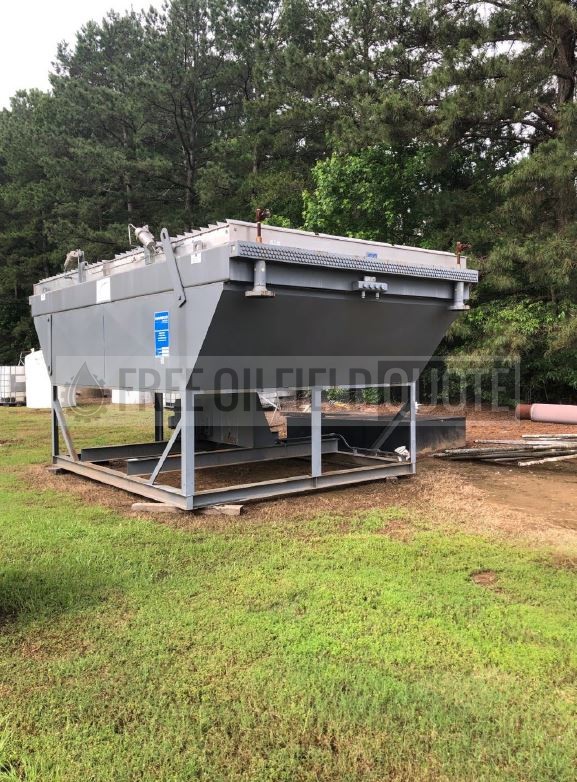

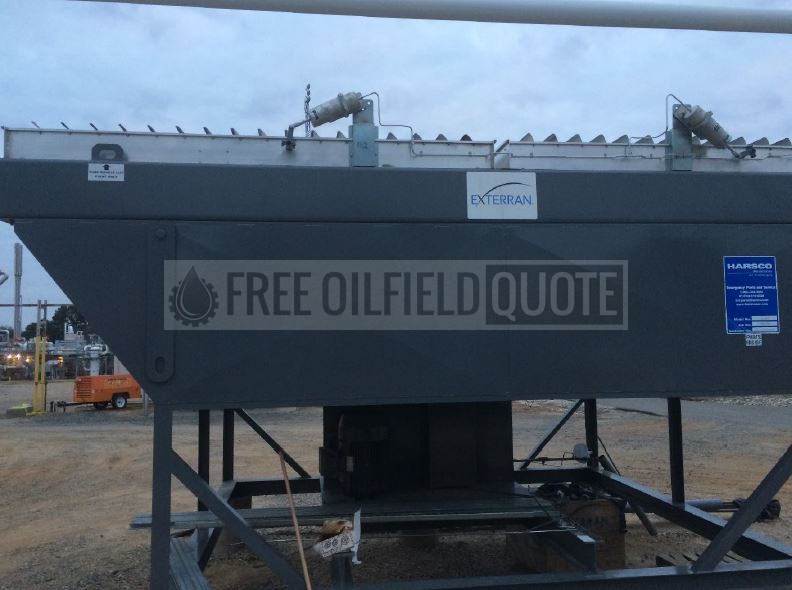

Harsco Air-X-Changer Cooler

• Model: 132H
• Job No.: 14002301.2
• Customer No.: US-122683-01
