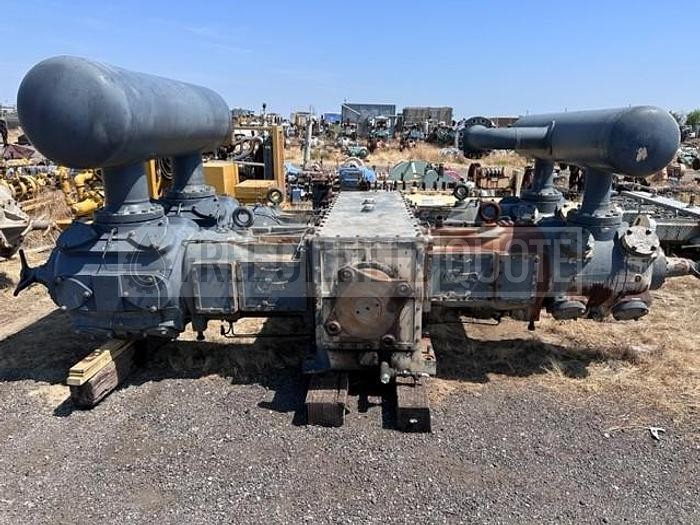

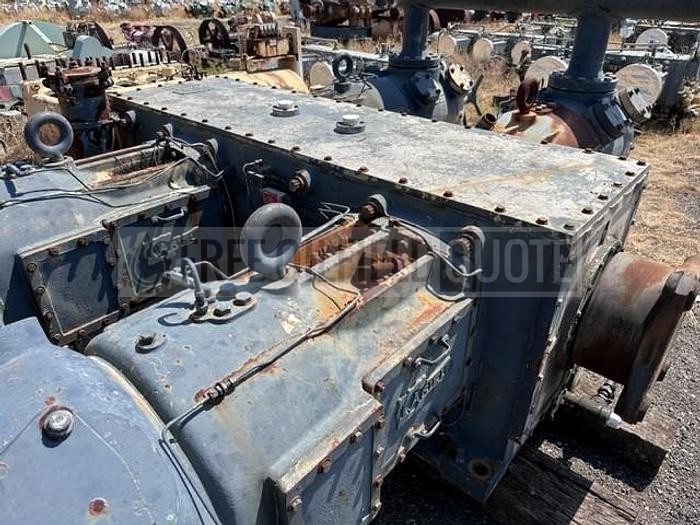

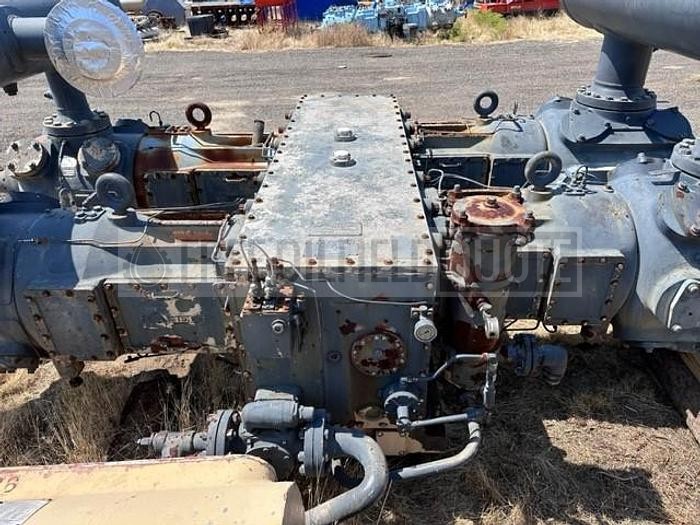

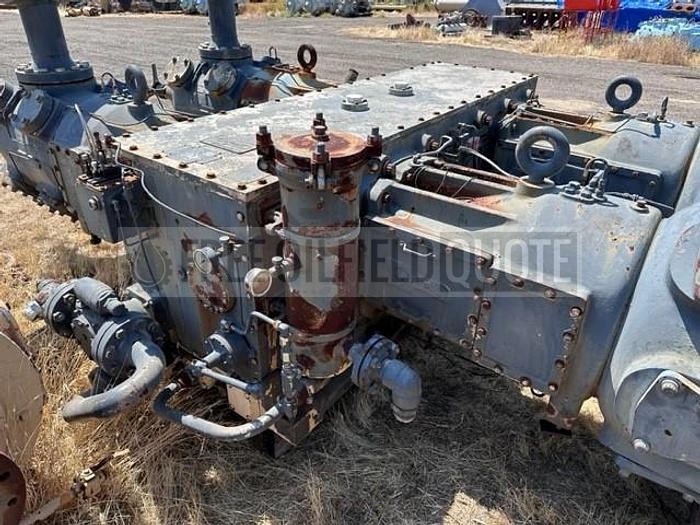

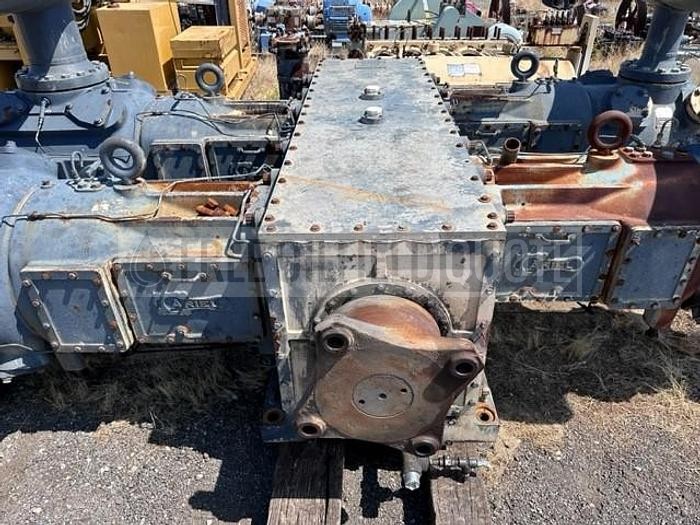

Ariel JGD-4 Compressor Frame

Manufacturer: Ariel

Model: JGD-4

Date of Manufacturing: June 1998

Type: Used

Condition: Good

Location: Bakersfield, CA

Ariel JGD-4 Compressor Frame Details

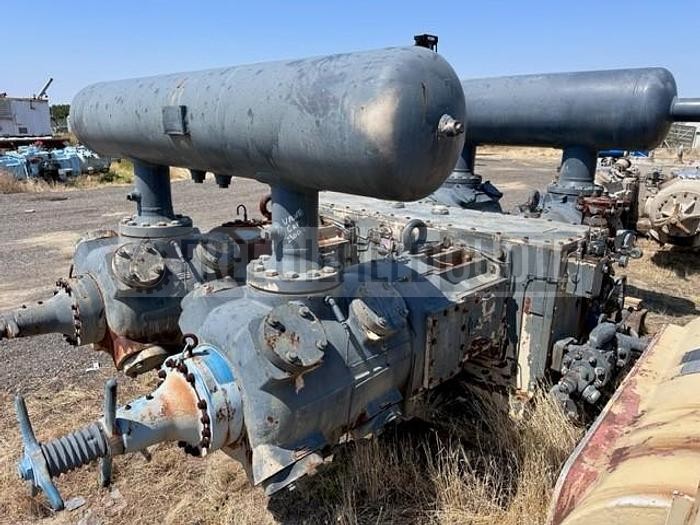

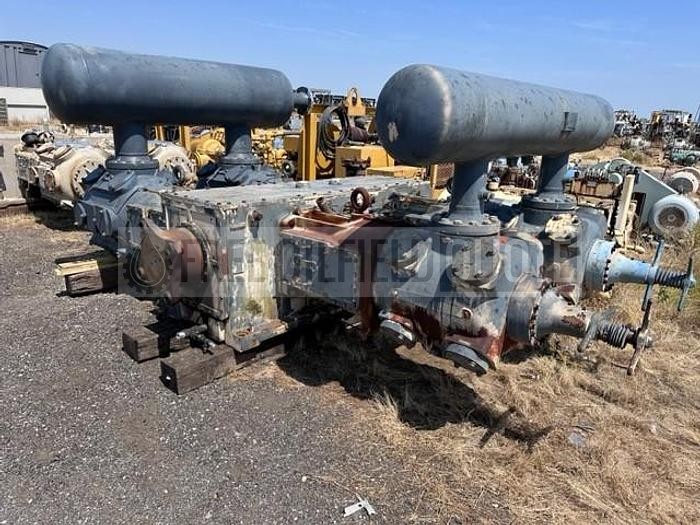

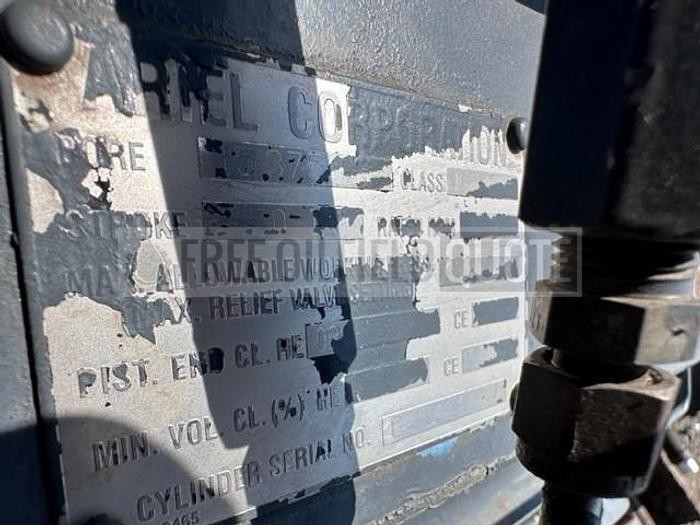

Ariel cylinders on the frame:

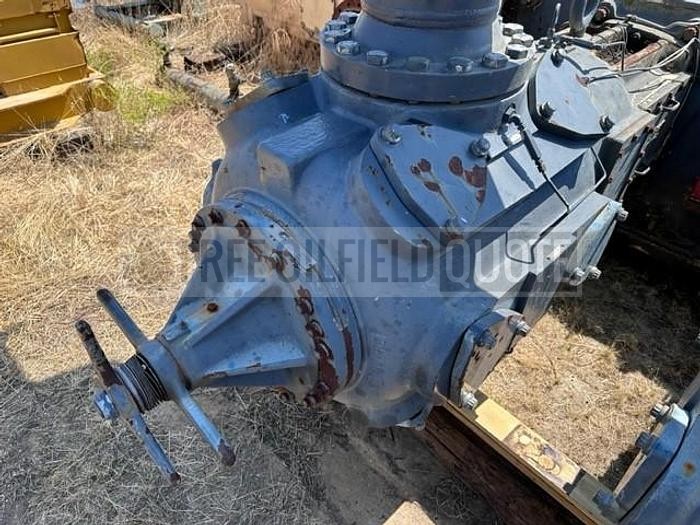

1st stage Ariel Cylinders

• Bore: 15.375in
• Stroke: 5.5in
• Class: JGD
• MAWP: 635

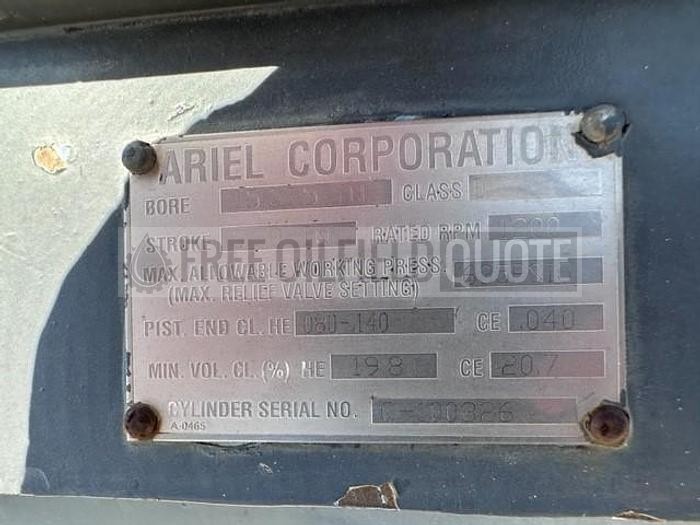

• SN: C-100326

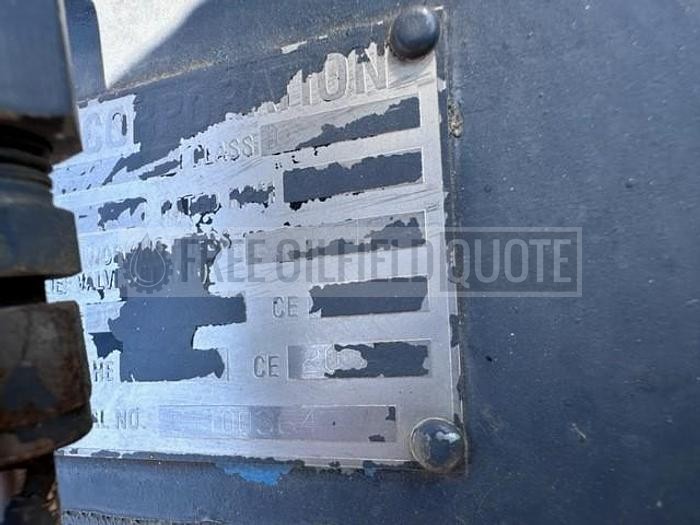

• SN: C-100364
• Complete with VVCPs

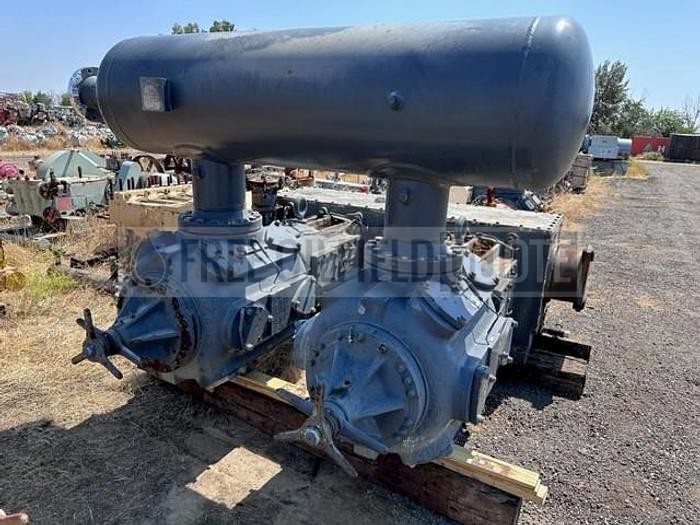

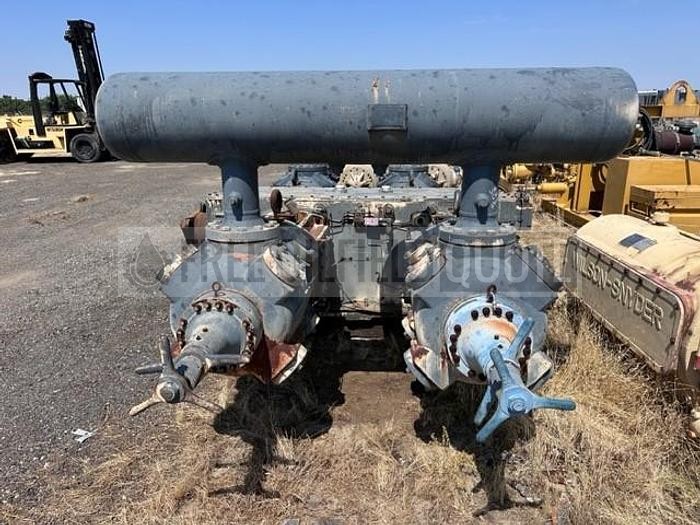

• Tandem suction pulsation bottle included

2nd stage Ariel Cylinders

• Bore: 9.625in
• Stroke: 5.5in
• Class: JGD (have been converted from C to D)
• MAWP: 1270
• SN: C-23077
• SN: C-23977
• Complete with VVCP
• Tandem suction pulsation bottle included

Also included:

• Cat G3606/ G3608 Air Cleaner Box
• Cat G3600 series hot start
• Cat G3600 series engine fuel gas filter (PECO)
• Ariel JGD-4 frame oil cooler
• Scrubber 7ft x 42in OD, 500 psig MAWP
• Scrubber 7ft x 36in OD, 700 psig MAWP

Specifications

• Serial Number: F-13209
• Stock Number: CS-0020092
• RPM: 1200
• Rod Load: 114,000 lbs
• Class: JGD
• SN: F-13209
• Stroke: 5.5in
