72"x 20' 75lb Vertical Heater Treater (40806568) Products

Name	72"x 20' 75lb Vertical Heater Treater
Code	40806568
Type	Standard
Brand	LIDE IND
Category	Vessels
subcategory	Heater Treater - Vertical - 4 X 20
Price	Call for Price
Unit
In Stock	No
Location	Weatherford, Oklahoma
Short Description	*THIS ITEM HAS BEEN SOLD - FOR OTHER OPTIONS PLEASE CALL 844-475-2060 OR CLICK THE ICON BELOW FOR INSTANT CHAT!

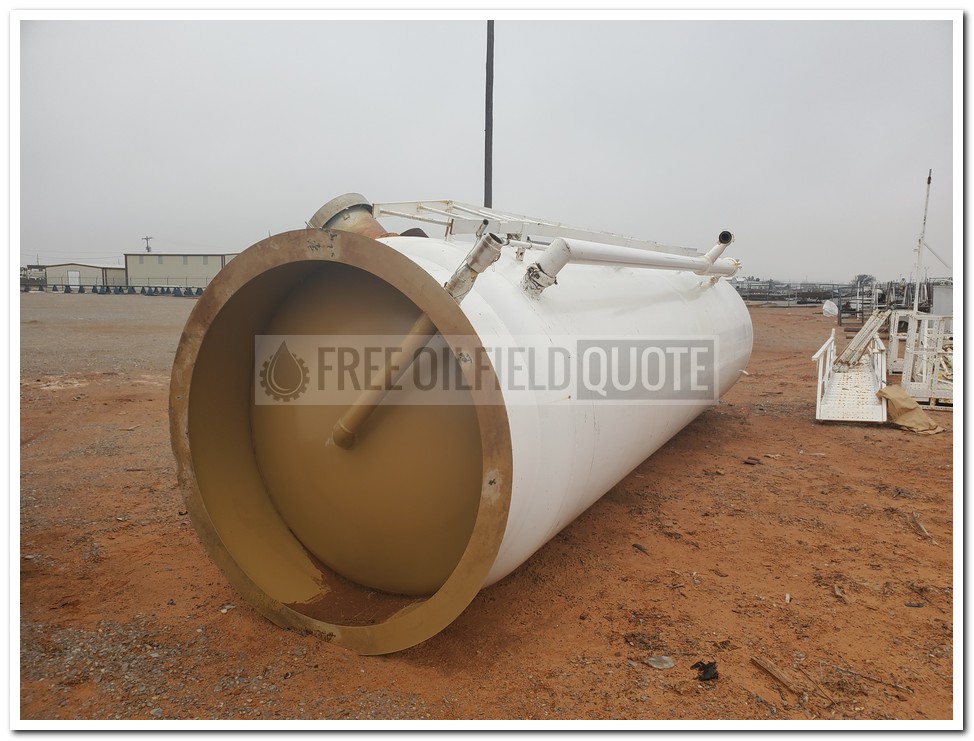

72"x 20' 75# Vertical Heater Treater

Price: Call for Price
Location: Weatherford, Oklahoma

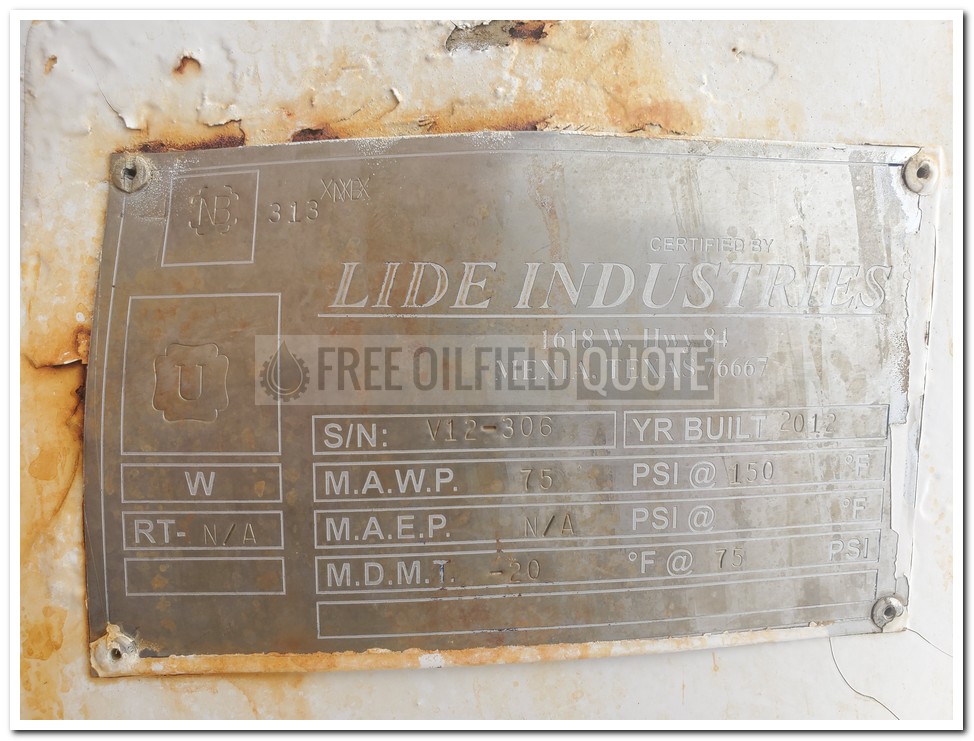

Manufacturer: LIDE INDUSTRIES
Year: 2012
Serial Number: V12-306
Condition: Good
Type: Used

Vertical Heater Treater breaks emulsions in crude oil using heat and retention time. Vertical Heater Treater efficiently helps remove water and emulsion from crude oil well streams, so you can keep your production flowing. Once the oil emerges from the treatment process, it is ready for further processing or pipeline delivery. The well stream first enters the emulsion inlet near the top of the unit and is diverted against the treater shell. Gas separates from the liquids, ascends and exits the unit. Warm vapor from the lower section flows up to the gas separation section and mixes with the cool inlet stream. Heavier components in the gas condense and descend. The oil, water, and emulsion liquids that descend are collected beneath the firebox. Free water separates from the oil and discharges from the bottom section through the adjustable external siphon

The spreader breaks up the remaining oil and emulsion and the remaining water is discharged with the free water. Treated oil flows through the heat-retaining baffle above the fire tube, exits through the oil outlet at the top of the settling section, and is conveyed to a storage tank.

The oil and emulsion rises over the heater fire-tubes to a coalescing section where sufficient retention time is provided to allow the small water particles in the oil continuous phase to coalesce and settle to the bottom. Treated oil flows out the oil outlet. Any gas, flashed from the oil due to heating, flows through the equalizing line to the gas space above. Oil level is maintained by pneumatic or lever operated dump valves. Oil water interface is controlled by an interface controller, or an adjustable external water leg. The detailed design of the vertical heater treater, including the design of internals (many features of which are patented) should be the responsibility of the equipment supplier.

A heater treater is simply a separator that is designed to separate primarily oil from water. Heating of the mixture normally speeds up and improves the separation process.

72"x 20' 75# Vertical Heater Treater Benefits

Performance: Help boost production and reduce downtime with our proven pre engineered design Latest ASME design and construction standards help ensure high performance

Availability: Units are typically in stock and ready for delivery Prompt, professional service, support and spare parts from local technicians in or near every major oil & gas producing region in the U.S. and numerous areas around the world

72"x 20' 75# Vertical Heater Treater Features

Removable firetube and stack

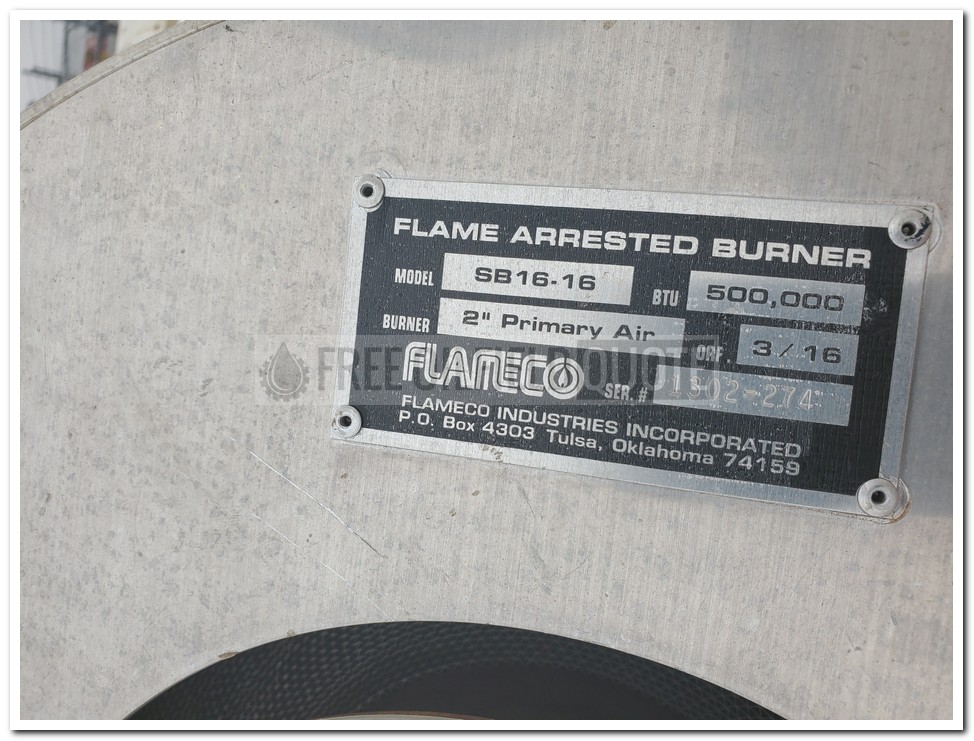

High-efficiency burner and pilot assembly
Temperature controller
Liquid gauge assemblies
Pressure gauge with isolating valve
Relief valve
Gas back-pressure valve
Equalizer tubing and fittings
External adjustable water siphon with stainless steel weir pipe
Oil and water dump valves

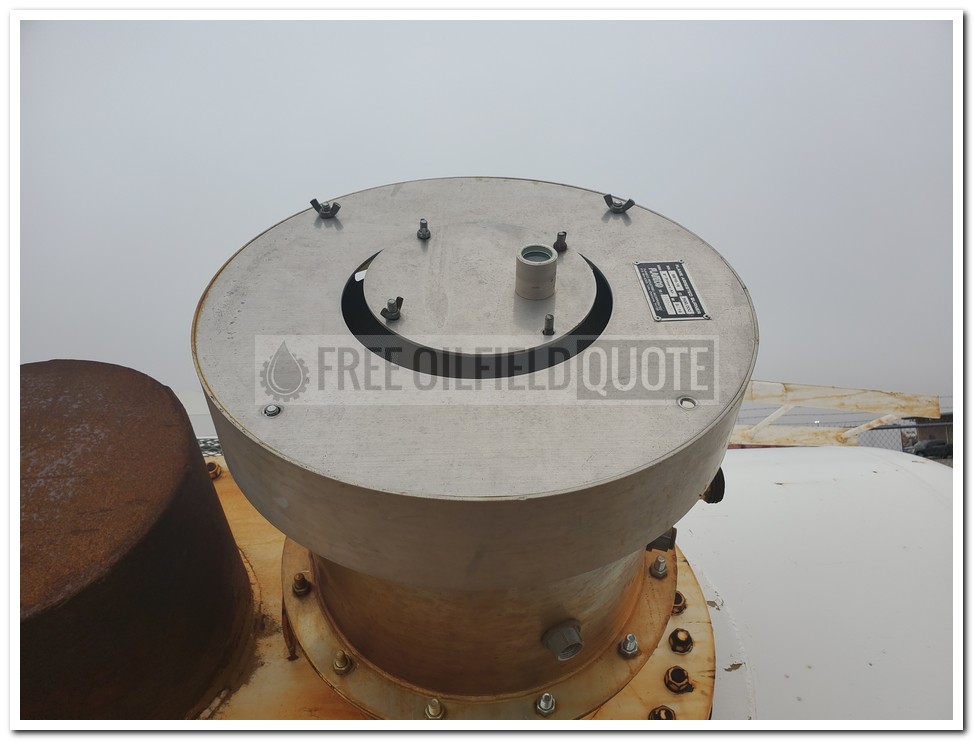

Flame arrestor
Fuel gas scrubber with high-level shutoff and drain
Fuel gas regulator
Heat retaining baffle
18 inch manway
Ladder

72"x 20' 75# Vertical Heater Treater Options

High temperature thermostat shutdown
Internal anti-corrosive coating
Burner safety low (BSL)/igniter
High level shutdown
Stack arrestor
Igniter
External piping
Caged ladder
Sour gas service built to the NACE standard

Loading and Delivery Available for 72" x 20' 75# Vertical Heater Treater, we can deliver anywhere in the United States!

Important Buyers Notice: All items are old "As-Is" with "No Warranty" expressed or implied. Items offered for sale may be damaged, inoperable and/or missing parts. You are strongly urged to carefully review each photo and video as well as personally inspect the item before making a decision to purchase. Free Oilfield Quote is not responsible for any missing or damaged equipment, part, item or accessory and shall not be held liable for any damage prior to or during the removal and/or delivery of the equipment. Any and all agreements contrary to the above disclaimer must be in writing and agreed upon up front and prior to any transaction.

Payment: Payment in full is required within 3 days of the invoice date. Acceptable payments: Wire Transfer, Cashiers Check.
Loading Requirements: Purchaser is responsible for all loadout expenses (cranes, man-lifts, sky tracks, operators, riggers etc.) including shipping and logistics and shall contract and pay any associated costs directly with contractors.
Safety Requirements: Safety Glasses, Hard Hats, Steel Tip Boots Required on all Free Oilfield Quote loadout locations.
Warranty Information: This Item is being sold AS IS-WHERE IS with “No Warranty” expressed or implied.
Removal Policy: Items must be removed 10 days after the invoice is generated unless otherwise agreed to in writing . Unclaimed items beyond the removal deadline are subject to additional fees and/or forfeiture.
Removal Deadline: 10 days after the invoice is generated.

Buyer Requirements for 72"x 20' 75# Vertical Heater Treater

Buyers are required to examine all items prior to removing them from the location. If the item differs significantly from how it was represented in the lot description, the Buyer must contact Customer Care prior to removing.
Buyer must schedule an appointment with the yard prior to removal.
The Buyer is required to remove all purchased items from the seller's location by the removal deadline. Failure to do so may result in the buyer being assessed fees in the amount of $50.00 per day by the Seller and/or the Company. Any storage fees owed must be paid directly by the buyer and are the buyer’s sole responsibility.

This Item is being sold AS IS WHERE IS. There is no customs, export, or import assistance is available from our Company, the Seller, or the Storage Location. Our Company, Seller, and Storage Location expressly disclaim the appropriateness of this item to be exported from, or imported to, any country. Shipping, logistics, transportation, loading, customs, export, and import activities, and all associated costs, are the sole responsibility of the Buyer.
