5.7MW NIIGATA 18V22AG 2880kW 60Hz 6.6K Gas Engine Power Plant

Manufacturer: Niigata
Model: 18V22AG
Type: Used
Location: South Korea

5.7MW NIIGATA 18V22AG 2880kW 60Hz 6.6K Gas Engine Power Plant Details

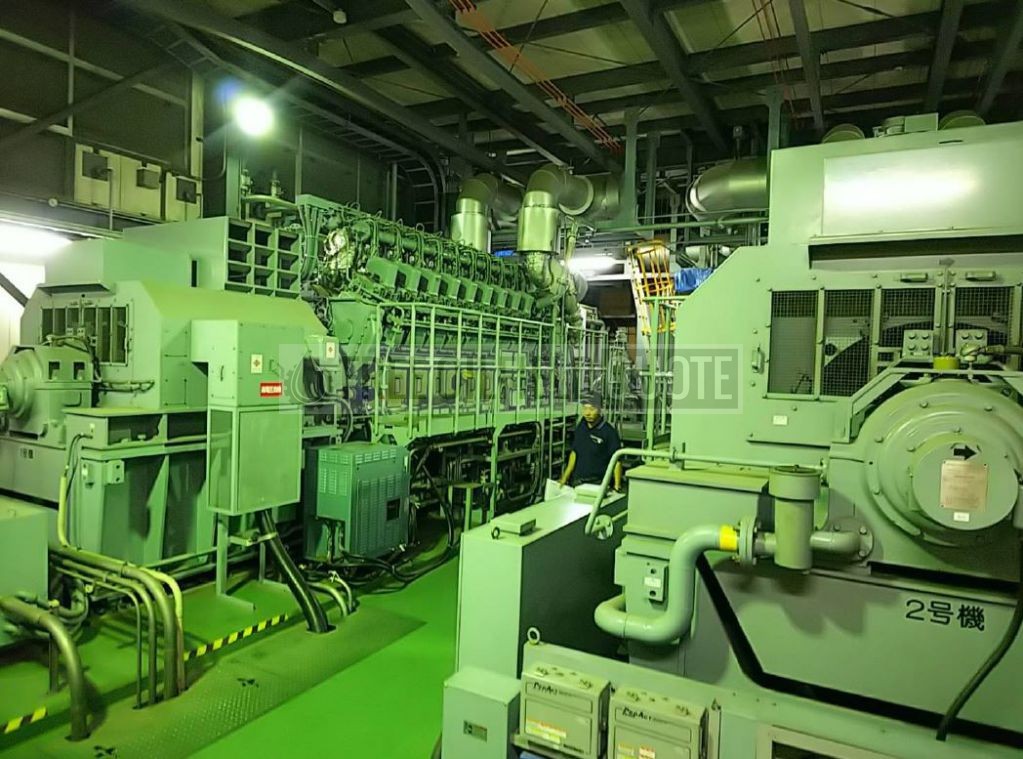

NIIGATA says that 18V22AG has a high electric thermal efficiency of 40% or more and the 22AG engine produced 30% higher power than a conventional spark ignition gas engine with the micro-pilot compression ignition system. Produced in 2004 , this generating sets had been successfully operated about 32,000 hours and had a good condition as seen in the photos and the plant was dismantled and has been well preserved in our factory and ready for immediate delivery.

Main Specifications:

• Engine Model: 18V22AG x 2 sets
• Maker: NIIGATA
• Continuous Output: 2880 kWe x 900 rpm
• Frequency & Voltage: 60Hz & 6600V
• Year of Production: 2005
• Running Hours: abt. 32,000 hours
• Fuel Oil: Natural Gas
• Plant Auxiliary Equipment: 1 set

Gas Engine

• Maker: NIIGATA
• Model: 18V22AG
• Year of Production: 2004 (operated from 2005)
• Output: 2969 kW
• Speed: 900rpm
• Fuel Oil: Natural Gas

Generator

• Maker: Nishishiba (made in Japan)
• Model: NTAKL-SE
• Quantity: 2 sets
• Year of Production: 2004
• Output: 2,880kW
• Speed: 900rpm
• Phase: 3
• Wire: 6
• Frequency: 60Hz
• Voltage: 6600V

Scope of Supply for Others

• Monitoring and Control Panel: 1 set
• Auxiliary Equipment: 1 set
• Technical Document & Manual: 1 set

Plant History and Current Status

• Total Running Hours: No.1: 31 268 & No.2: 31 353 (Feb, 2019)
• Engine Operating Stop On Jan, 2020
