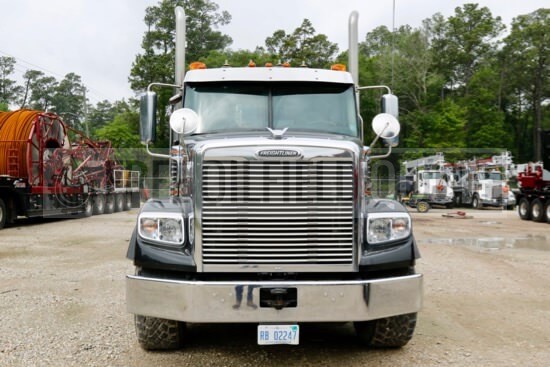

2014 Freightliner Single Tridem Tractor with 2 inch Coiled Tubing Unit Trailer

Location: Texas

Type: Used

Condition: Excellent

2014 Freightliner Single Tridem Tractor with 2 inch Coiled Tubing Unit Trailer For Sale

Miles: 16,935

Hours: 4,100

Generator: 3,161

Tractor Information:

• 122 inch BBC Aluminum Cab
• Signature Interior Trim
• Detroit DD16 560hp-1850 LB/FT Engine
• Allison 4500RDS Automatic Transmission
• Meritor 20K Front Suspension
• Hendrickson Primaxx 69K rated Rear Suspension
• Wide Track Rear Axles 69K Rated Grouping
• 445-60-R22.5 Super Single Drive Tires
• 425-60-R22.5 Super Single Steer Tires
• Polished Aluminum Wheels
• 261 inch Wheelbase
• Holland FW35 36 inch Air Slide 5th Wheel
• Dual 150-Gallon Fuel Tanks
• Current FHWA Certification

Trailer-Mounted Coiled-Tubing Unit:

• Hydraulic Wet Kit
• Trailer
• Coil Tubing Reel
• Control Cabin
• Hose Reels and Hoses
• Injector Tilt for HR 680
• Unitization and Completion

Reel Assembly:

Installed on this unit will be a drop in type coil tubing reel with the following basic dimensions

• Flange diameter 156 inch
• Core diameter 80 inch
• Flange internal width 78 inch

This reel will be capable of carrying approximately the following capacity with 2 inch freeboard

• 2 inch diameter tubing – 21,300 ft.

Injector:

The Hydra Rig Model HR-680 is designed for handling Coiled Tubing sizes from 1-1/4 inch OD through 3-1/2 inch OD. It is designed for operation with both open loop and closed loop hydraulic systems. Pull capacities are as follows:

• 80,000 Lbs. continuous pull capacity @ 4600 PSI Maximum Speed 200 Feet Per Minute. Snubbing Capacity is 40,000 Lbs.
• All structures and ancillary systems are designed to the 80,000 lb. tubing load limit, plus gross weight of injector (12,500 Lbs.).
