2012 Service King 1000 HP Trailer-Mounted Drilling Rig

Manufacturer: Service King
Model: 1000 HP
Year of Manufacture: 2012
Type: Used
Location: Oklahoma

2012 Service King 1000 HP Trailer-Mounted Drilling Rig Details

• (4) Sheave McKissick, 1.25in
• Date: 1/2012
• SHL: 450,000#
• S/N: DK504
• Cluster Model: 744-1, 1 1/8in Line, 36in Sheaves
• Fast Line Model: 741-1, 1 1/8in Line, 42in, 40 Tons
• Sand Line Model: 741-1, 1.12in Line, 30in Sheave, 40 Tons
• Dead Line Anchor Model: 741-1, 1 1/8in Line, 30in Sheave

Carrier:

• (5) Axel / Trailer Mount, Model 1000
• SK#: 395T
• Gross Weight: 177,900 lbs
• Date: 3/2012
• VIN: 1S90TDD85CL976333
• (1) Electric Drive Hydraulic Pump
• (2) Oil Saver Hydraulic Filters

Engines:

• Engine #1: Detroit 2010 Model, 14.0 Litre, Allison Transmission, S/N: 06R1049132
• Engine #2: Detroit 2010 Model, 14.0 Litre, Allison Transmission, S/N: 06R1049335
• (1) Hydraulic Tank – 350 Gallons

Draw works:

• Model: 46 x 10, S/N: DW 2387
• Transmission Model: 1000, S/N: 5962350, S/N: 5962688
• Power Drive Gear Box: 2.47 x 1
• Dual Actuated Air Band Brake, Hydraulic Drum Brake, Air Actuated Crown Saver
• (2) Hydraulic Cat Heads – Make Brake, (1) Drillers Console

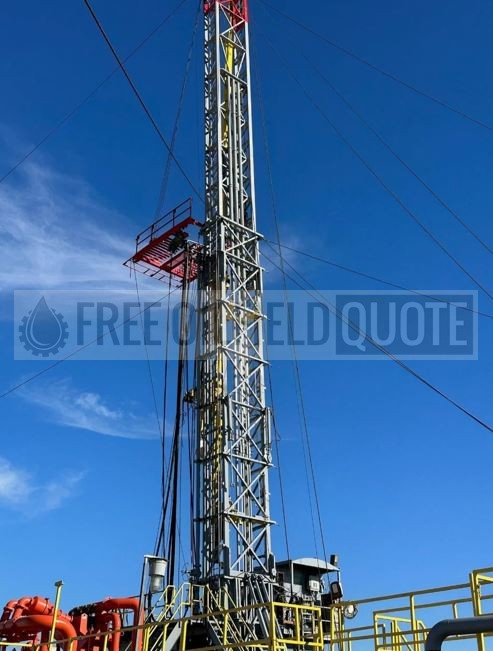

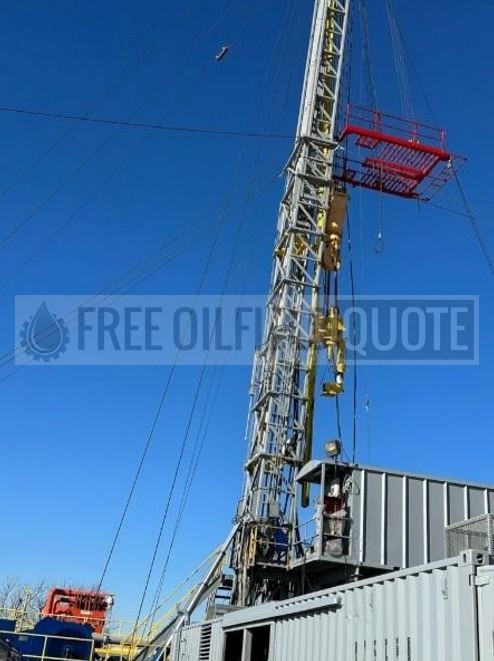

Mast:

• Model: 117ft, SHL 450,000#, S/N: DK 504
• (2) Hydraulic Raising Cylinders
• Built-in Top Drive Torque Track, Kelly Hose, Stand Pipe 5000 PSI with 5000 PSI Type D MSF Mud Gauge S/N: 41814
• (2) 5000 PSI Oteco Shut Off Valves
• Finger Board – (22) Fingers
• (1) Sentry Block / Hook Combo Model SI-BH-250, 36in Sheave Size Line 1.25in, S/N: 07054, Date: 2007
• (2) Air Hoist Lines
• Fully Rigged for Safety Cable

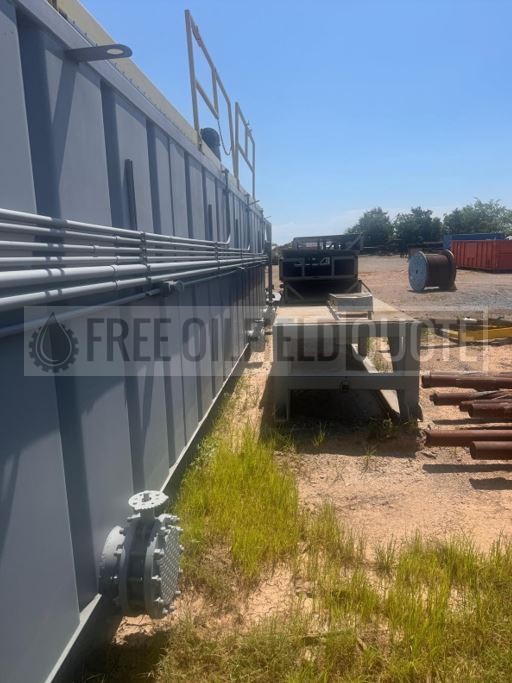

Mud Pits:

• (2) Pit System – 950 BBL
• Shaker Pit: (2) Compartments, (2) Swaco Mongoose Shakers, S/N: PF 2664, S/N: PF 2663
• (1) Mongoose Mud Cleaner with Desander Model: 2-12, S/N: 21963, S/N: 4500732 / Desilter, Model: 6T4, S/N: 23043

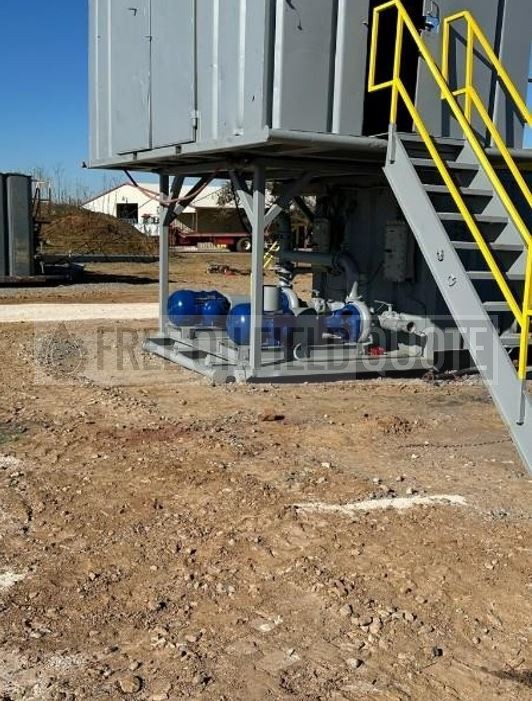

• (1) 5 Star 6 x 5 x 14 Cent Pump p/b 50 HP Electric motor
• Suction Pit: Full Set of Pit Lights, (2) Caustic Barrels, (4) 10 HP Agitators (4) Compartments
• (2) Prime Mud Movers – Mission Magnum 6 x 5 x 14 ea p/b 50 HP electric motors

Water Tank:

• 500 BBL
• (2) 25HP Mission Water Transfer Pumps x 4RS
• (2) Compartment Chemical Pit

Gas Buster:

• Swaco, Model: 2011, 4ft x 10ft, 6in Outlets, 6in Inlets, S/N: MGS-M-118 Skidded

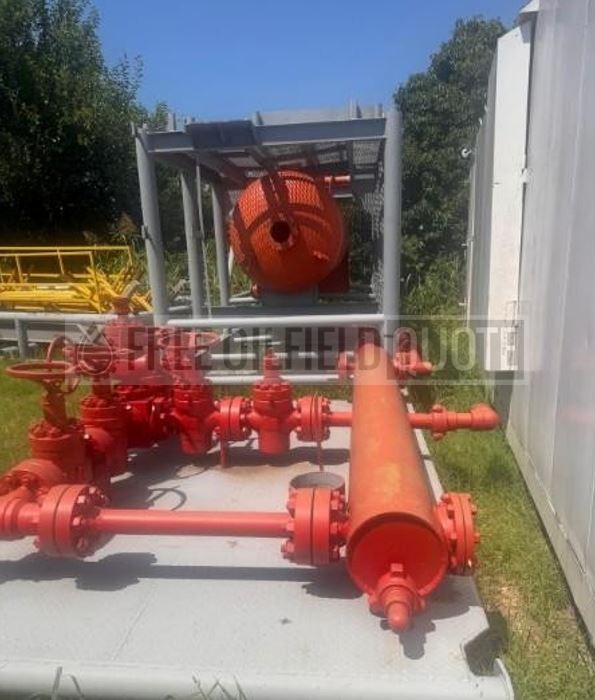

Choke Manifold:

• (6) 4 x 5M, MGV – HECI
• (1) 2 x 5M, MGV – HECI
• (1) 2 x 5M Manual Choke – HECI, 3 Way Watermelon

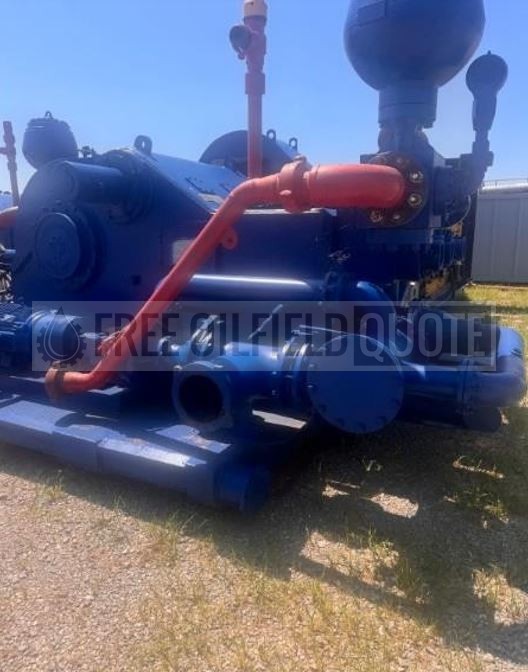

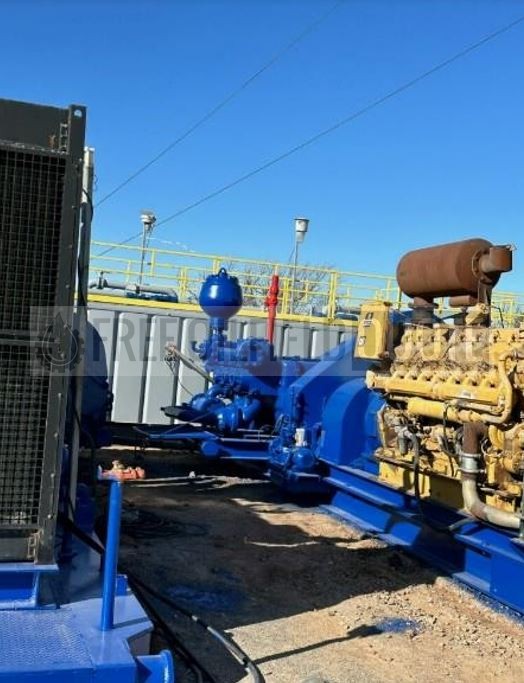

Mud Pumps:

• Mud Pump #1: Gardner Denver PZ10 Mud Pump
• Mud Pump #2: Gardner Denver PZ10 Mud Pump

Top Dog House:

• (1) Top Dog House with Tools
• (4) Sets of Pit Stairs
• (1) Hydraulic Accumulator Suit Case

Top Drive:

• Venture Tech 250 T with (1) Top Drive Service Loop
• (1) Bottom Half for Top Drive Torque Track
• Hydraulic Top Drive House powered by (2) Detroit 60 Series (14.0 Litre)
• “Dan Vossin Hydraulic Drive Pump System – (2) Pumps each with (4) Outlets

Miscellaneous Equipment:

• Junk Basket, Floor Hand Rails, Flow Line Skid with hoses
• (1) 4ft x 20ft V Door

Accumulator:

• Advanced Pressure Inc., (12) Bottles, 5 Station, 3000PSI System, S/N: 11871
• (2) 55 to 1 Air Pumps
• (8) Steel Flex Accumulator Lines
• (1) Pressure Washer
• Power Swivel, Venture Tech, Model: XK 250 Ton

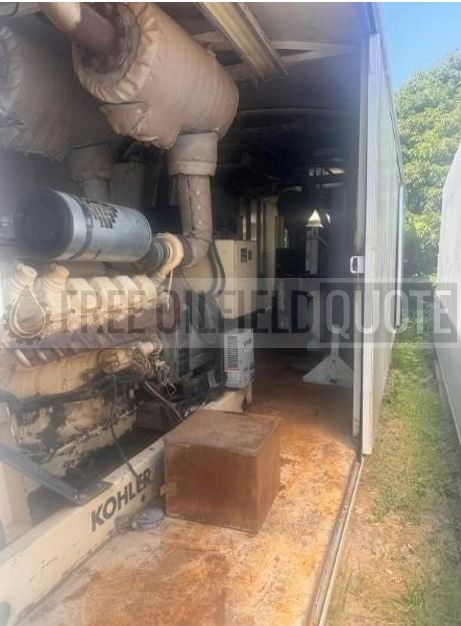

Generator House:

• Genset #1: Engine: 12V 2000, Generator: Kohler – 450KW, Model: Power Systems 600
• Genset #2: Engine: 12V 2000, Generator: Kohler – 450KW, Model: Power Systems 600
• (1) Screw Compressor – Gardner Denver, Electra Saver, Model: EBE 990, S/N: S334319

Mud Boat:

• Main Section: 60ft Long x 10ft Wide (4) 12in Beams
• Extension: 17ft 3in Long x 11ft Wide

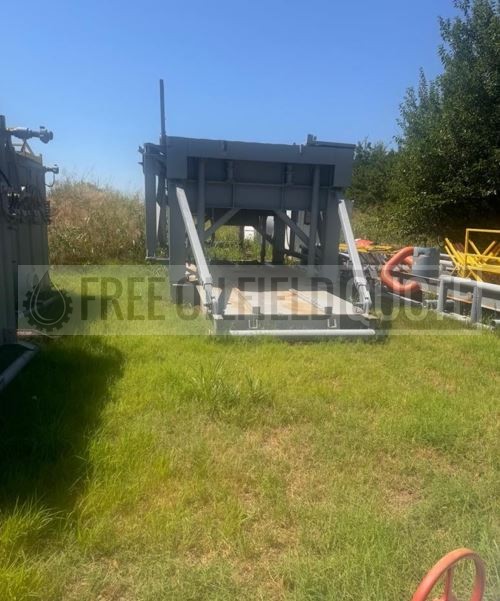

Substructure:

• 35ft Long x 11ft Wide

Rotary Table:

• Sentry – 20.5in, Date: 2007, S/N: 074102

Additional Equipment:

• (1) Rotary Angle Gear Box
• (1) 40ft Parts House with Divider
• (1) Wire Line 15,000 x .092 – Five Star
• Cat 4 Cert done 2 years ago
