Location: Hobbs, New Mexico

Type (new/used/surplus): Used

Condition: Good

Operational (yes/no): Yes

Year: 1986

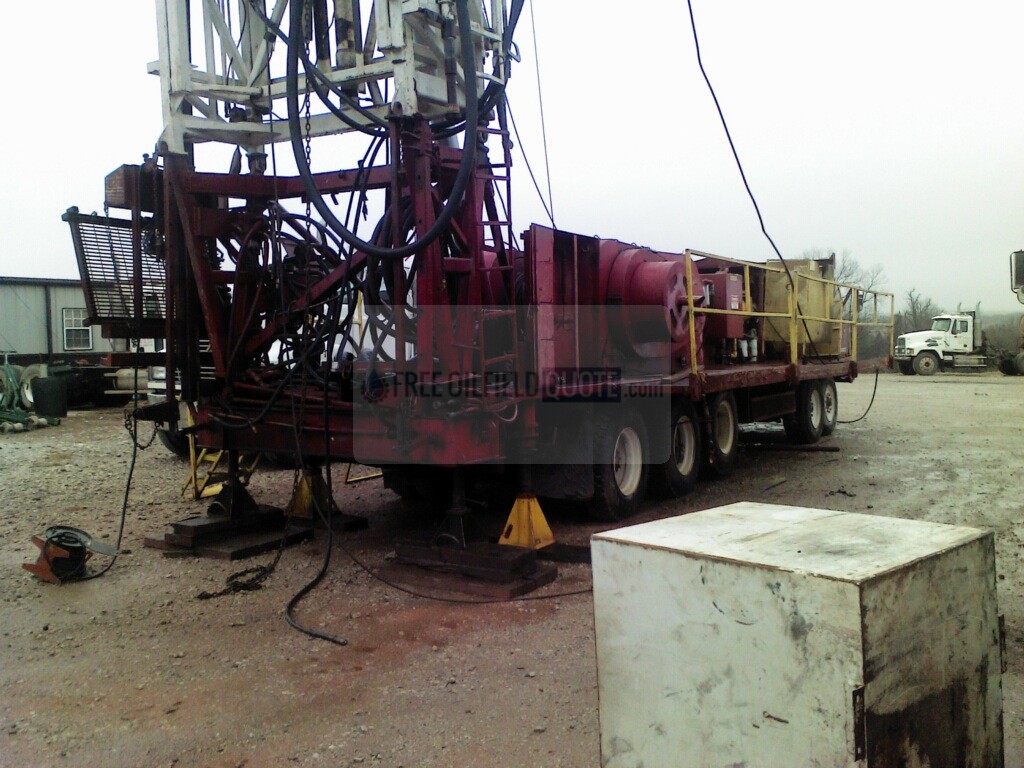

              DRAWWORKS

Make: Corsair

Model: Corsair 250

Single Line Pull : 56,400 lbs.

Hoisting Drum Information

Main Barrel Dimensions : 18.75 in. x 36.375 in.

Wire Line Size: 1 in.

Wire Line: 675 ft.

Drum Clutch: 24 in. 3-Plate

Gearing: 6 Forward / 1 Reverse

Drive Chain: Double 160

Brake System: Parmac 202 / 42 x 12 Blocks

Brake Cooling: Spray Water

Sand Drum Information

Sand Drum Diameter: 12.75 in.

Standard Sand Line Size: 9/16 in.

Sand Line (included): 16,000 ft.

Drive Chain: Single 140

Brake System: 42 x 8 Blocks

Brake Cooling: Spray Water

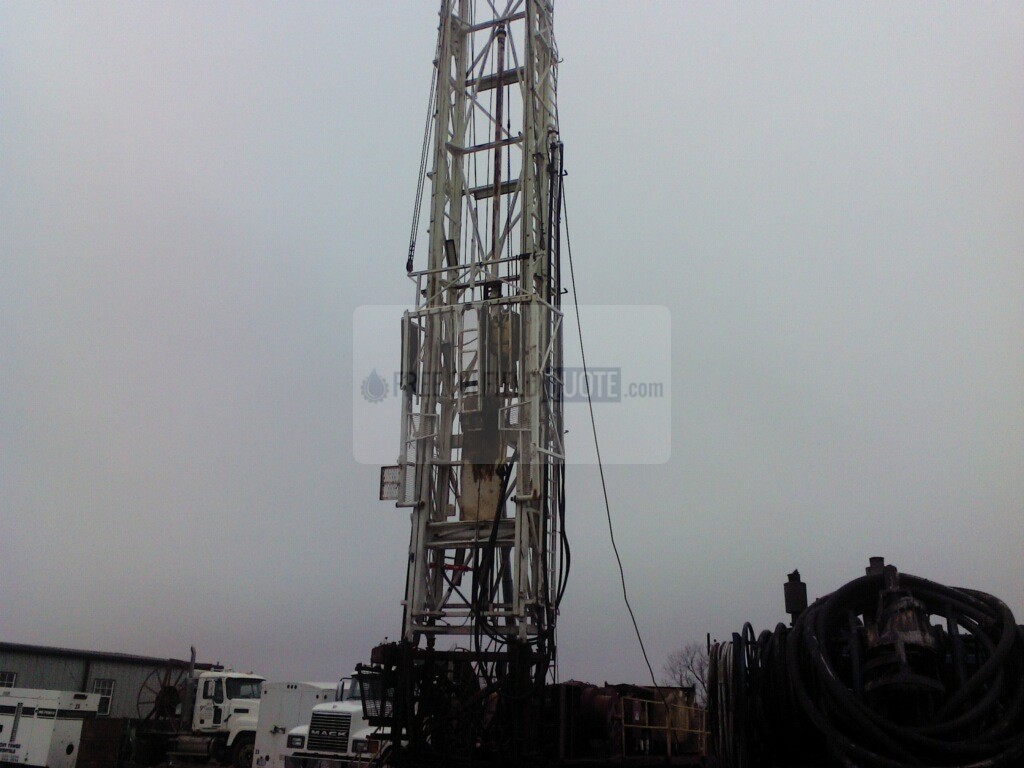

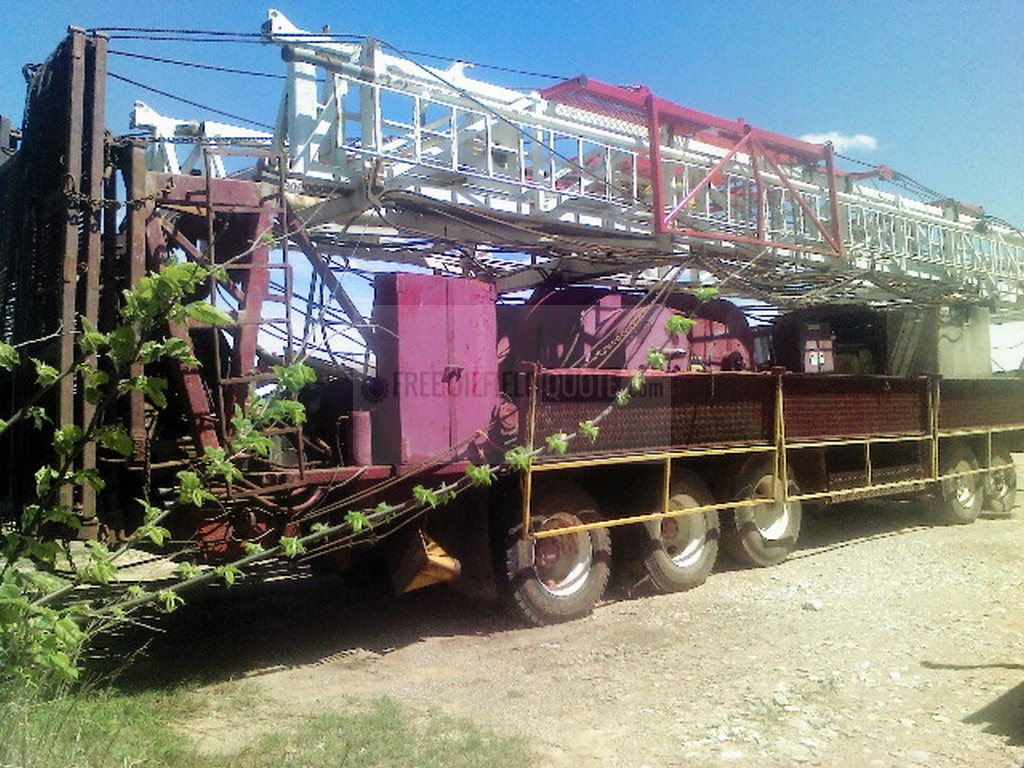

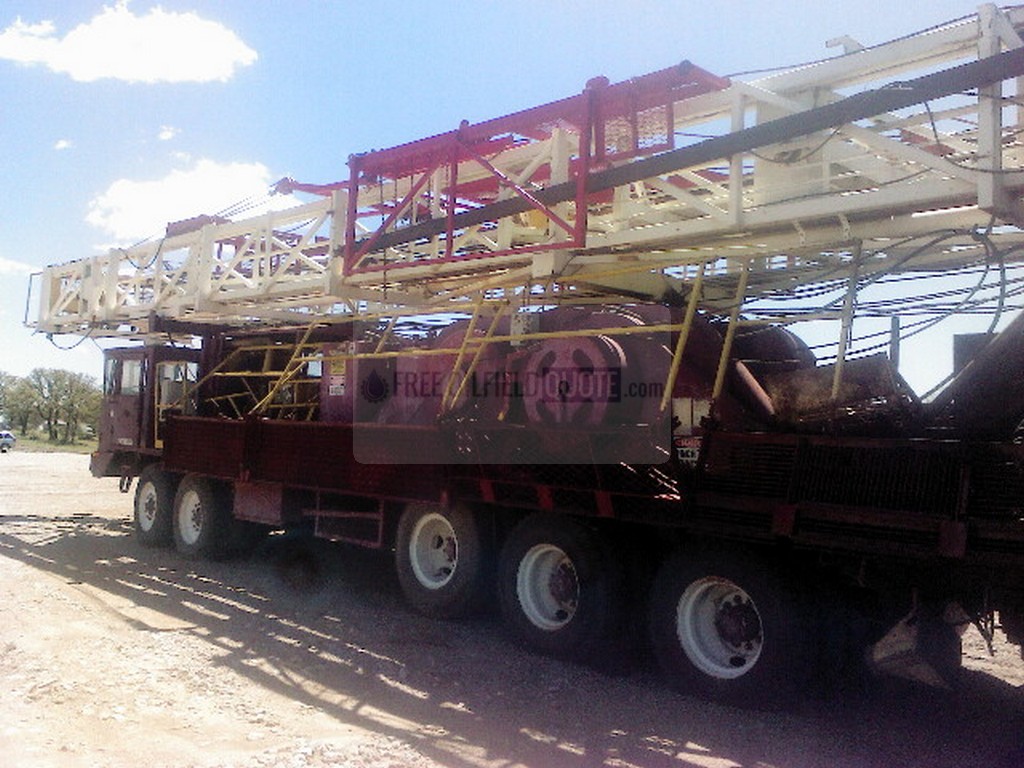

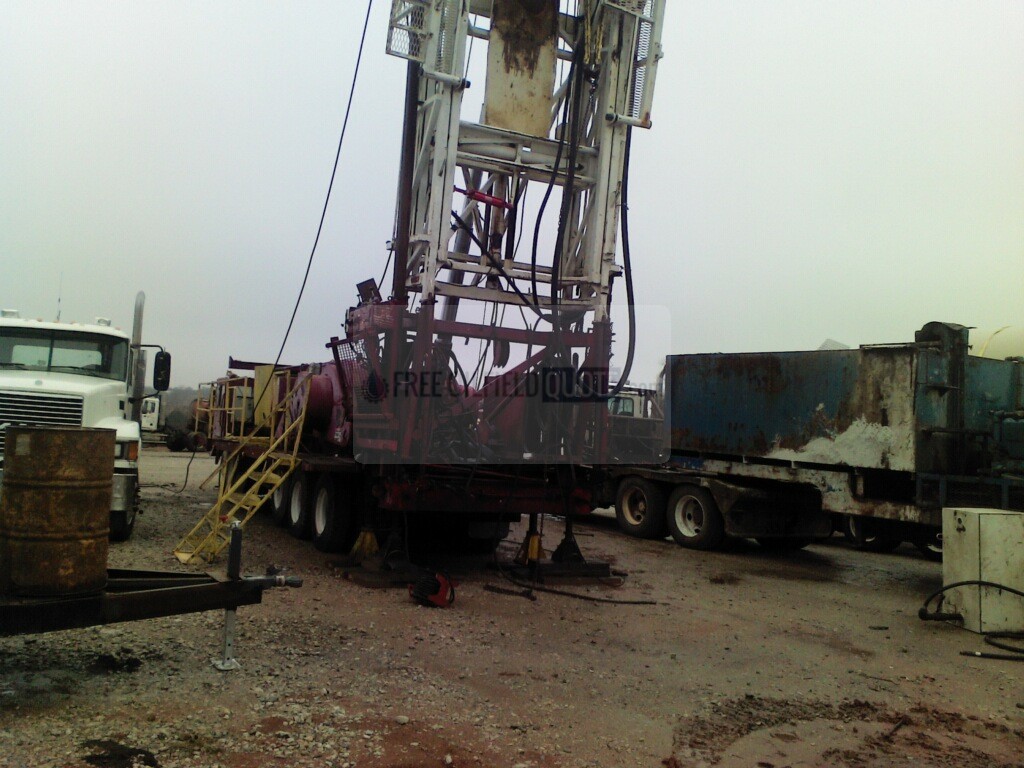

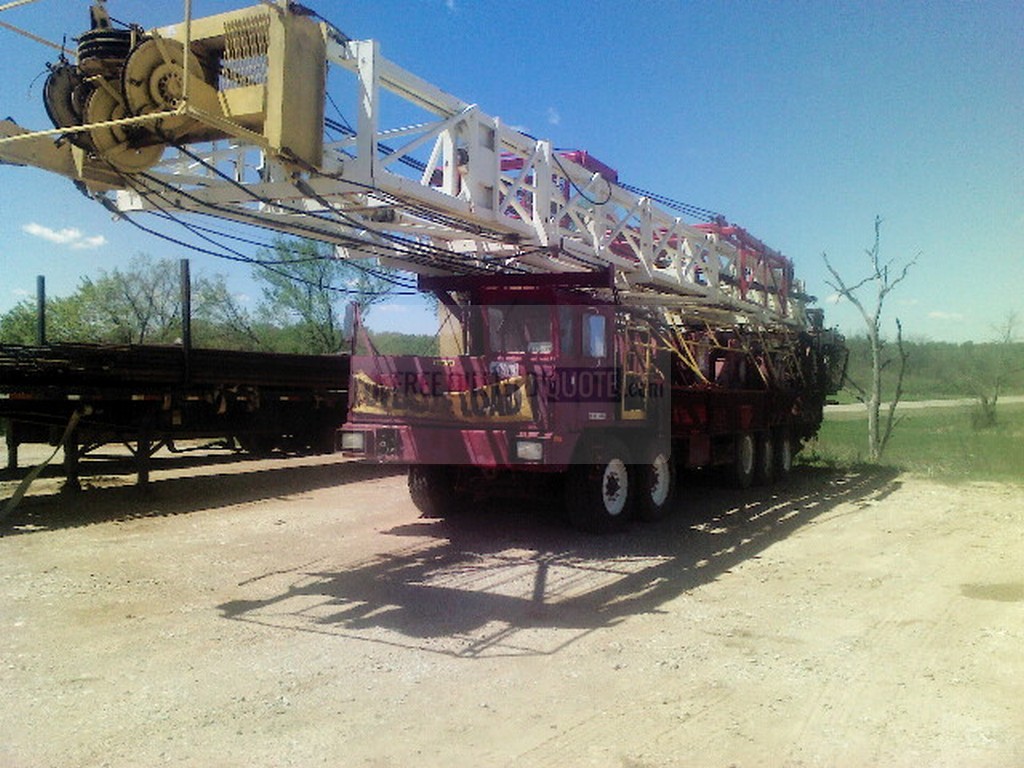

                 MAST

Model: 104 / 250; 108 / 300

Mast Height : 104 ft. / 105 ft.

No. of Lines to the Block: 4, 6 or 8

API Capacity: 250,000 lbs. / 300,000 lbs.

Drill Line Size: 1 in.

Racking Board Height: 55 ft. 7 in. / 66 ft. 7 in.

Rod Basket Height :78 ft. 7 in.

Traveling Block: 100 ton 83A non-weighted

Mast Raising System

Raising Rams : Double 3-stage, double acting

Telescoping Ram: (1) single stage

Guy Lines: (2) with Ratcheting Turnbuckles

Wind Guys: (1) Set

Tubing Board Guys: (1) Set

            POWER SYSTEM

Engine: Cummins / Det S-60

Cylinders / Type: 6 / 4 -Stroke

Horsepower: 550 hp.

Governed Speed: 2,100 rpm.

Air Cleaner: Single Dry Type

Emergency Stop: Standard

Transmission

Type: Allison M5610-Drop Box

Gearing: 6 Forward / 1 Reverse

             AIR ELECTRICAL & HYDRAULIC

Compressor : 27 CFM

Electric System: 12 Volt

Alternator : 115 Amp

Starter :12 Volt

Batteries: (3) BCI-31

Hydraulic System: 50 gpm / 2,000 ps

           CAB

Type: Single Person

Heater / Defroster : 40,000 BTU

Drivers Seat: Air Ride

Mirrors: West Coast Style

    RIG LEVELING SYSTEM

Leveling Jacks : (4) 12 in. Hyd. w/Manual Back-up

Screw Down Derrick Legs

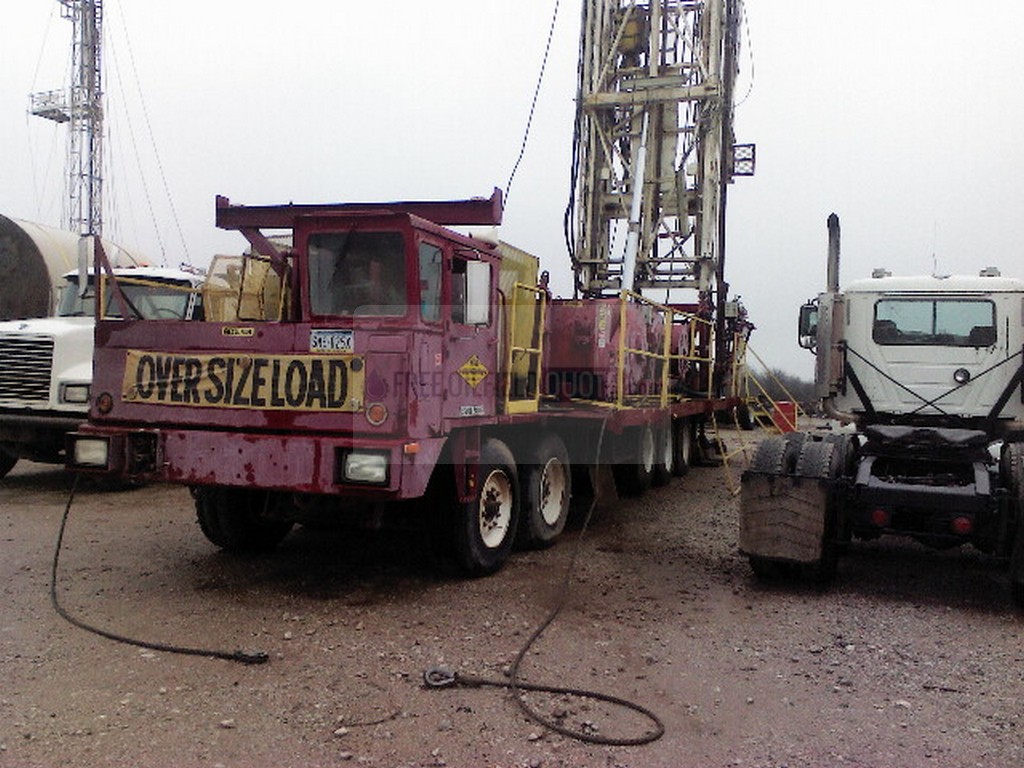

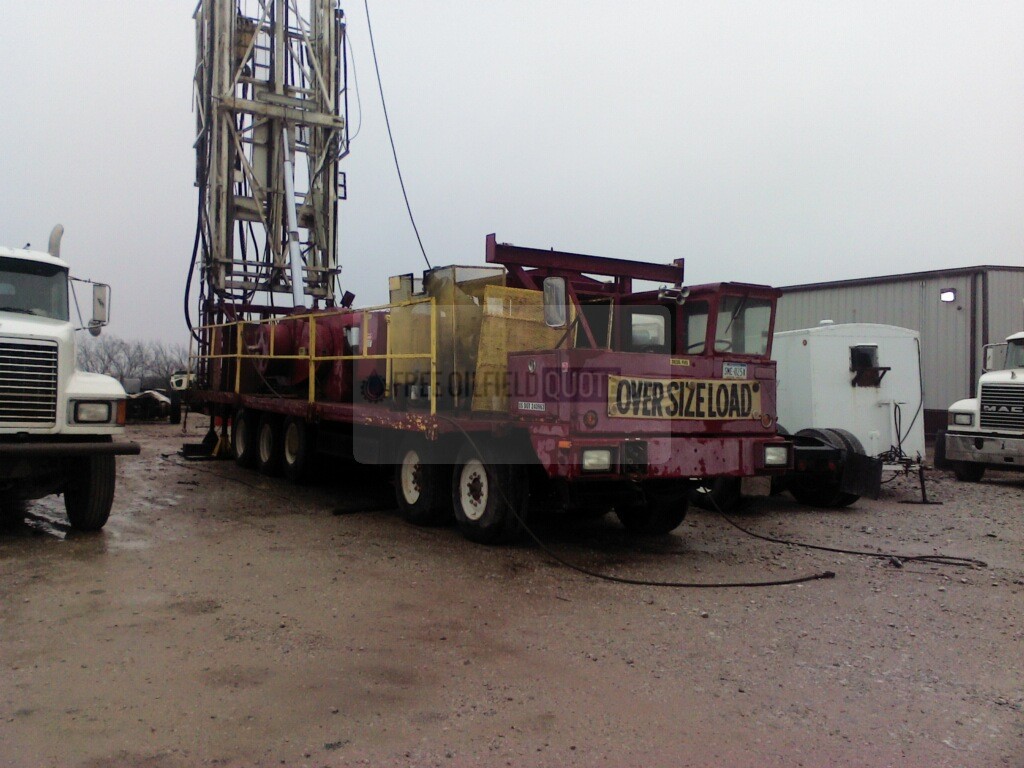

     CARRIER

Type: Axle, 10 x 4 Drive

Length with Mast : 66 ft. 6 in.

Overhang, Front / Rear : 20 ft. 6 in. / 1 ft. 7 in.

Axle to Front Bumper: 5 ft.

Bridge Span: 18 ft. 3 in.

Rear Axle Spacing: 55 in.

Rear Axle to Back of Rig: 5 ft. 7 in.

Height (OTR) : 14 ft. 4 in.

Estimated Rig Weight: 100,000 lbs. w Blocks & Drill Line

   AXLES & SUSPENSION

Front: Tandem / Steerable

Axle Capacity: 20,000 lbs Per Axle

Suspension Type: Spring

Rear :Tandem

Axle Capacity: 26,000 lbs.

Tag Axle Capacity: 20,000 lbs.

Drive Ratio: 6.17:1

Brakes

ABS System: Standard Drum

Park Brake: Air

Tires & Wheels

Front Tires: 425/65 R22.5 in.

Wheels: 13 in. / 22.5 in.

Rear Tires: 11R x 22.5 in.

Frame

Main Rails: 21 in. 57 lbs./ft.

Frame Deck: 3/16 in. Diamond Plate

Tow Points: Front & Rear

Front Bumper: Slant Type

Paint

Standard Paint: Non-Metallic Colors
