Trailer Mounted Coiled Tubing Unit

Manufacturer: NOV Hydra Rig
Type: Refurbished

Note: *Unit Can Be Purchased for $1,150,000 As-Is or $2,052,000.00 Completely Refurbished

Location: Fort Worth, Texas

Trailer Mounted Coiled Tubing Unit Description

The coiled tubing unit described below consists of a five (5)-axle reel trailer, control cabin / power pack, tubing reel, injector power hose reel, injector/BOP control hose reels, and an HR-6100 injector mount on a hydraulic tilt stand on the trailer deck.

The trailer and injector are certified pre-owned components.

Customer will supply the tractor to pull the reel trailer assembly. Trailer deck space is available for Customer’s BOP stack / stand. Customer’s stripper will attach to the injector’s stripper adapter.

The unit is designed to operate in maximum temperature of 50˚C (122˚F).

Trailer Mounted Coiled Tubing Unit Details

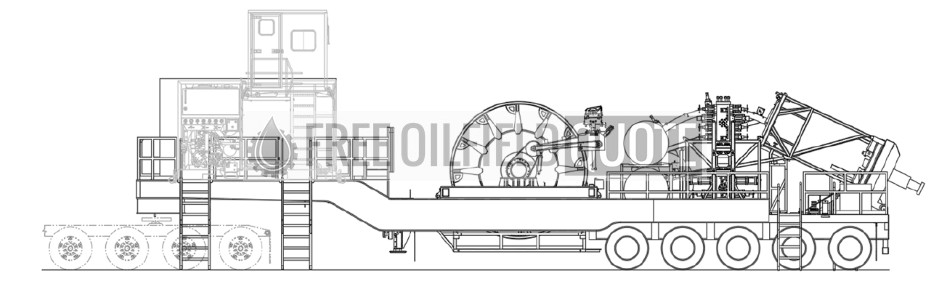

Layout Revised

• Overall trailer length: 755in (19.18 M)
• Overall trailer width: 144in (3.658 M)
• Overall height in transport mode: 197in (5 M)
• Calculated weight distribution considering 89,600 Lbs (40,642 Kg) tubing reel payload (tubing / residual fluid) and Customer’s quad / dual combi BOP stack:

• Kingpin load: 80,569 Lbs (36,454 Kg)
• Reel trailer axle group load: 135,474 Lbs (61,450 Kg)

Trailer

• 240,000 Lbs GVWR capacity
• Integral chassis well for tubing reel
• Five (5) 30,000 Lb fixed (non-swivel) type axles with air-ride suspension. Rear axle is adjustable pusher with pressure regulator mounted on trailer rear. Each axle includes four (4) 315/80R22.5 tubeless tires on aluminum wheels.
• Removable hook-on ladder for upper deck access.
• Manual fold-down ladders for lower deck access
• Handrails on upper and lower decks
• Hydraulic landing gear powered by the trailer’s integral electric-over-hydraulic system.
• Electric/Hydraulic kingpin flip box with battery, pump, reservoir, and control pendant.
• 51in x 2in kingpin with flip box down
• 65in x 3-1/2in kingpin with flip box up

Cabin/Power Pack

• Includes crash frame and two-point lift
• Base includes forklift pockets
• Lift sling not included 2.2.1

Power Pack Module

• Caterpillar 3406C engine, 490 HP @ 2,100 RPM. Non-certified emissions.
• 24VDC battery system for engine starting and on-board CTU electrical requirements
• 90 GPM closed loop injector pump
• Open loop priority and BOP circuits
• Four (4) 15-gallon BOP accumulators, 3,000 PSI 2.2.2

Control Cabin Module

• Integrates shell and floor design
• Elevates by hydraulic cylinder system to operating height
• Single door on drivers side
• Integral ladder to access raised cabin
• Fold-down porch at door with handrails
• 24VDC interior and exterior LED lighting
• Operator chair and two (2) jump seats
• 24VDC controlled / hydraulic powered wall mounted air conditioner
• Complete control console for all CTU functions

Tubing Reel

• Capacity for 22,100ft (6,736 M) of 2in tubing (0 FB)
• Spool dimensions are 136in OD x 80in core x 112in between flanges
• 5000 series direct drive planetary gearbox
• 2in 15,000 PSI Figure 1502 internal and external plumbing. Transducer to monitor circulating pressure is installed on external plumbing manifold.
• 2in 15,000 PSI Hydra Rig circulating swivel
• Maximum reel transport payload (tubing/residual fluid) is 89,600 Lbs (40,642 Kg)
• Maximum reel operation payload (tubing/fluid) is 110,200 Lbs (49,986 Kg).
• Tubing reel fits through CTU trailer chassis to lower unit’s center of gravity
• Tubing counter head with mechanical counter. Encoder for tubing depth/speed is not included with this specification. Counter reads in Meters
• Tubing lubricator, dressed for 2in CT, mounts to counter head
• Folding platforms each side for reel swivel and gearbox/motor access
• Drip pan not supplied with this specification

HR-6100 Injector

• 100,000 Lbs pull capacity
• 50,000 Lbs snubbing capacity
• 90 GPM drive motors
• Dressed for 2in CT
• Stripper adapter (Customer to define their stripper size, make, and style)
• 100in radius hydraulic short fold tubing guide with three (3) hydraulic hold-down boxes
• Fall pole with fall arrestor
• Electronic load cell
• Fold-down platforms on three (3) sides
• 95,000 Lb capacity hydraulic lift bale
• Lift tested per Hydra Rig Standard

Hose Reels / QDs

• Injector control hose reel with multi-port swivel and 125ft (38 M) long hoses
• BOP control hose reel with multi-port swivel and 125ft (38 M) long hoses
• Injector power hose reel with two (2) 1.50in x 125ft (38M) 5,000 PSI hoses
• Quick disconnect fittings are Aeroquip 56 series throughout

GENERAL

• Trailer is painted Silver Frost (RXP00436). Componentry will also be painted Silver Frost (RXP00436)
• Equipment is tested at NOV Hydra Rig’s Fort Worth, Texas, USA facility
• One (1) hard copy of operators manual including USB drive provided, including schematics, drawings, maintenance schedules, injector lift test documentation, and completed test report.
• Pulling tractor, tubing, DAS, and wellhead equipment is not included with this specification, Customer’s pulling tractor distance from fifth wheel to end of frame must not exceed 83in (2.11 M). Fifth wheel’s rated capacity should be minimum 70,000 Lb (31,752 Kg).
• Six (6) months warranty is provided with the unit
• Specifications, layouts, dimensions, capacities, weights, and loads are subject to change.
