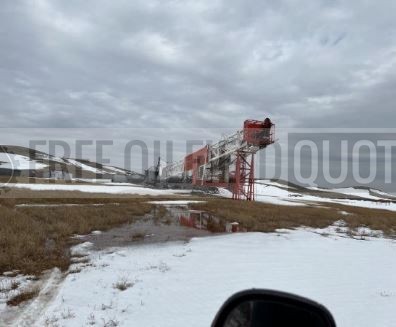

Refurbished Oilwell E-2000 Drilling Rig

Manufacturer: Oilwell
Type: Refurbished
Location: Texas

Notes:

General Information

• Completely Refurbished in 2012
• Good Condition
• Stacked 2021
• 500 Ton NOV TDS11 Top Drive
• Unused Since 2021
• Spare Equipment

Refurbished Oilwell E-2000 Drilling Rig Details

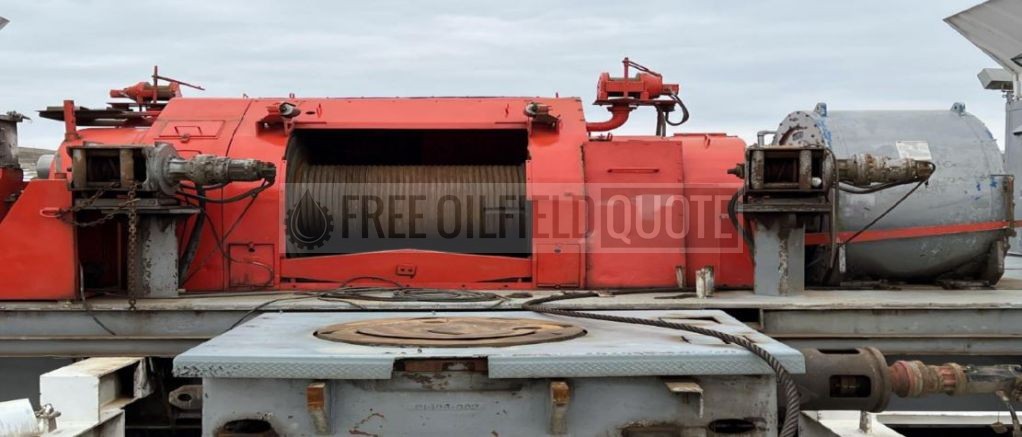

DRAWWORKS:

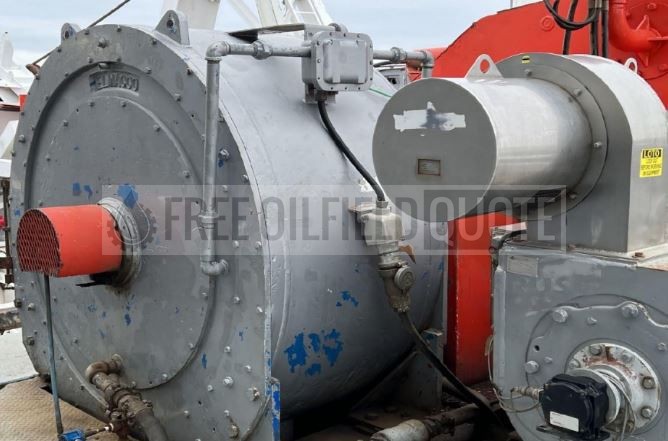

• Oilwell E-2000 (2000hp) with Elmago 7838 Auxiliary Electric Brake.
• Powered by Two (2) G.E. 752-1000 HP Electric Motors, Drillers Console Grooved for 1 1/2in Wire-line, Single Drum. With 2 Hyd catheads.

MAST:

• Lee C. Moore, 152ft Beam Leg, 1,300,000# SHL. Seven (7) 60in Sheaves with (1) 60in Fast-line Sheave. Boom Pole, Derrick Shoes Stand Pipe Manifold. Derrick Ladder.

TRAVELING EQUIP:

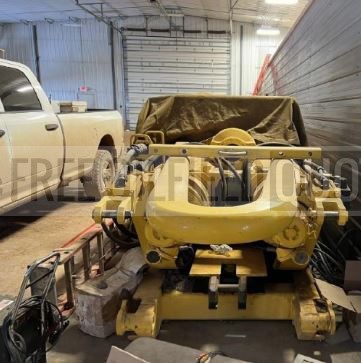

• Oilwell 650 Ton Blocks. VARCO TDS-11S 500 ton top drive with 120in 500 ton bales

SUBSTRUCTURE:

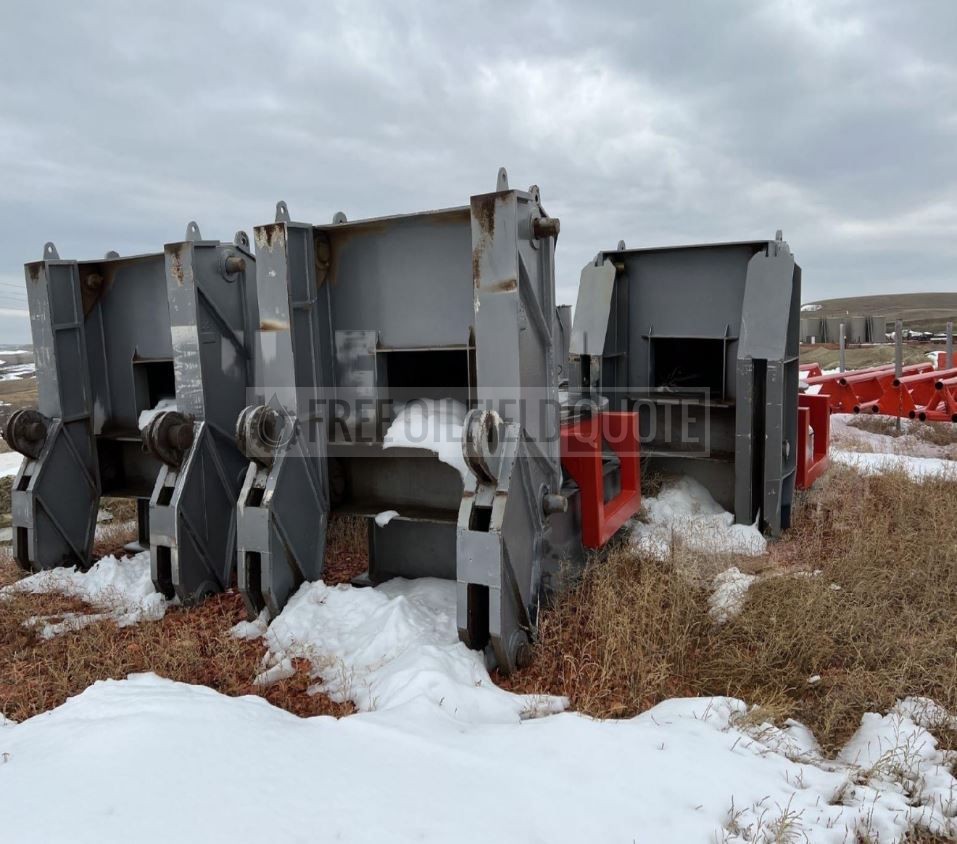

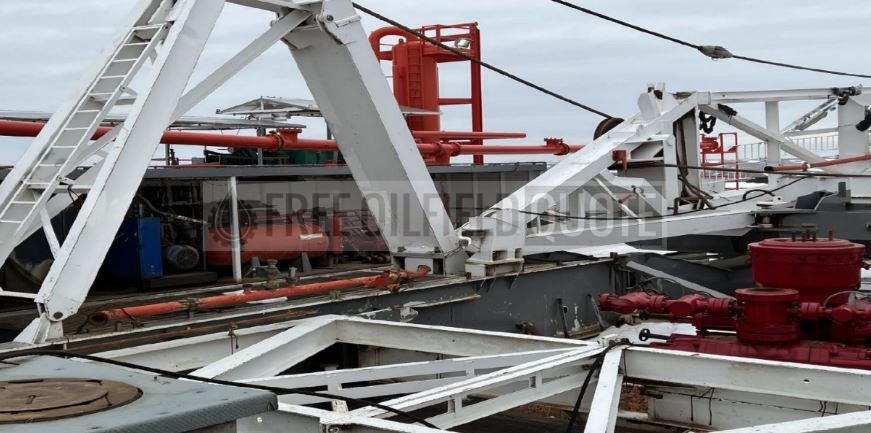

• Substructure - Lee C. Moore Swing-Up With Elevator, 32ft Floor Height, Rated 800,000# Setback, Sub Skids (2) 5ft H x 60ft long.
• Lee C Moore Rig Rover Walking system Mdl 544670 500,000 Capacity Grasshopper will walk 160feet.

ROTARY:

• Rotary Table-Oilwell 8275 27in x 53in w Master Bushing

BOP EQUIPMENT:

• One (1) 13 5/8in Cameron Type U Single Ram Preventor 5000
• # One (1) 13 5/8in Schaffer Double Ram Preventor 5000 #

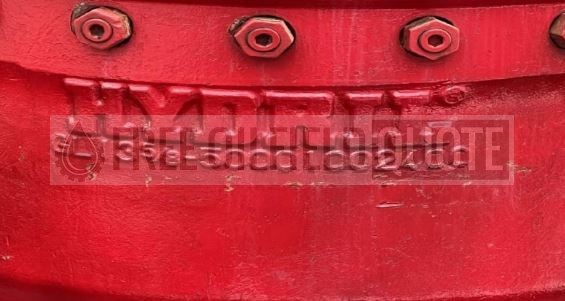

• One (1) GL Hydril Annular 5000#
• One (1) 5000# Mud Cross

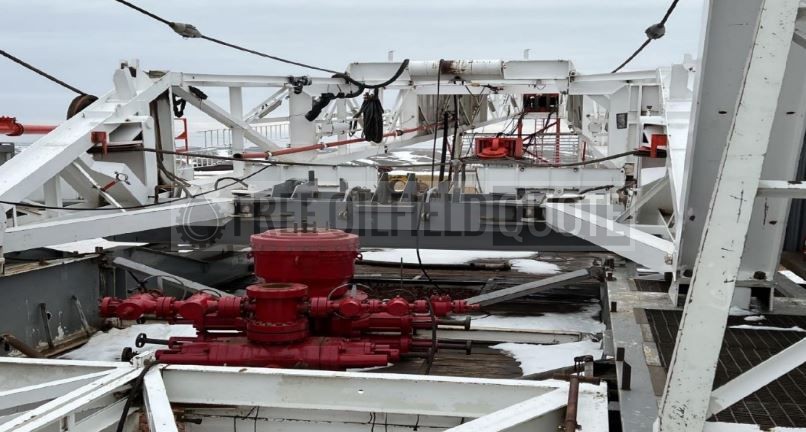

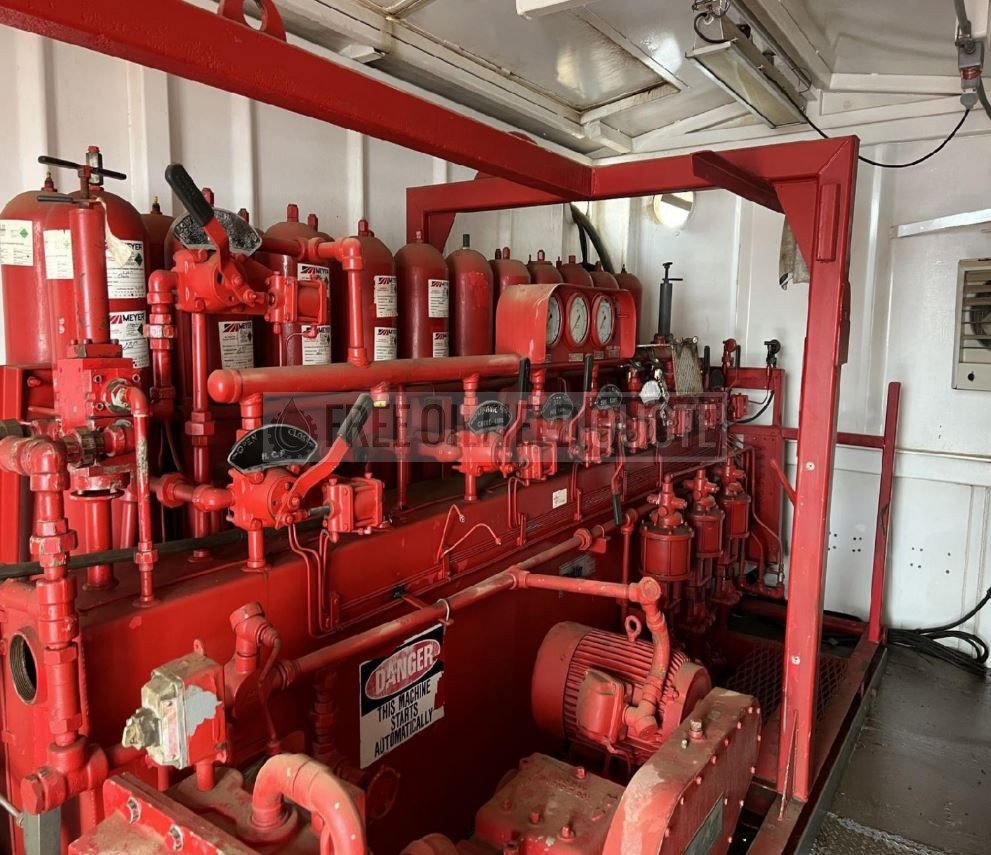

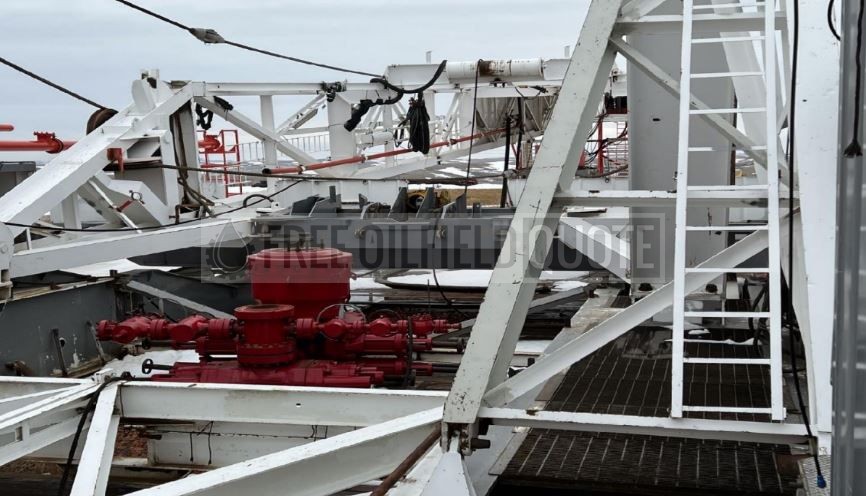

• Accumulator - Koomey type 80 - 7-Station. Choke Manifold 4 1/16in X 10k

ENGINES:

• Four (4) Caterpillar 3512 diesel engines with Cat 1050 KW generators.
• 2 3512C used 1 year
• 2 3512A models

WATER TANK:

• 2-Water Tanks 500 BBLS Skidded - Double Life Pump with Electric Motor

HANDLING TOOLS:

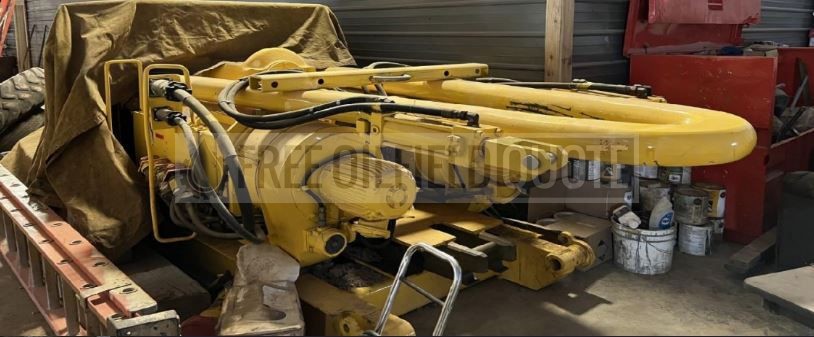

• 500 Ton Handling tools for Contractor's Drill Pipe and Drill Collars, Blohm & Voss Hydraulic Floorhand, and rotating mouse hole.

DRILL STRING:

• Drill Pipe - 10,717 feet 340 jts - 5in OD, 19.50 4 ½ IF Grade S-135 Drill Collars - 6-Jts. - 8in OD6 5/8 REG
• Drill Collars 6-Jts. - 9in OD 75/8 REG HWDP 50jts-5in -with 4 ½ IF thread Assorted XO subs and lift subs

AUXILIARY EQUIP:

• Mathey .092 Wireline Measuring Unit. 2- Ingersoll Rand, K5UL Air hoist for handling tubulars.
• 2 Hyd boom pole winches
• Pipe Racks Three (3 sets) 18in Tall V-Door
• Ramp with Stairs
• Shaker Manifold - 12in pipe with outlets
• Hydraulic Power Unit-2-100 hp max min 75 - hoses and hydraulic lines Cat walk two piece 18in H x50ft L
• Martin Decker weight indicator Elevator Links, 500 ton
• Drill Pipe Elevators Drill Pipe Slips
• Drill Collar Elevators
• Manual Tongs Type DB with 3 ½in - 10in jaws

HOUSES:

• Top Dog House -Knowledge Box. Tool Benches with Koomey type 80, Remote Control
• Bottom Change House with 16 Lockers/ Parts House lea. - Tool House/Paintlocker
• lea. Parts Storage House

SCR:

• Legacy Siemens 4X4 control house. 600v DC and 480v AC power. 2- 500t AC units and stepdown transformers

MUD PUMPS:

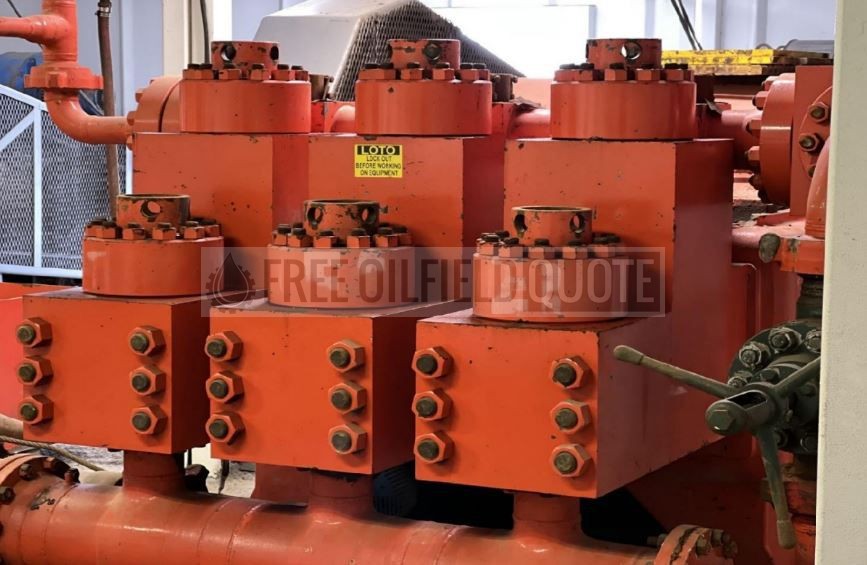

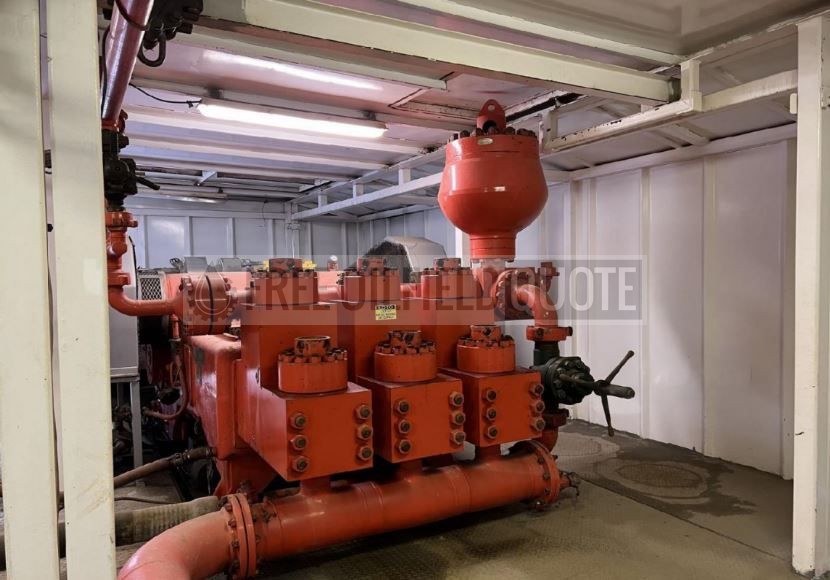

• Two (2) Gardner Denver PZ-11fts (1600 hp each) With 7500 PSI Southwest fluid ends, powered by (4) AMD 800 hp DC Traction Motors. 5x6 Charge Pumps, Belts, Belt Guard.

MUD SYSTEM:

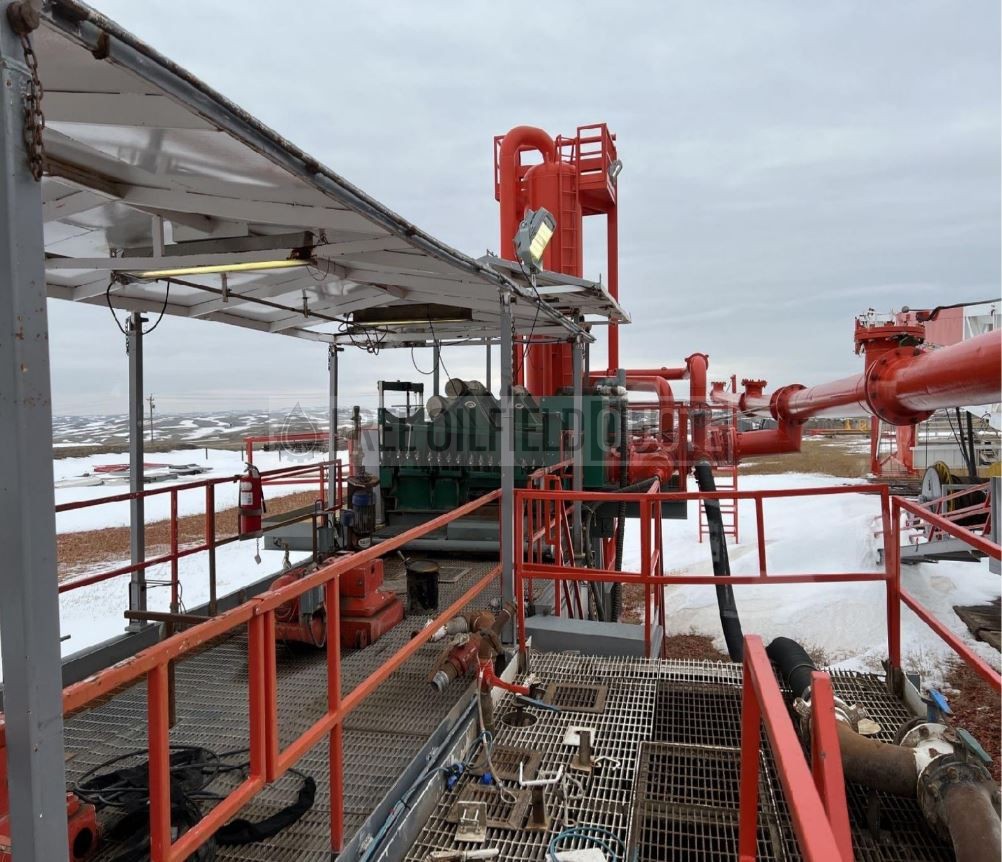

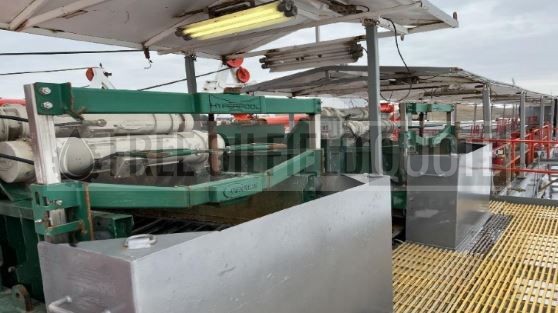

• Three Tank Mud System. 10ft W x 40ft L x 8ft H. 1500 Bbl Capacity Two Derrick Shale Shakers
• Mud Mixers - Harrisburg Mud Gas Separator
• Brandt Mud Mixers - 8-10 hp Brandt Agitators
