Offshore Coiled Tubing Unit CTU

Type: Refurbished

Condition: Good

Location: Louisiana

Coil Tubing Unit Skid Specifications and Equipment:

Power Skid # 1-8ft W x 12ft L x 8ft H

• Skid complies with DNV 2.7-3 standards
• Tare Weight = 4500lb. / Operational Payload = 15000 lb. / Max Gross Weight = 19500 lb.
• Power Generator (John Deere Engine 6.87L 187 KW 250 HP PE6068L190975)
  • ESD, Spark Arrestors, Muffler Wrap
• 40 Gallon Fuel Tank
• 170 Gallon Hydraulic Fluid Tank
• Hydraulic Pumps
• Hose Bulkhead Panels
• Gardner Denver T-300M Test Pump
• Lockable Storage Compartment
• 2 x 10 Gallon Air Tanks

Power Skid #2 -8ft W x 12ft L x 8ft H

• Skid complies with DNV 2.7-3 standards
• Tare Weight = 4500lb. / Operational Payload = 15000 lb. / Max Gross Weight = 19500 lb.
• Power Generator (John Deere Engine 6.87L 187 KW 250 HP PE6068L190975)
  • ESD, Spark Arrestors, Muffler Wrap
• 40 Gallon Fuel Tank
• 170 Gallon Hydraulic Fluid Tank
• Hydraulic Pumps
• Hose Bulkhead Panels
• Lockable Storage Compartment
• 2 x 10 Gallon Air Tanks

Cabin Skid # 1-8ft W x 12ft L x 8ft H

• Skid complies with DNV 2.7-3 lift standards
• Tare Weight = 4500 lb./ Operational Payload = 15000 lb./ Max Gross Weight = 19500 lb.
• Control Cabin with Hydraulic Rams to Raise/Lower (with stairs)
  • Interior Lighting (12V DC)Hydraulic Air Conditioning Unit
  • Lockable Access Door
  • Storage Cabinet
• Coil Tubing Unit Instrument Control Panel
• Coil Tubing Unit Instrument Gauges
• Data Acquisition, Real Time Fatigue Monitoring (Medco)
• Hose Bulkhead Panels
• Accumulator Bottle Pack with Backup Pump (23.474 Gallon usable Accumulator Storage)

Injector Head & BOP Skid #1 -8ft W x 12ft L x 8ft H

• Skid complies with DNV 2.7-3 lift standards
• Tare Weight = 4500 lb. / Operational Payload = 15000 lb. / Max Gross Weight = 19500 lb.

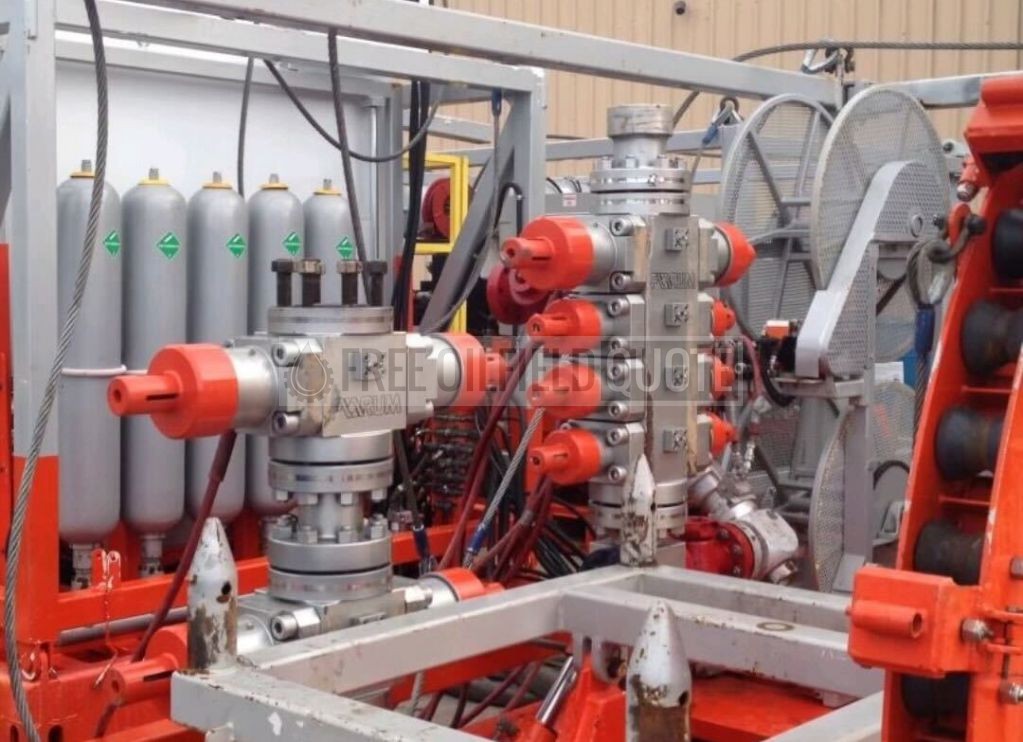

• 3-1/16in 10M Forum Quad BOP
  • SN P13050 - Recertification Date 02/17/2018
  • Blind Shear Test Performed Successfully by OTC Solutions 03/13/2018 - 03/14/2018
• 3-1/16in 10M Forum Single Combi BOP
  • SN P13206- Recertification Date 02/17/2018
• 3-1/16in 10M Forum Single Combi BOP
  • SN 13215- Recertification Date 02/17/2018
• 3-1/16in 10M Forum Flow Cross Assy (3-1/16in x 2-1/16in)
  • SN R13161 Recertification Date 02/17/2018
• 3-1/16in 10M Forum Flange Union
  • SN R13051- Recertification Date 02/17/2018
• 2-1/16in 10M 2x2 Rotac Hydraulic Controlled Plug Valve
• 2x 2-1/16in 10M 2x2 Manual Plug Valve
• Hydraulic Powered BOP Hose Reels
• Hydraulic Tilt Injector Head Mount
• BOP Test Stump
• 3-1/16in 10M Forum Quick Test Union
  • SN N13132 - Recertification Date 02/17/2018

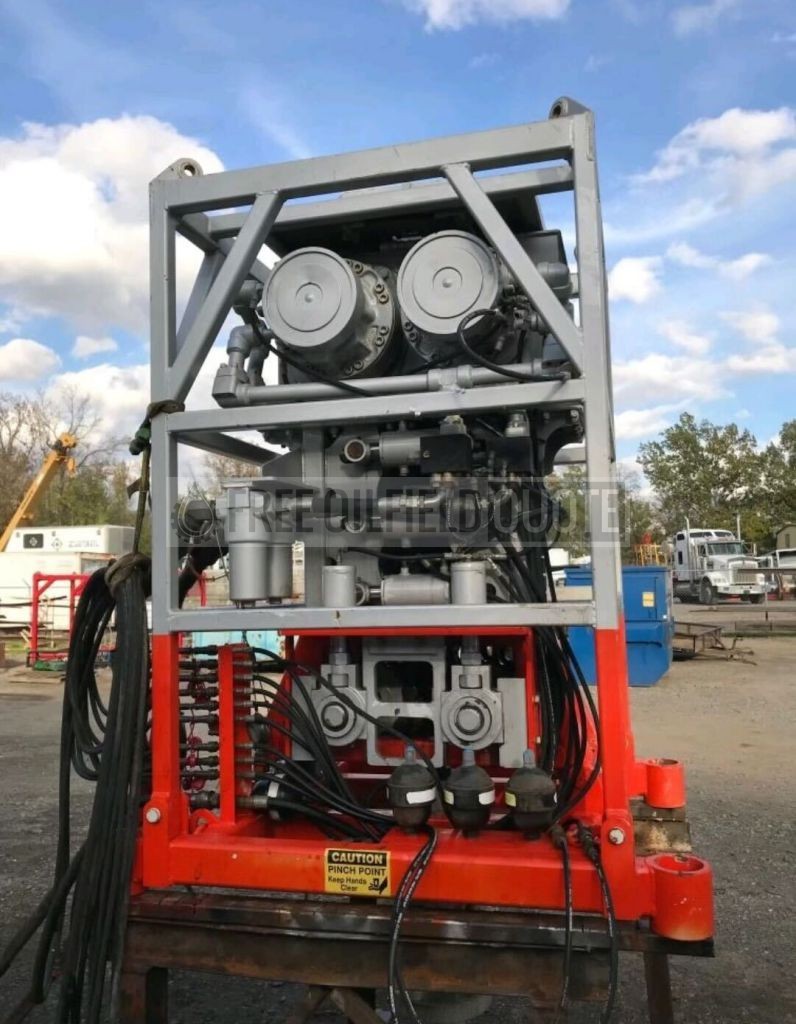

• Hydessco 35K Injector Head with Gooseneck
• BOP Lifting Cap
• 3-1/16in 10M Forum Stripper
  • SN M13159 - Recertification Date 02/17/2018

Hose Reel Skid #1

• 5ft W x 7ft L x 5ft H Certified Skid
• Hydraulic Powered Injector Head Control Hoses reel
• Hydraulic Powered Injector Head Main Power Hoses

Hose Basket #1

• 7ft Round Basket with Single Lifting Point
• Injector Head Extension Hose Package

Coil Tubing Reel Skid #1 - 8ft 6in W x 16ft L x 10ft 1in H

• Skid complies with DNV 2.7-3 lift standards
• Tare Weight = 12,000 lb. / Max Gross Weight = 50,000 lb.
• Automatic Tracking Levelwind with Manual Override Controls
• Mechanical and Digital Counter
• 10,000 psi live swivel
• Hydraulic Powered Kick-out and Raise Legs
• 120in Flange x 72in Core
• Lifting Spreader Bar
