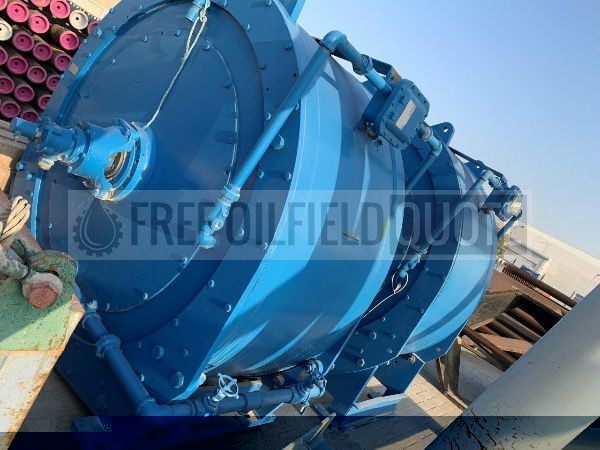

NOV Elmagco 7838W Aux Brake Baylor

Manufacturer: NOV
Model: 7838W
Type: Refurbished
Location: UAE

NOV Elmagco 7838W Aux Brake Baylor Details

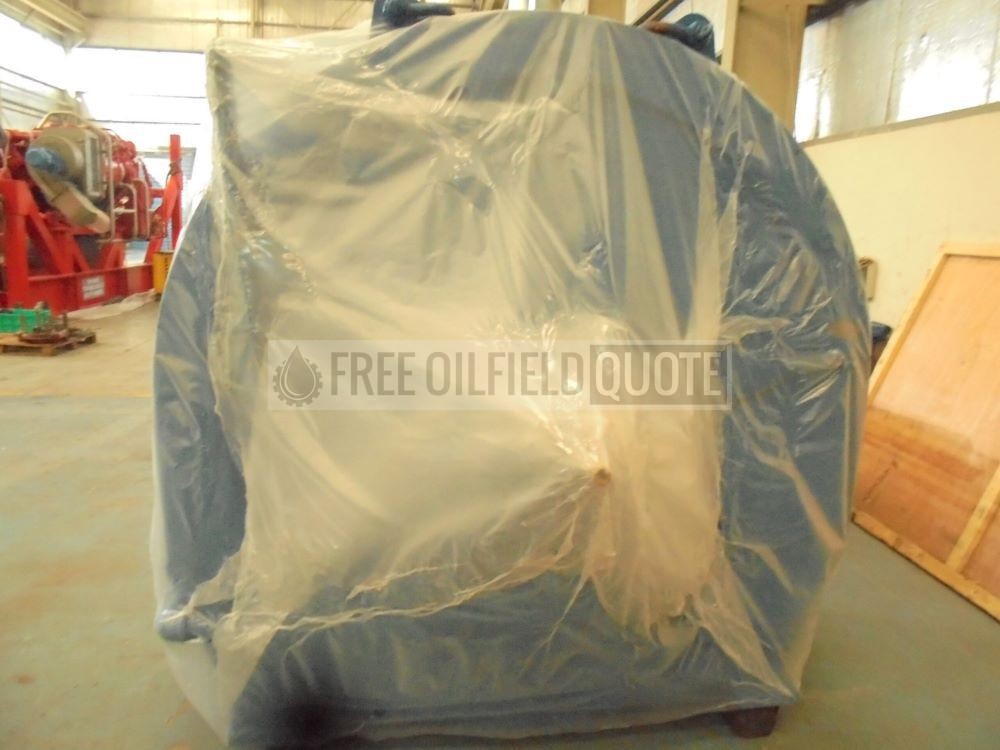

• 2 units - Reconditioned Elmagco Baylor Brake Model 7838W Fully Overhauled 2013 Unused and stored undercover
• 1 unit - Newly Overhauled July 2024 Elmagco 7838 W Baylor Brake #RHZ 11052W
• Recertified Elmagco Model 7838W Aux Brake Baylor

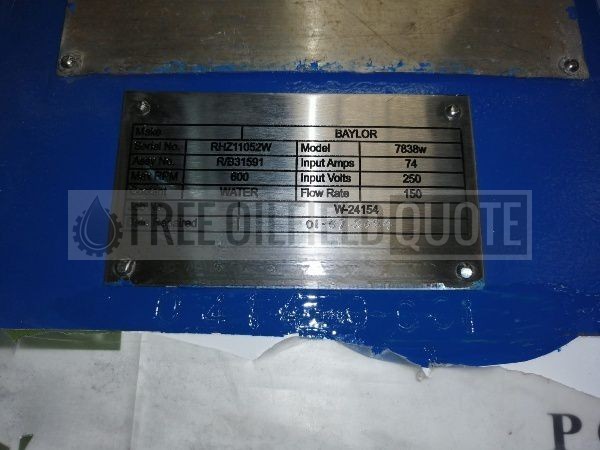

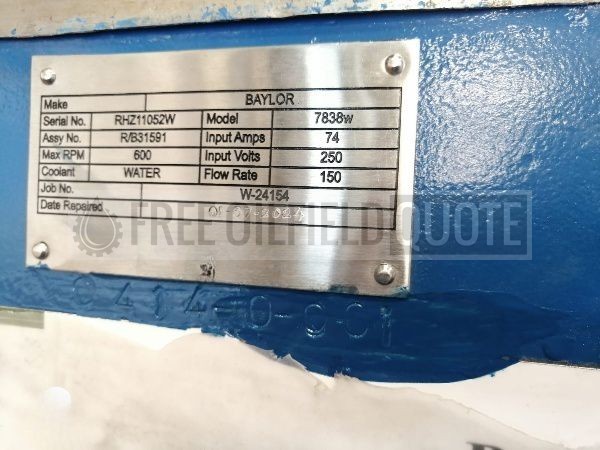

• (Less Coupling), Serial No: RHZ11052W

NOV Elmagco 7838W Aux Brake Baylor Specifications

• Principal of Operation: Induced Eddy Current Braking
• Torque-Maximum @ 150 RPM, lb-ft (n-m): 117,000 (158,631)
• Torque @ 50 RPM, lb-ft (n-m): 96,000 (130,159)
• Number of Magnets: 2
• Number of Coils per Magnet: 2
• Coil Internal Resistance @ 68° F (20° C), Ohms: 13.4-13.9, 11.0-11.5 Prior to July 1985)
• Total Brake Input Resistance @ 68° F (20° C), Ohms: 3.9-4.1, 2.8-2.9 (Prior to July 1985)

Brake Excitation

• Voltage, volts DC: 250
• Current-Coil Temperature @ 68° F (20° C), Amps DC: 74.07, 89.29 (Prior to July 1985)
• Power Input @ 68° F (20° C), kW: 18.5, 22.3 (Prior to July 1985)

Cooling Water Requirements

• Flow @ 100° F (38 Deg. C) At Brake Inlet, gpm (lpm) 150 (568)
• pH: 7.0-7.5
• Maximum Discharge Temperature, oF (oC): 165° (74°)

Cooling Water Piping

• Inlet: (2) 2in NPT
• Outlet: (2) 4in NPT
• Overflow: (2) 1.25in NPT

Overall Sizes

• Height, in (mm): 78 (1,981)
• Width, in (mm): 38 (965)
• Weight, lbs (kg): 28,000 (12,701)
• Inertia (WK2)-Shaft and Rotor, lb-ft2 (kg-cm2): 37,938 (15,987,118)
• Weight-Shaft and Rotor, lbs (kg): 6,458 (2,929)

Shaft Size (Oilfield Standard)

• Diameter, in (mm): 7.5 in (190.5)
• Taper per foot, in (mm): 1 ¼ in (31.75)

Average Rotor Radial Clearance (Air Gap) Over Magnets (Without Paint or Other Build up), in (mm): 0.055-0.065 (1.397-1.651)

Maximum RPM: 600
