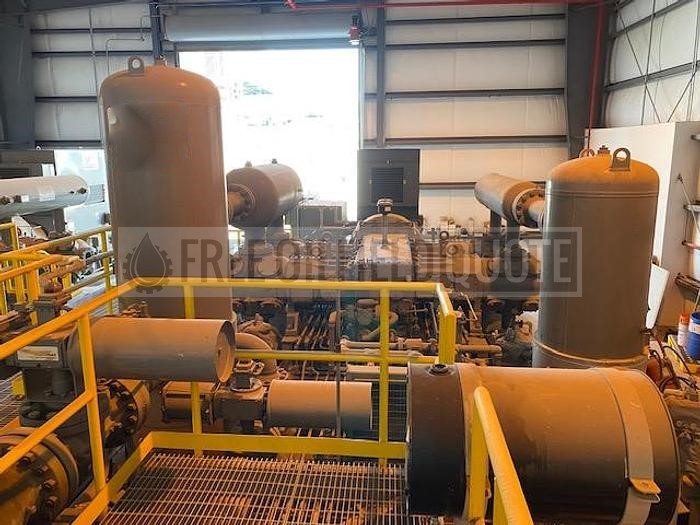

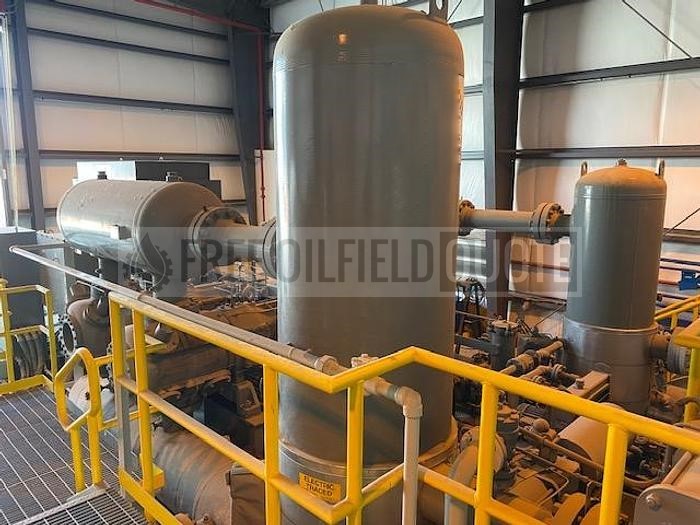

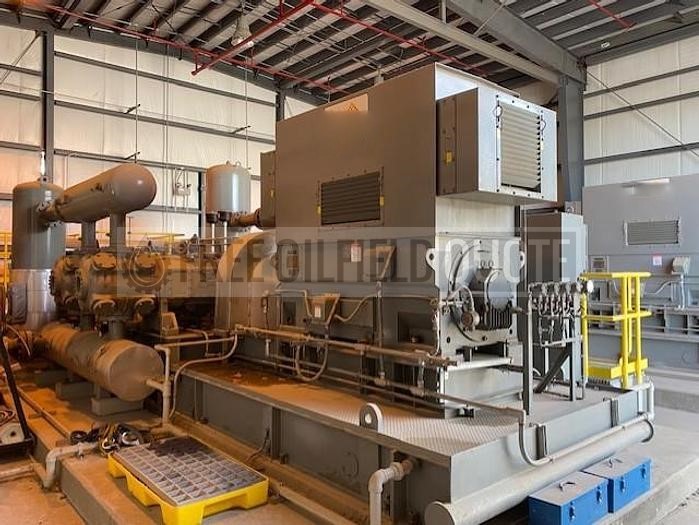

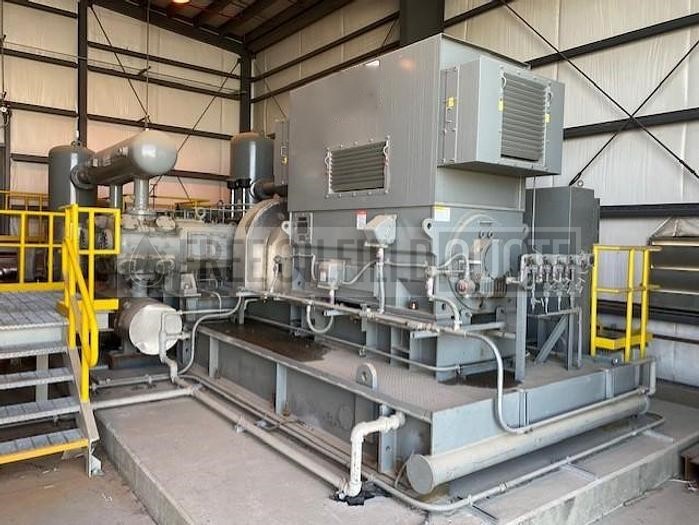

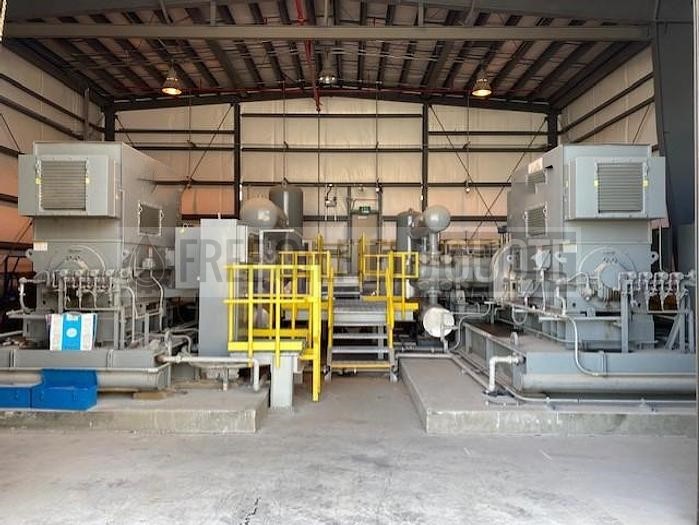

Ariel JGD-4 Toshiba 3100 HP Two Stage Compressor Package

Manufacturer: Ariel

Model: JGD-4

Date of Manufacturing: June 2001

Type: Used

Condition: Excellent

Location: Valencia, CA

Ariel JGD-4 Toshiba 3100 HP Two Stage Compressor Package Details

Universal Compression Unit Number 1009-A:

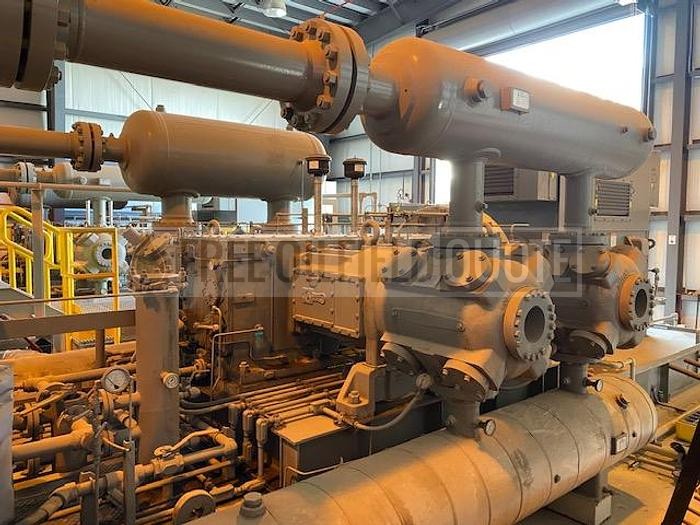

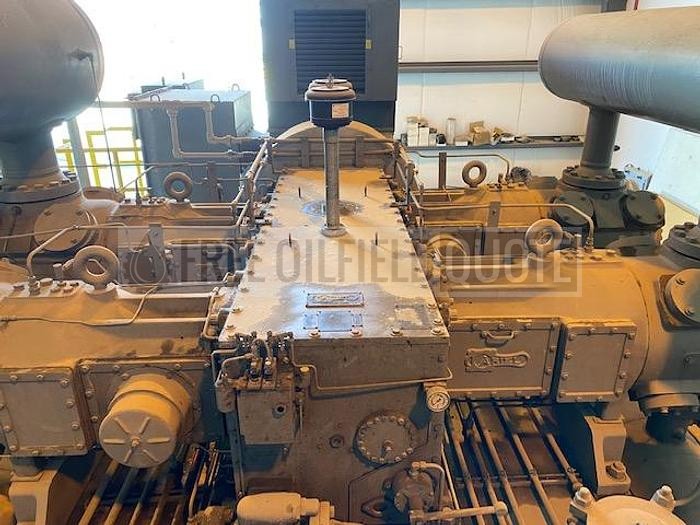

Ariel Compressor Frame

• Stroke: 5.5 in
• RPM: 1200
• Rod load: 114,000 lbs
• Ariel MFG Date: June 2001
• SN: F-16652

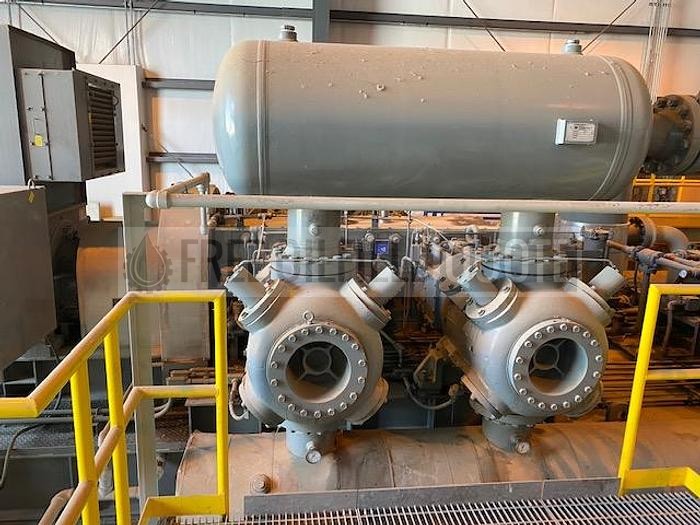

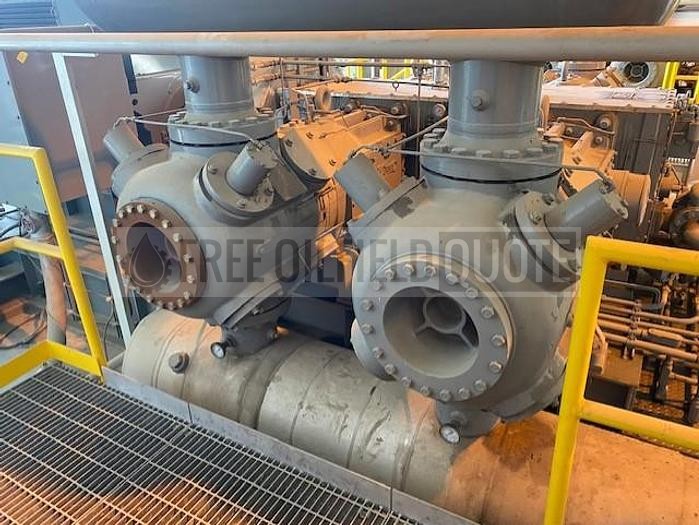

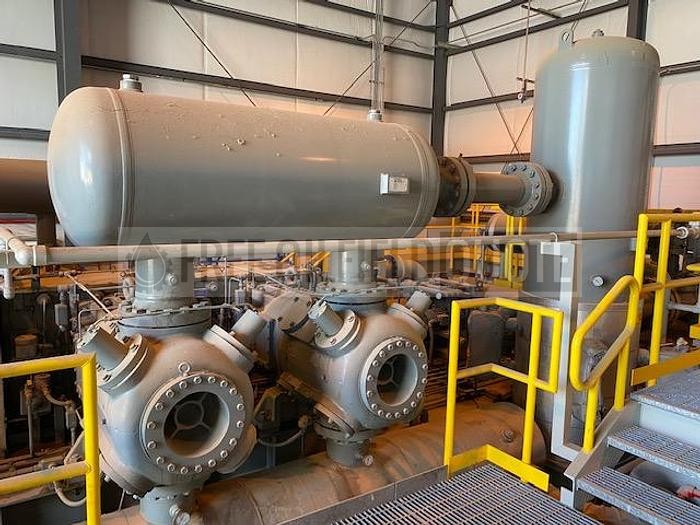

1st stage Ariel Cylinders

• Bore: 13.625in
• Stroke: 5.5in
• MAWP: 815
• Class: D
• SN: C-50862
• Complete with standard fixed heads and suction valve unloaders on HE only.

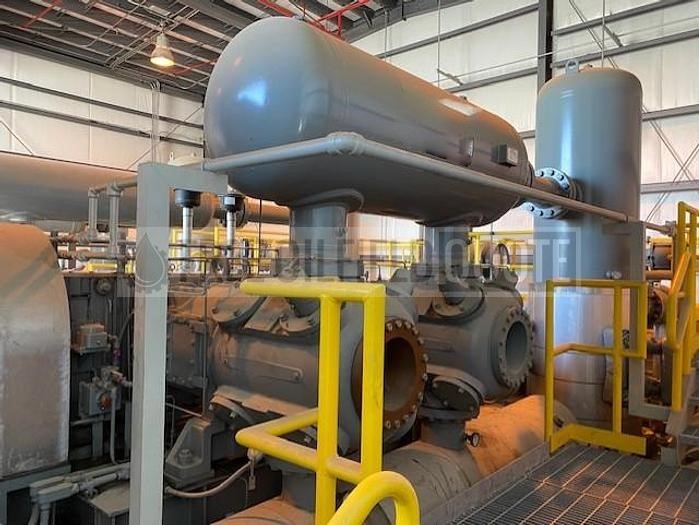

2nd stage Ariel Cylinders

• Bore: 9.125in
• Stroke: 5.5in
• MAWP: 1270
• Class: D
• SN: C-50864
• Complete with standard fixed heads

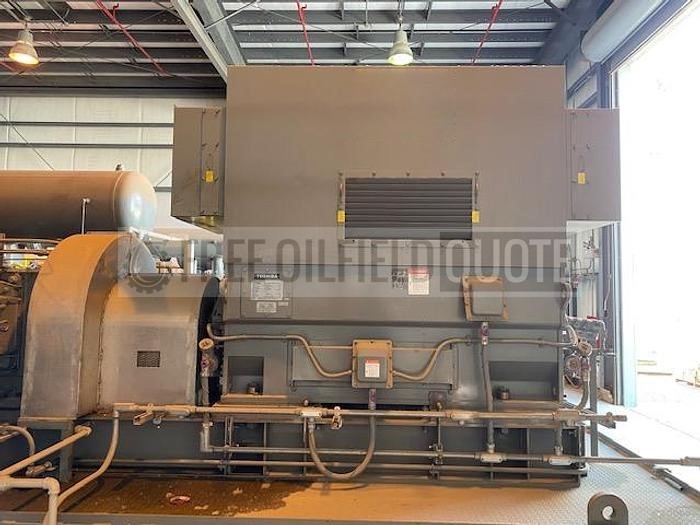

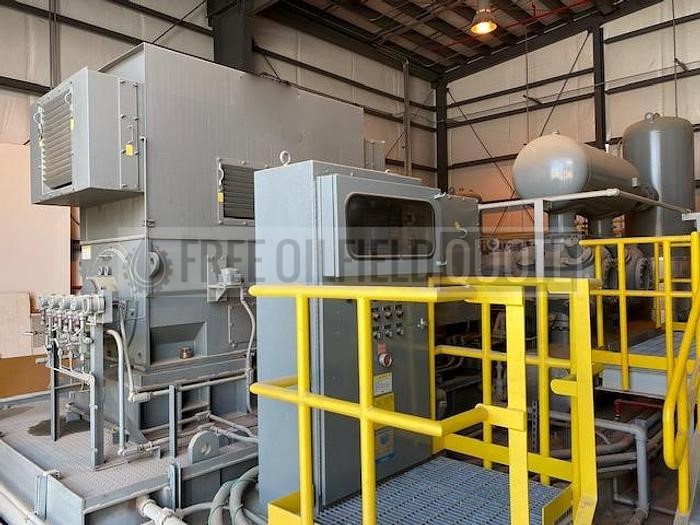

Toshiba 3 Phase Induction Electric Motor

• HP: 3100
• RPM: 1185
• Model: J3107NLULIOT
• Type: TIKE-DCW
• Volts: 4160
• Amps: 378
• Frame: 450-1600
• Poles: 6
• Hz: 60
• S.F.: 1.15
• Rating: Continuous
• Weight: 15,400 lbs
• SN: 0140041

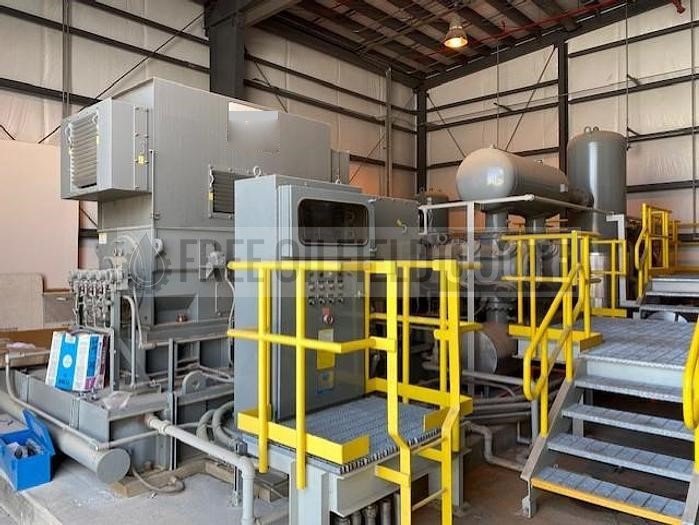

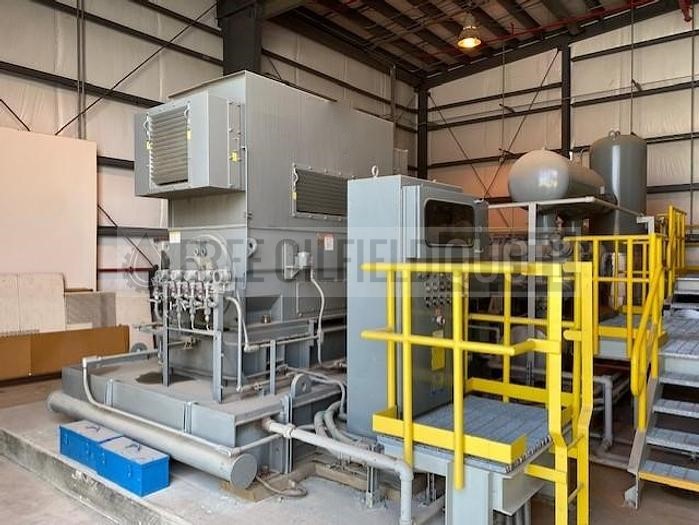

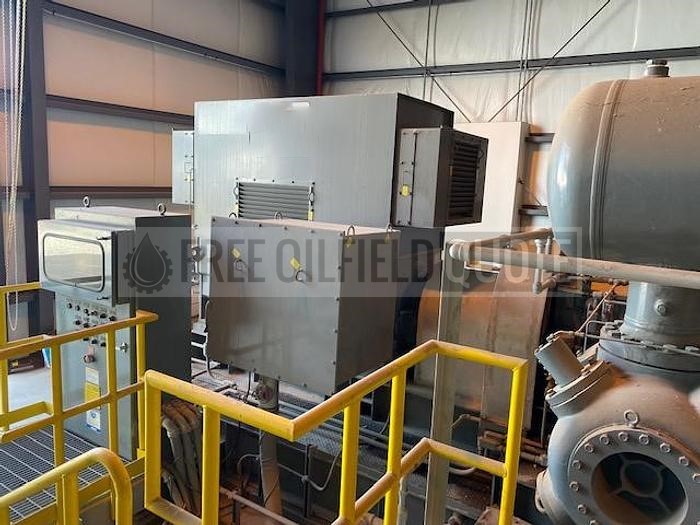

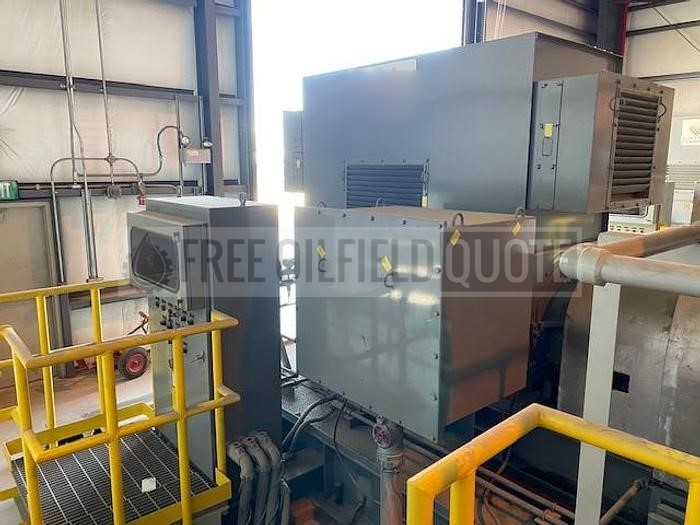

KCI Compressor Control Panel

SN: KCI-1009A

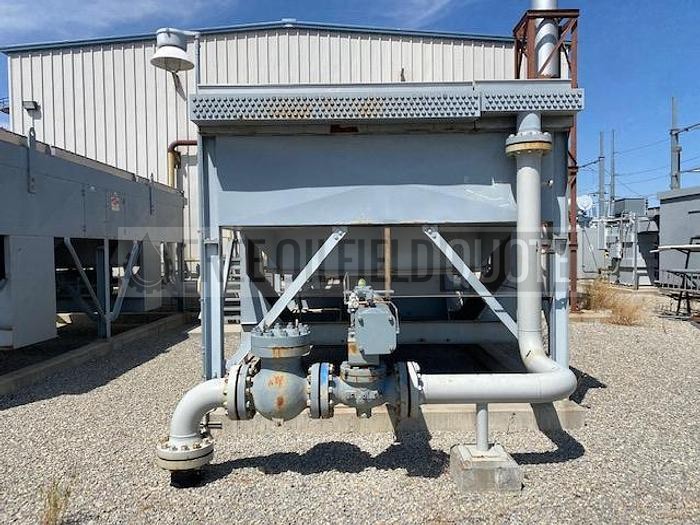

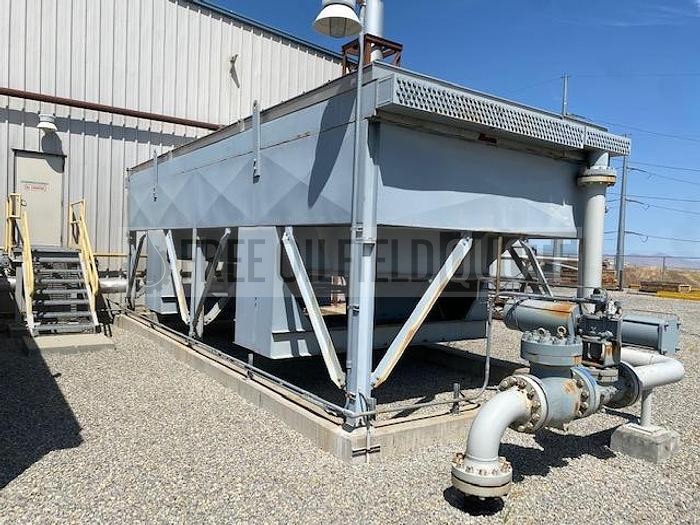

ACE cooler

• Model: E120-2B
• Ref Number: KC-1009A
• SN: 01340

Specifications

• Serial Number: F-16652
• Stock Number: CS-0019873
• Driver MFG: Toshiba
• Driver Model: J3107NLULIOT
• Number of stages: 2
• Cylinder Sizes: 13.625in x 9.125in
• Cooler MFG: ACE
• Cooler Model: E120-2B
• RPM: 1200
• Rod load: 114,000 lbs
• SN: F-16652
• Bore Size: 13.625in
• MAWP: 815
• Class: D
• SN: C-50862
• Bore Size: 9.125in
• MAWP: 1270
• SN: C-50864
