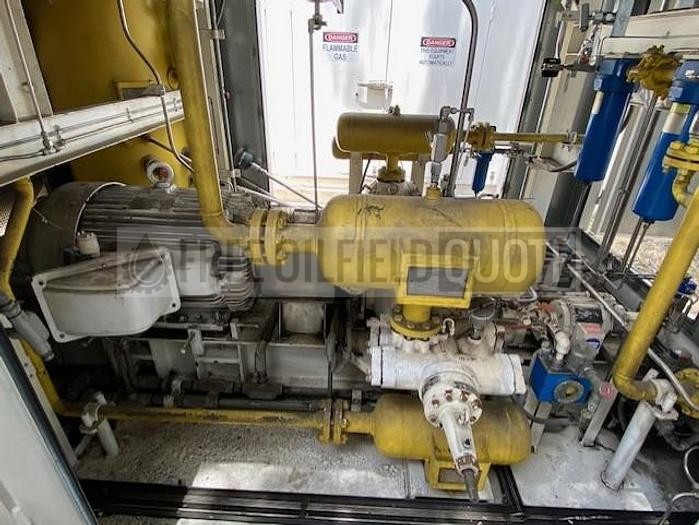

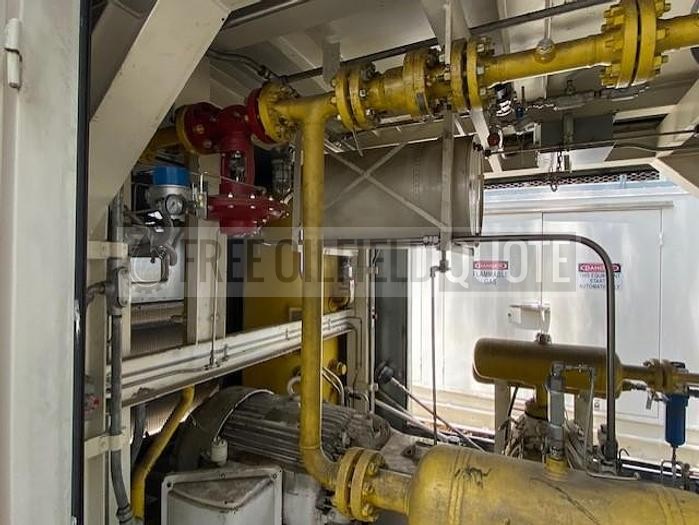

Ariel JGQ-2-3-200 HP VFD Electric Drive 3 Stage CNG Compressor Packages

Manufacturer: Ariel
Model: JGQ-2
Type: Used
Location: Bakersfield, CA

Ariel JGQ-2-3-200 HP VFD Electric Drive 3 Stage CNG Compressor Packages Details

• (3) ARIEL JGQ-2-3/200 HP VFD electric drive CNG compressor packages Size 3.25in x 3.375in x 1.75in packaged by Exterran in 2007
• 150 psi -400 psi suction pressure
• 4500 psi discharge pressure
• 321 SCFM-947 SCFM

Unit A/B/C

• Ariel Compressor Frame
• Model: JGQ-2
• S/N: F-28649/F-28650 / F-28651
• Teco Westinghouse Electric Motor
• 200 HP @ 1785 RPM
• Model: Max-E2
• S/N: AS.AC06A095-25 / DS.AC06C061-1/DS.AC06C061-3

First Stage Cylinder

• Ariel JGM Cylinder
• Bore: 3.250in
• MAWP: 1050
• S/N: C-92971 / C-92974 / C-92977

Second Stage Cylinder

• Ariel SG Tandem Cylinder CE
• Bore: 3.375in
• MAWP: 3000
• S/N: C-92970 / C-92973 / C-92976

Third Stage Cylinder

• Ariel SG Tandem Cylinder HE
• Bore: 1.75in
• MAWP: 6100
• S/N: C-92989/C-79115/C-79124
• ACE Gas Cooler
• Model: C321-2M
• S/N: 0717201/0717202 / 0717203

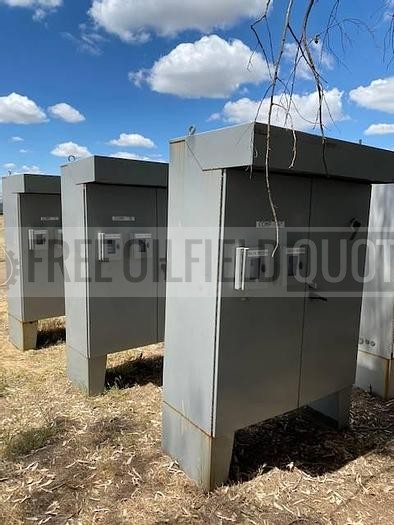

Exterran Control Panel

• Model: CCP-01 / CCP-02 / CCP-03
• S/N: US-106258/US-

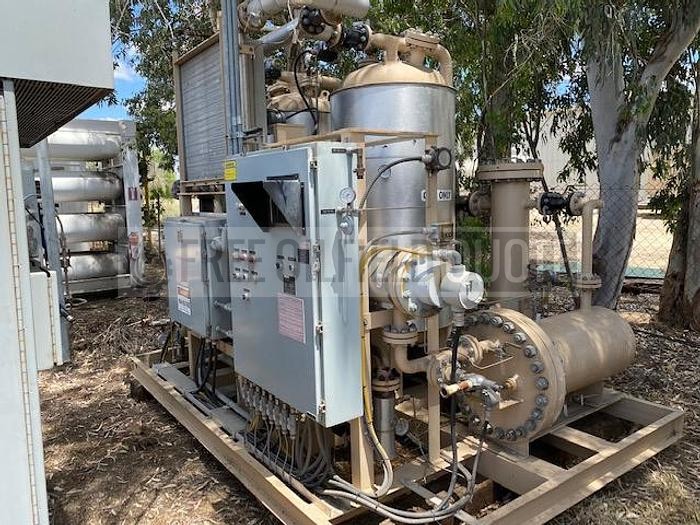

• Xebec Gas Dryer
• Type: HRB Dryer
• Model: 200 HRBNGX-600
• S/N: 18314
• 460 V 3 Ph 60 HZ 85 Amps
• Class 1 Div 2 Group D
• Temperature Rating 720 Deg F
