Designed for continuous duty in the gas and oil industry, these medium-speed separable reciprocating compressors feature a wide range of cylinders, making them the industry choice for standard and specialized applications.

FEATURES

Full Pressure Lubrication: A frame-driven lube oil pump provides cooled oil through a
full-flow oil filter to all moving parts in the frame. A divider-block system supplies metered oil to cylinder bores and rod packings.
High-Strength Bolting: Durable Grade 8 bolting on all loaded joints combined with
specially designed fatigue-fighting bolts on all valve caps ensure ultimate holding strength.
Rigid Connecting Rods: The JGE/JGK/JGT compressors feature durable connecting rods manufactured from forged steel with 4 bolts and a heavy-duty “I” section.

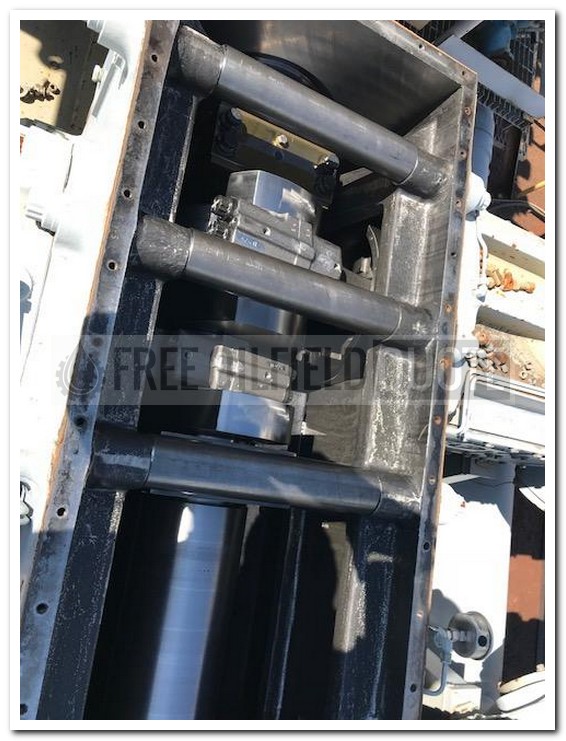

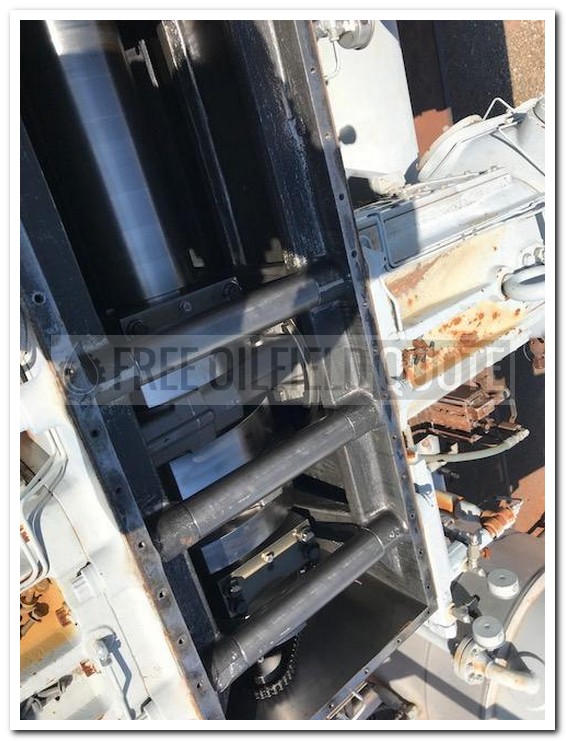

Rugged Cross heads: One-piece, long-life cross heads with hardened, ground steel
cross head pins and direct, full-pressure lubrication at the top and bottom for minimum
wear.
Innovative Cylinders: Ariel’s single and double-acting non-cooled cylinders eliminate the cost and maintenance associated with water cooling.
Durable Pistons and Rods: JGE/JGK/JGT compressors feature wear-resistant ductile or gray iron pistons and precision-ground alloy steel piston rods with locking crosshead nuts.Rolled threads are 1/4” under rod diameter for easy installation.
Precision Bearing Shells: Every Ariel compressor features precision-machined tri-metal
main and connecting rod bearings.
Versatile Unloading Devices: Ariel offers manual, head-end variable volume clearance
pockets on most cylinders. Pneumatic suction valve un-loaders are available on a limited basis.
Efficient Valving: Plate-type valves are designed for modern speeds, utilizing nonmetallic sealing elements as standard. Valves are selected to comply with established low valve velocity standards.
Heavy-Duty Crankshafts: JGE/JGK/JGT compressors feature forged steel, precision machined crankshafts with integral counter-weights manufactured by Ariel Corporation.
High-Efficiency Spin-on Oil Filters: Ariel JGE/JGK/JGT compressors feature high efficiency non-bypassing spin-on oil filters rated at 5 micron nominal and 17 micron absolute.
Rugged Crankcases: Ariel crankcases are designed for long service life and ease of access during maintenance. Our crankcases feature a heavily-ribbed, high-strength cast iron base with a removable lightweight aluminum top cover.

ENGINE OVERVIEW
Cat 3516 engines set the standard in the drilling industry. For many years the 3500 has been the preferred choice by drillers due to their high performance, durability, and reliability in the oilfield.The ideal application for the 3512 engine is mechanical drive for land drilling rigs.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.3516 engines, with ratings: 1230 bkW (1649 bhp) @ 1200 rpm. Not emissions certified, available for non-regulated areas.

ENGINE SPECIFICATIONS
Minimum Rating 1649.0 BHP
Maximum Rating 1649.0 BHP
Emissions Non-certified
Rated Speed 1200.0 r/min
Bore 6.69 in
Stroke 7.48 in
Displacement 4210.0 in³
Aspiration Turbocharged-Aftercooled
Governor and Protection W3161
Engine Weight - Net Dry 19090.0 lb
Oil Change Interval 500
Rotation from Flywheel End Counterclockwise
Flywheel and Flywheel Housing SAE No. 00
Flywheel Teeth 183

CAPACITY FOR LIQUIDS

Minimum Cooling System - Engine Only 61.5 gal (US)

PERFORMANCE
JGE: up to 3,210 BHP / 1,500 RPM
JGK: up to 3,810 BHP / 1,200 RPM
JGT: up to 3,900 BHP / 1,500 RPM

DIMENSIONS
Length 128.0 in
Width 67.0 in
Height 78.9 in

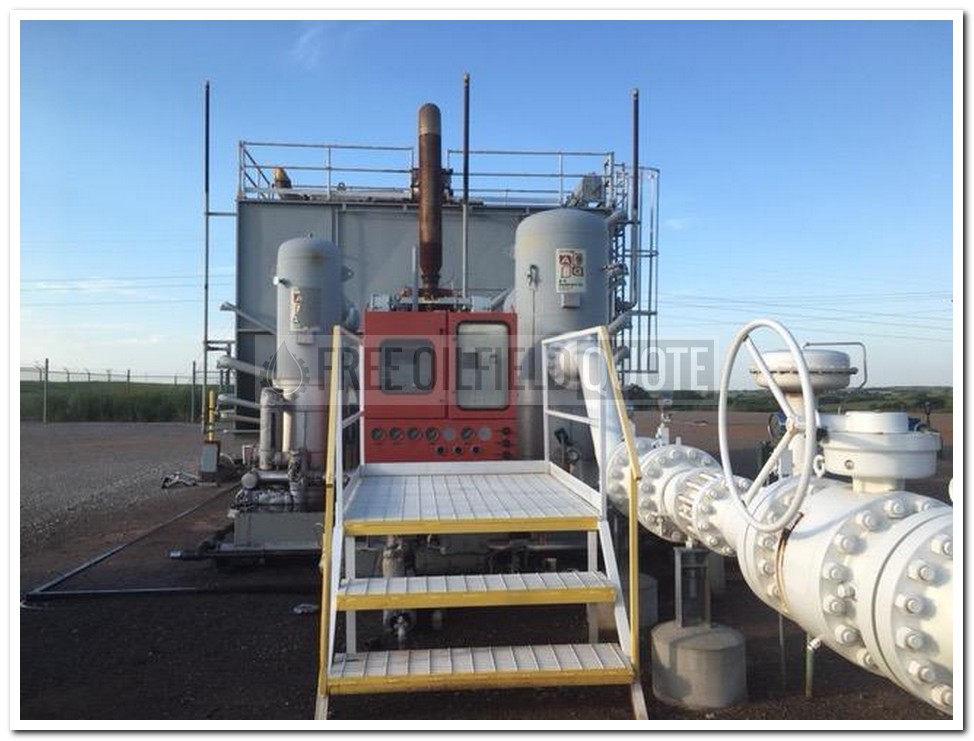

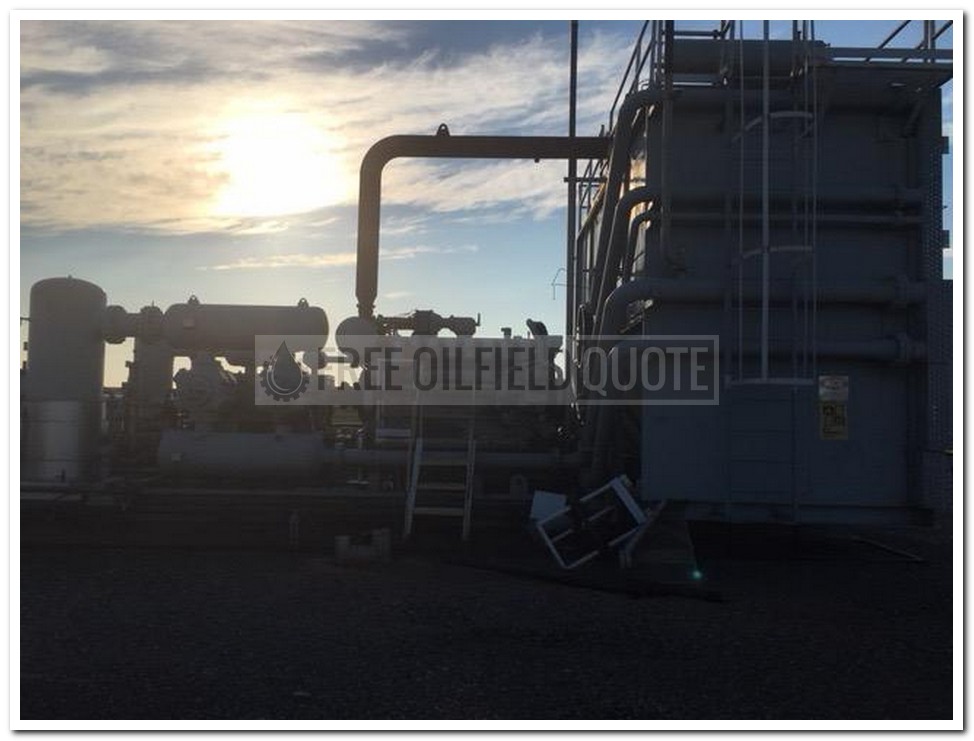

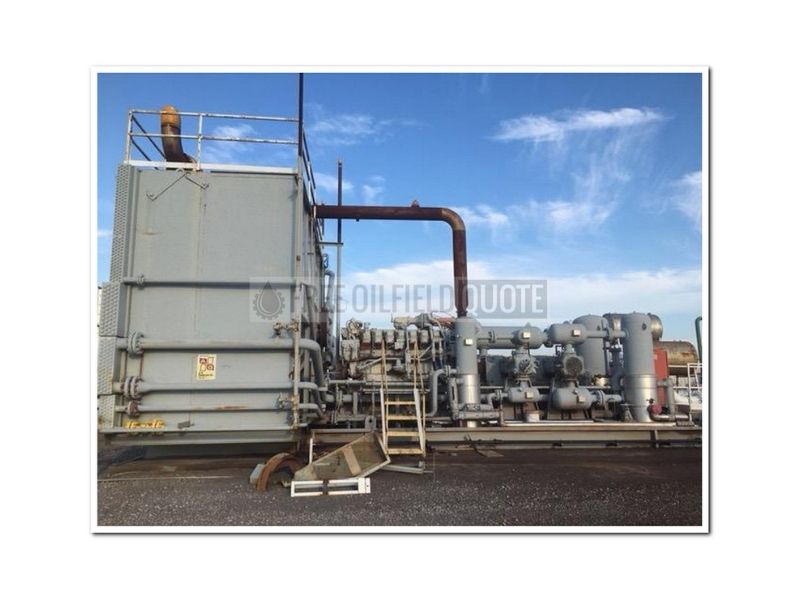

Unit #3 November 2006 CAT 3516 WPW... 1340HP ARIEL JGT-4 15.25" 15.25 9.75" 6.00" Engine Hours 8,820 Comp. Hours 22,181

Unit #49 September 2006 CAT 3516 WPW... 1340HP ARIEL JGT-4 14.125" 14.125" 11.00" 7.250" Engine Hours 57,569 Comp. Hours 9,221

Unit #14 Build Date: ??? CAT 3516 WPW... 1340HP ARIEL JGT-4 13.50" 13.50" 9.75 6.375" Engine Hours 69,992 Comp. Hours 17,392

Unit #24 Build Date: September 2008 CAT 3516 WPW... 1340HP ARIEL JGT-4 13.50" 13.50" 9.75" 6.375" Engine Hours 69,986 Comp. Hours 16,565

Unit #25 Build Date: TBD CAT 3516 WPW... 1340HP ARIEL JGT-4 13.50" 13.50" 9.75" 6.00" Engine Hours 15,656 Comp. Hours 15,565
