4ft x 20ft 85# MAWP Vertical Heater Treater

Manufacturer: Triple S Oilfield & Construction
Model: 85# MAWP
Year of Manufacture: 2019
Dimensions: 4ft x 20ft
Type: New
Location: Texas

4ft x 20ft 85# MAWP Vertical Heater Treater Details

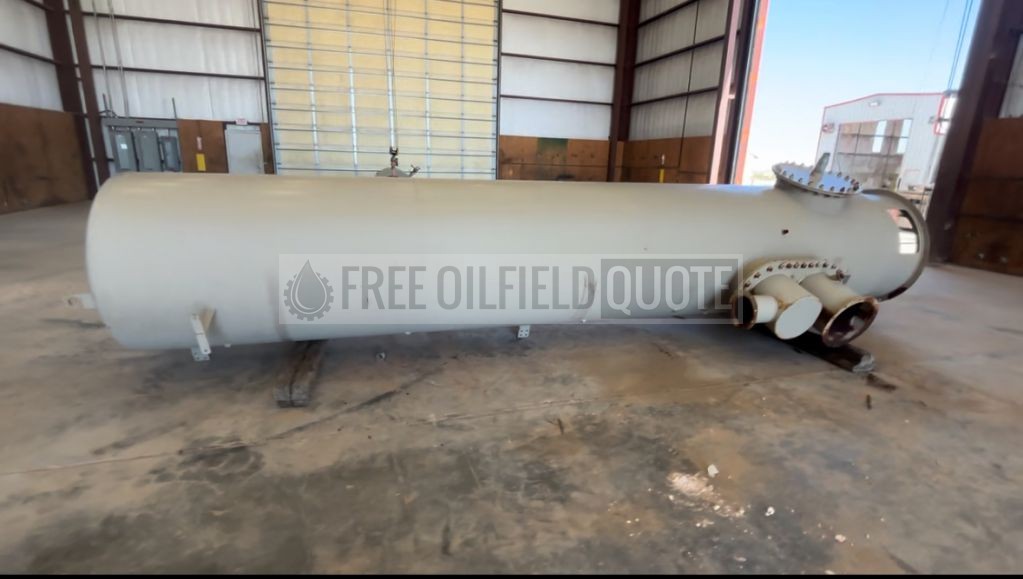

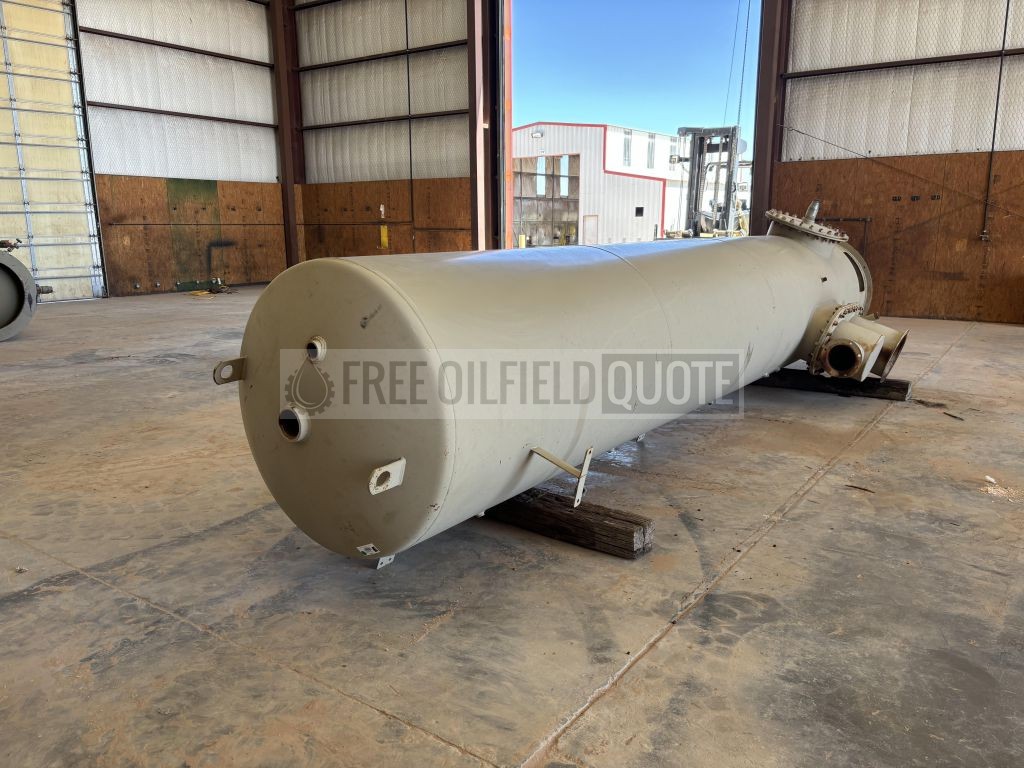

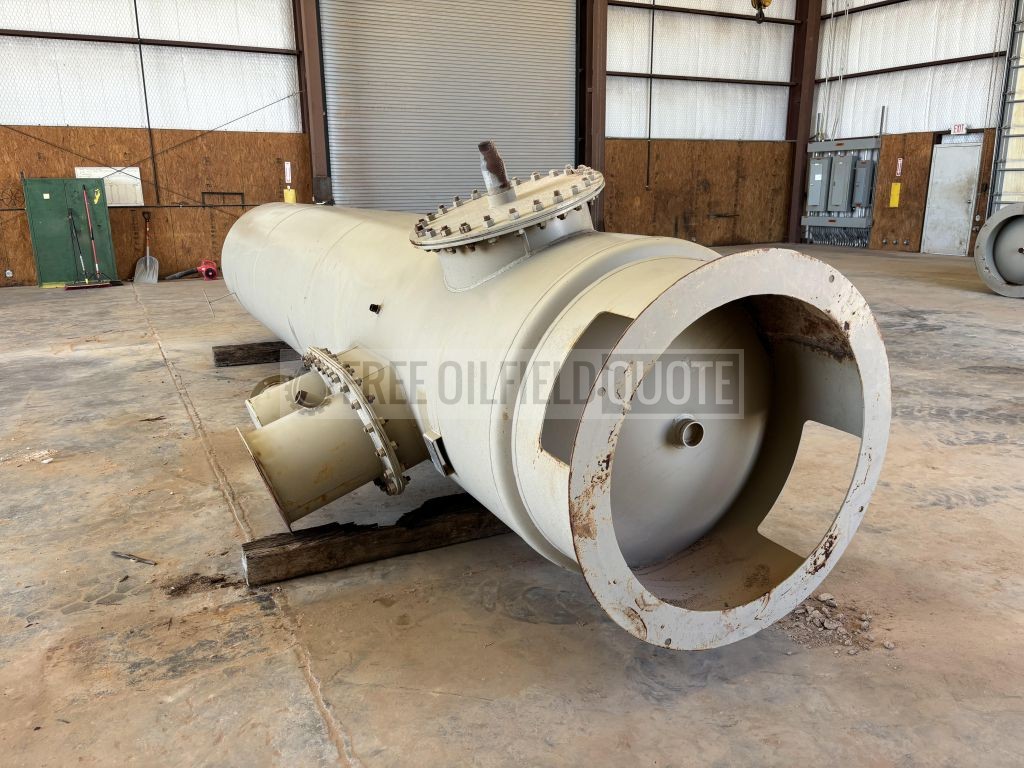

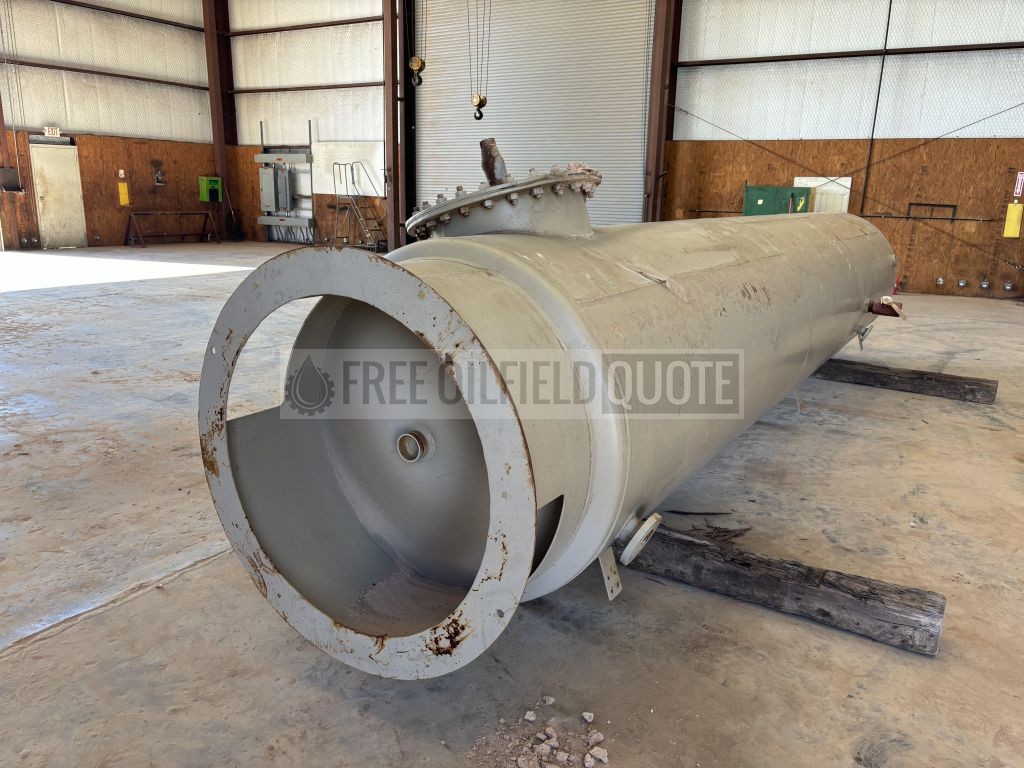

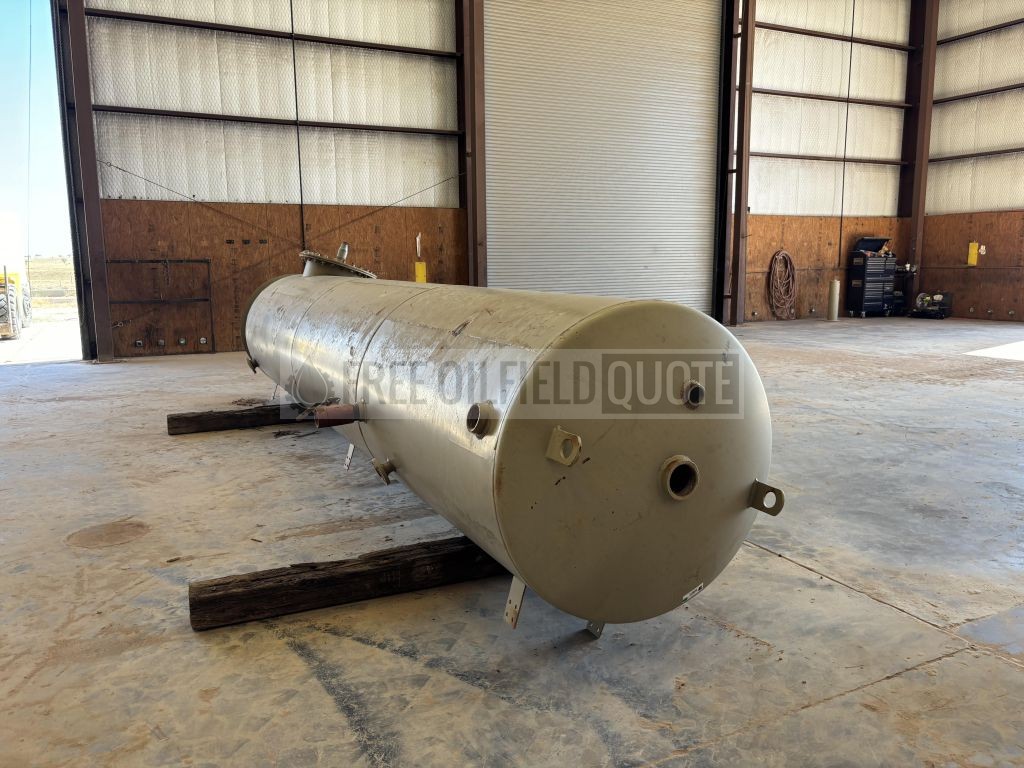

Vertical 4x20 85# unused non-code heater treater. All nozzles are threaded, with a 3in inlet and gas outlet. External water leg, heater stack and ladder included. Firetube is 16in diameter with an 8in stack.

4ft x 20ft 85# MAWP Vertical Heater Treater Specifications

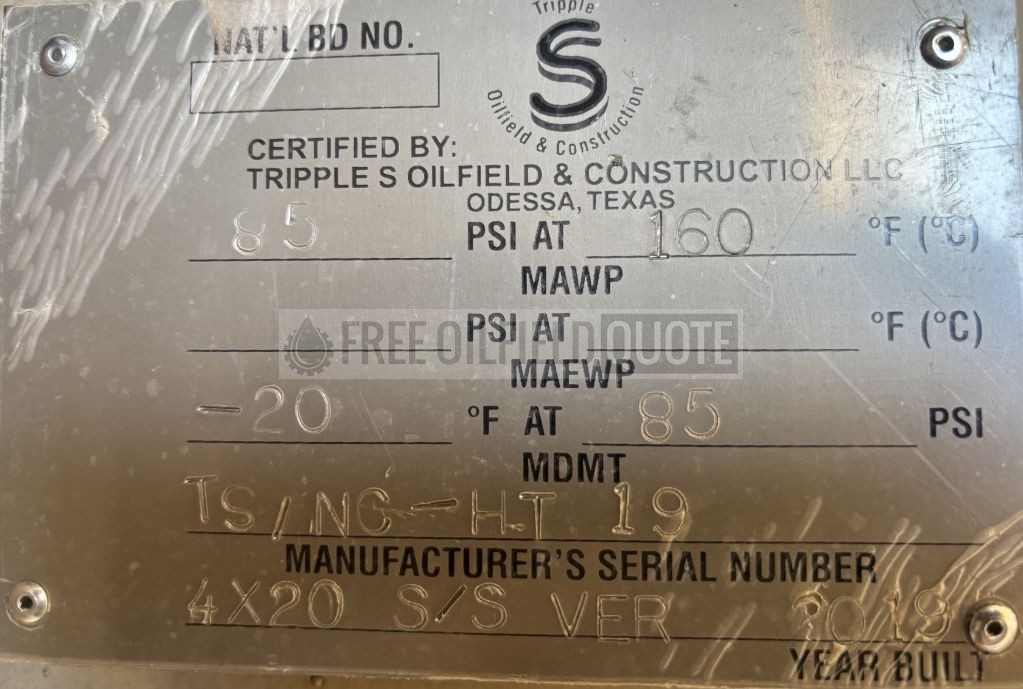

• Serial Number: TS-NC-HT 19
• Vessel Orientation: Vertical
• Subcategory 2: Non-Code
• Pressure Rating (psi): 85
• Vessel Outside Diameter (in.): 48
• Vessel s/s Length (in.): 240
• Inlet & Outlet Connection Type: Threaded
• Inlet & Outlet Diameter (in.): 3
• Fire Tube Diameter (in.): 16
• Stack Diameter (in.): 8
• Accessories: water leg, stack and ladder
• Certification: None
• Wear and Tear: Normal
• Origin Code: OC01
