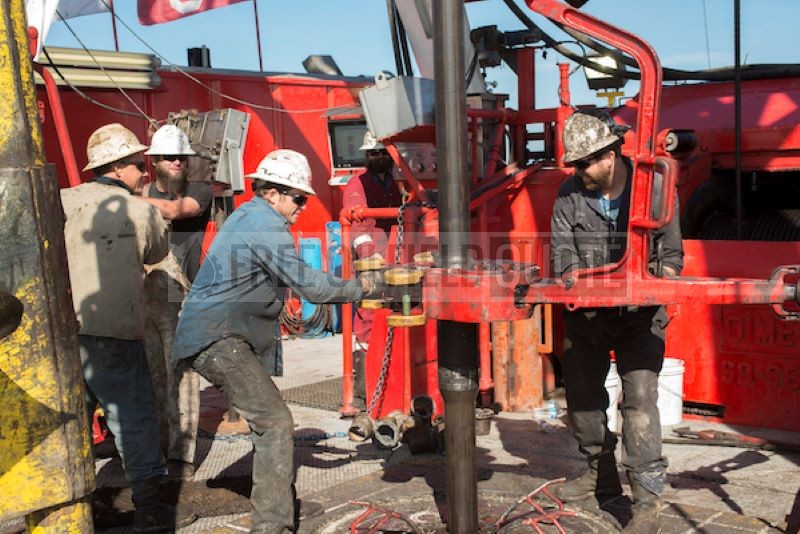

1000HP E Drill Rig-Complete Hot Stacked

Location: USA

Type: Used

Condition: Excellent

1000HP E Drill Rig-Complete Hot Stacked Details

DRAWWORKS

D1000E Drawworks with 2-DC 752 Motors Grooved for 1 -1/4in Drill Line

424 Air Operated Water Cooled Aux-Brake

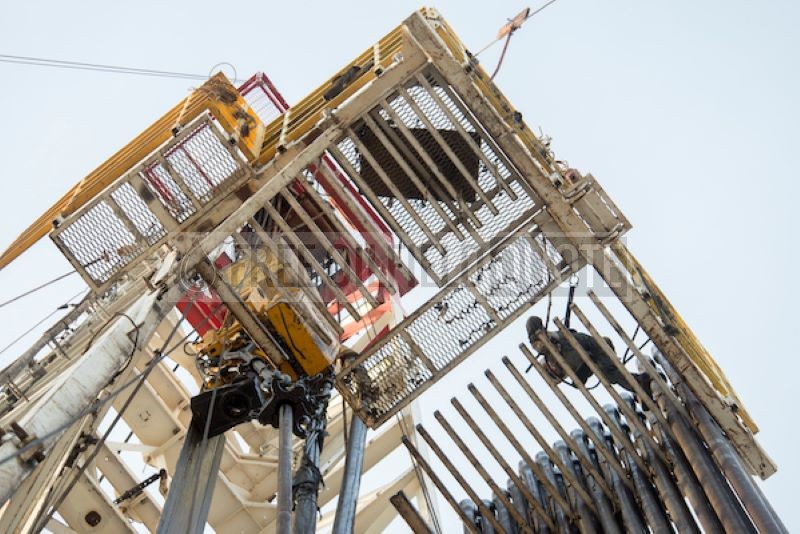

DERRICK

DSII

142ft Triple Derrick or 110ft Double 550,000# Static Hook Load with 10 Lines

SUBSTRUCTURE

DSII

12ft 6in Rotary Beam Clearance, 17ft RKB 16ft Box On Box Substructure

POWER SOURCE

(2) Caterpillar 3512Cs Tier 4 with 1235 KW Generators Ross Hill 3 Bay SCR House

(3) Emsco type F-1000 6 -3/4in x 10in Triplex powered by one 752 DC motor

Low-Pressure Mud Mixing System with Two 5in x 6in Centrifugal Pumps with 60 HP Electric Motors

DRILL STRING

Drill Pipe – 4 -1/2in Grade G-105 16.60, X-Hole with Hard band Drill Collars – 6in – 6 -1/2in OD NC44 with Hard band

Pipe Spinner

PREVENTERS

(1) Shafer Hydril 11in Annular w.p. 5000 psi

(1) NL Shafer 11in Type LWS 5000 psi Space Saver Double Rams

(1) CPC Closing Unit (4) Station 3000 psi with 25 HP Electric Motor with Triplex Pump (2) Air Pumps CS-01108,

(8) 10 Gallon Bladder Type Bottles with remote

Choke Manifold – 5000 psi 4in x 2in with two Adjustable Chokes

OTHER EQUIPMENT

Warrior 250 Ton Top Drive

Crown Block – DSII, (5) Sheaves

Traveling Block – YG-225-250 Ton – (5) 36in Sheaves

Cold start – QT 7.5

Weight Indicator – AOI

Rotary – 27 -1/2in x 53 -1/4in 275

Air Compressors – (2) Quincy 120 screw type

Air dryer OHD

Fuel Tank with Lubester – 8000 Gallon

Wireline Unit – Mathey Model GC3-B2 type, .092 Line

Mud Tanks – Two Tank System, Round Bottom 560 Barrels with Electric Agitators

2 Shaker – Derrick 503 Type Linear Motion

Desander – Brandt, (2) 12in Cones with Mission Magnum 5in x 6in Centrifugal Pump with 75 HP Electric Motor

Desilter – Brandt, (12) 4in Cones with Mission Magnum 5in x 6in Centrifugal Pump with 75 HP Electric Motor Degasser – Derrick Drilco type

315 Barrel Drill Water Tank

Hydraulic Walking System

OFI Automatic Driller

Notes:

1,000 HP ELECTRIC SCR | 142ft or 110ft-550,000# Static Hook Load Triple or Double | Twin F-1000 HP 6 3/4in X 10in Triplex | Hydrill 11in 5,000 psi double rams
