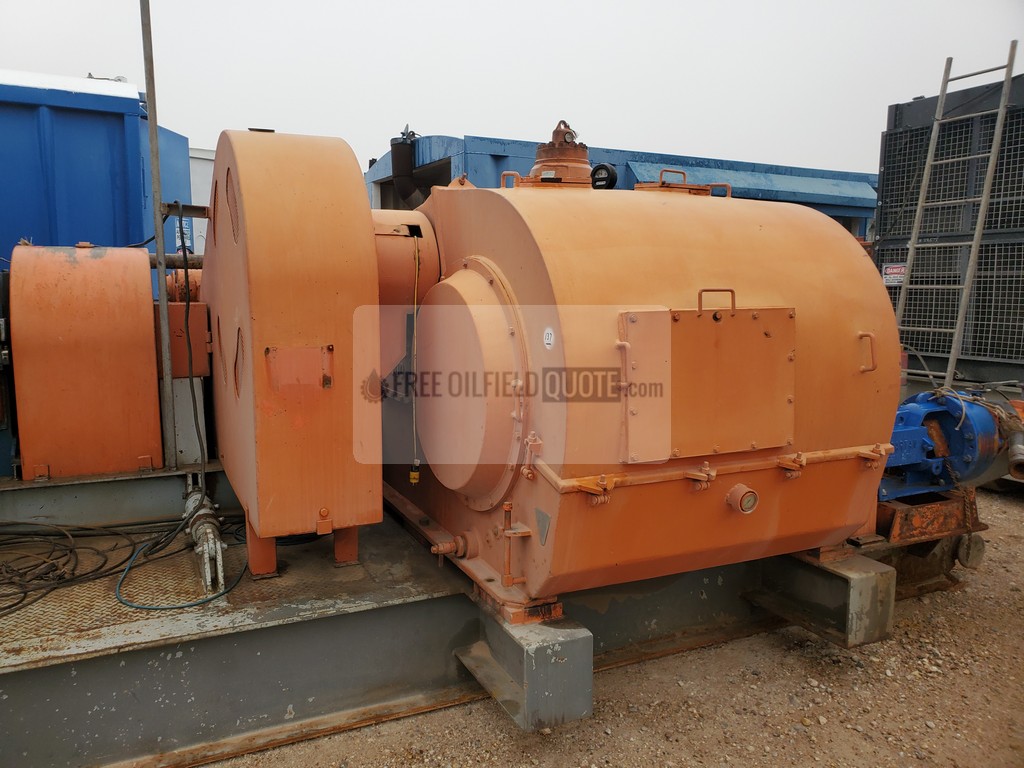

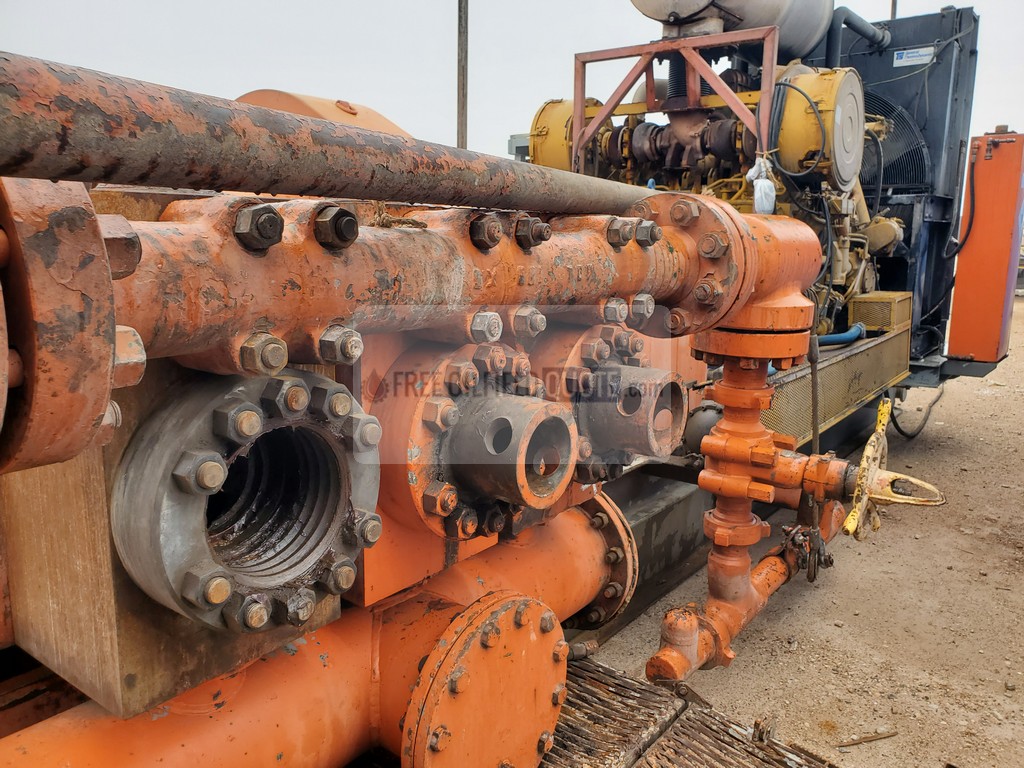

Used BOMCO Triplex Mud Pump Skid

• Price: $50000
• Location: New Mexico
• Manufacturer: BAOJI OILFIELD MACHINERY CO. LTD. (BOMCO)
• Year: 2013
• Quantity: 2
• Condition: Good
• Type: Used

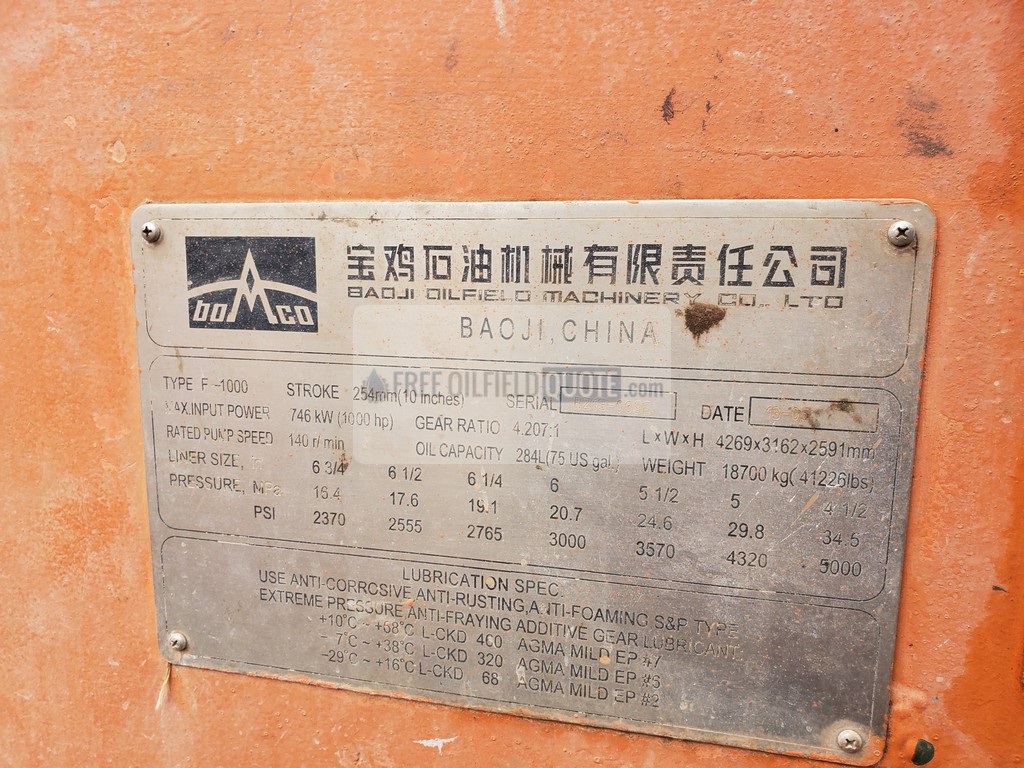

Used BOMCO Triplex Mud Pump Skid Specification

Serial No. BZ13-009E

Type : F-1000

Stroke: 254mm(10 inches)

Max Input Power : 746 kW(1000hp)

Rated Pump Speed : 140r/min

Gear Ratio: 4.207:1

Oil Capacity: 284L (75 US gal.)

L x W x H : 4269 x 3162 x 2591 mm

Weight: 18700 kg (41226 lbs)

Manufactured Date: May 2013

Make: BOMCO

Liner Sizes,Pressure, MPa and PSI

1. Liner Size,in : 6 3/4

Pressure, MPa : 16.4

PSI: 2370

2. Liner Size,in : 6 1/2

Pressure, MPa : 17.6

PSI: 2555

3. Liner Size,in : 6 1/4

Pressure, MPa : 19.1

PSI: 2765

4. Liner Size,in : 6

Pressure, MPa : 20.7

PSI: 300

5. Liner Size,in : 5 1/2

Pressure, MPa : 24.6

PSI: 3570

6. Liner Size,in : 5

Pressure, MPa : 29.8

PSI: 4320

7. Liner Size,in : 4 1/2

Pressure, MPa : 34.5

PSI: 5000

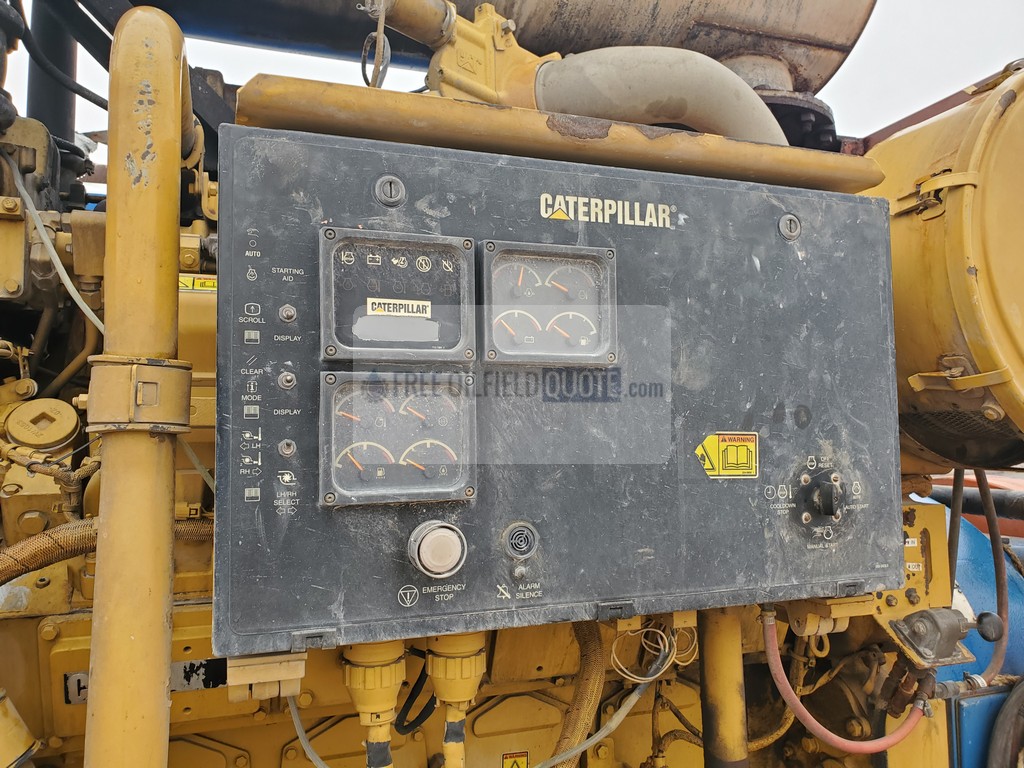

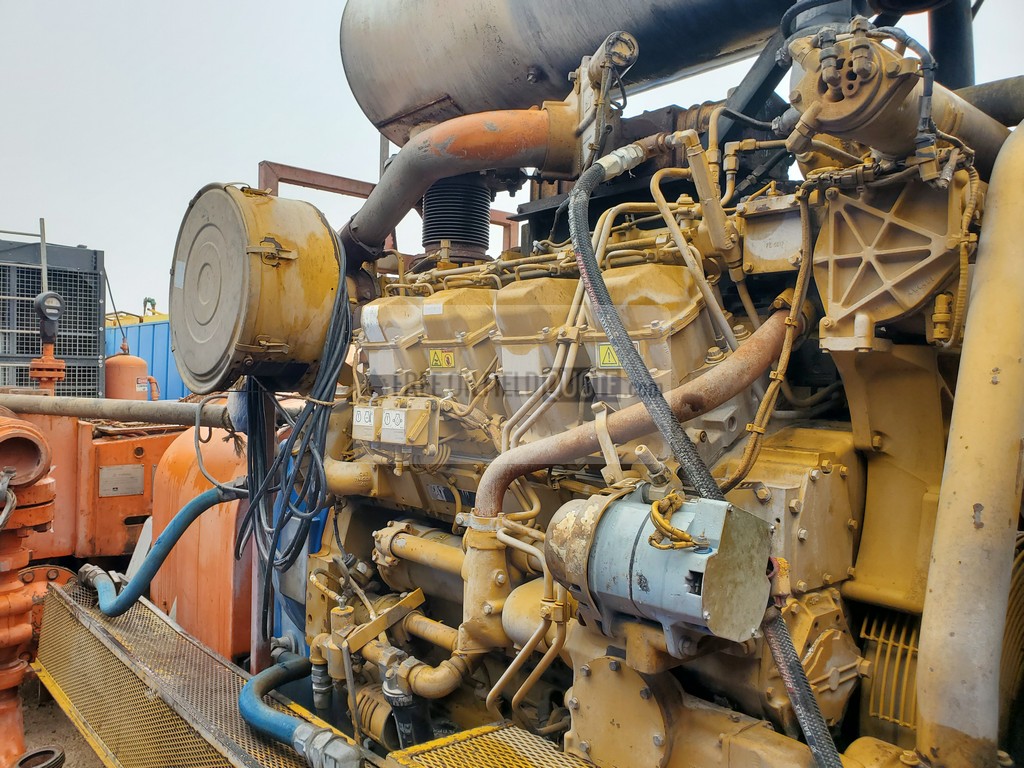

CAT 3508 - ELECTRONIC CONTROLLED ENGINE

POWER RATING

Maximum Power: 1000.0 HP

Rated Speed : 1200-1800 rpm

Minimum Power: 680.0 HP

EMISSION STANDARDS

Emissions Non-Certified

GENERAL

Engine Configuration: V-8, 4-Stroke-Cycle Diesel

Bore: 6.7 in

Stroke: 7.5 in

Displacement: 2107.0 in³

Compression Ratio: 13.0:1

Aspiration: Turbocharged Aftercooled

Rotation from Flywheel End: Counterclockwise

ENGINE DIMENSIONS - APPROXIMATE

Length: 84.0 in

Width: 67.0 in

Height: 68.0 in

Weight - Net Dry - Basic Operating Engine Without Optional Attachments: 9500.0 lb

Loading and Delivery Available for BOMCO Triplex Mud Pump Skid, we can deliver anywhere in the United States!

Important Buyers Notice: All items are Sold "As-Is" with "No Warranty" expressed or implied. Items offered for sale may be damaged, inoperable and/or missing parts. You are strongly urged to carefully review each photo and video as well as personally inspect the item before making a decision to purchase. Free Oilfield Quote is not responsible for any missing or damaged equipment, part, item or accessory and shall not be held liable for any damage prior to or during the removal and/or delivery of the equipment. Any and all agreements contrary to the above disclaimer must be in writing and agreed upon up front and prior to any transaction.
