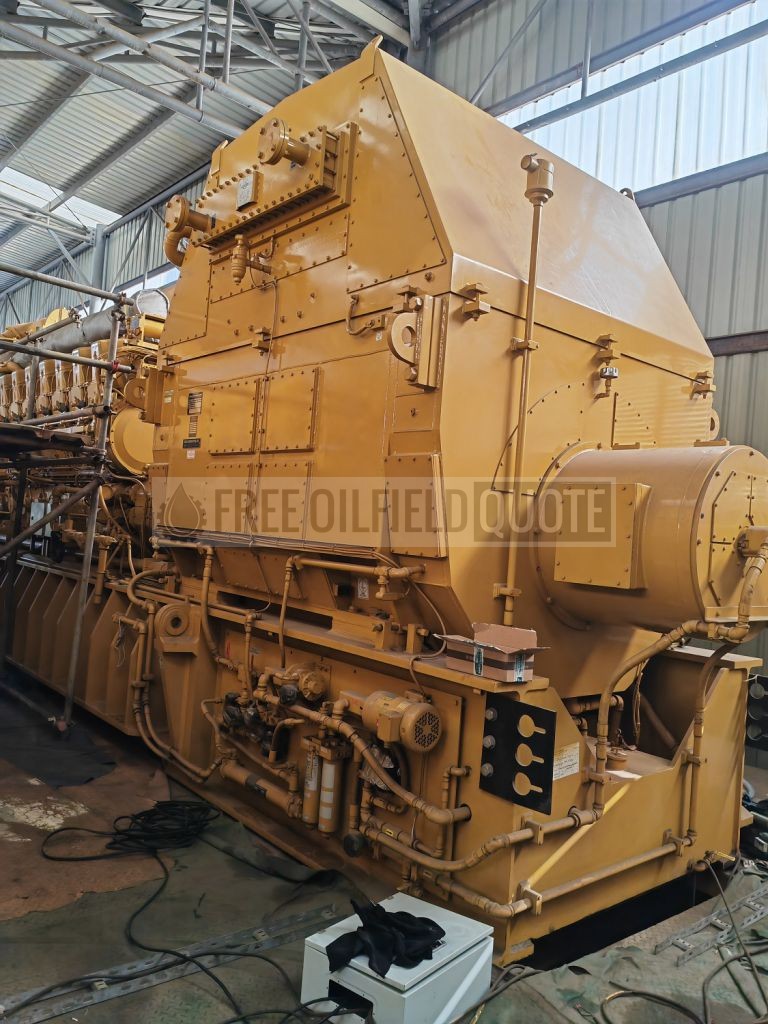

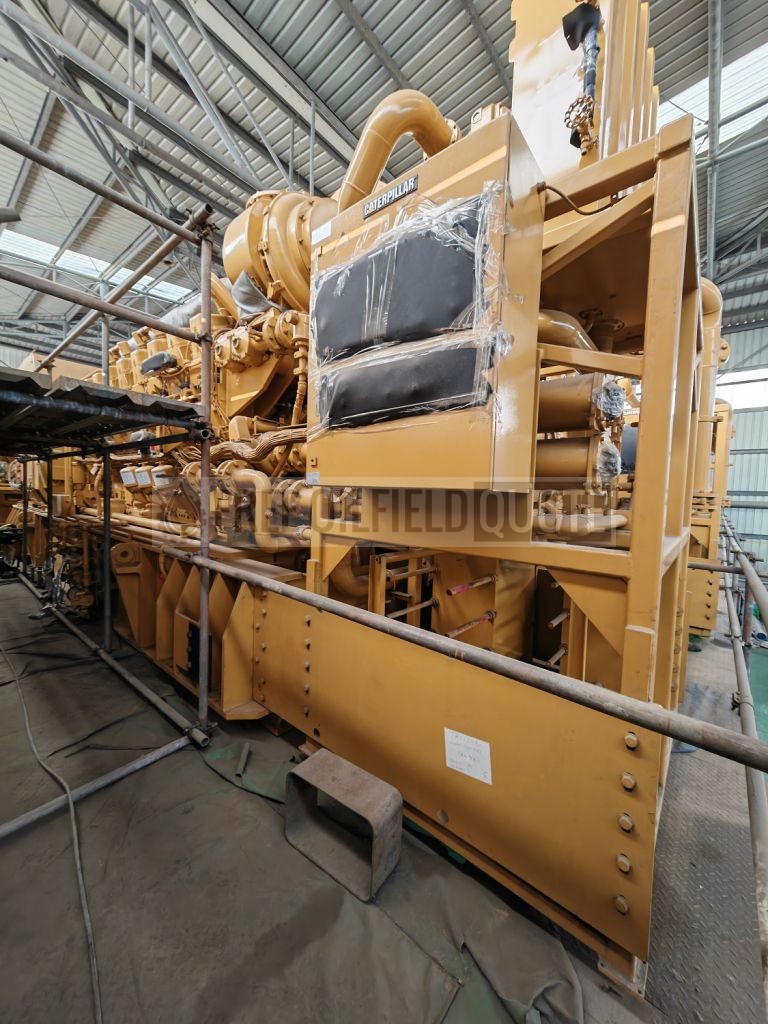

Unused Caterpillar 3616 Industrial Diesel Engine

Manufacturer: Caterpillar

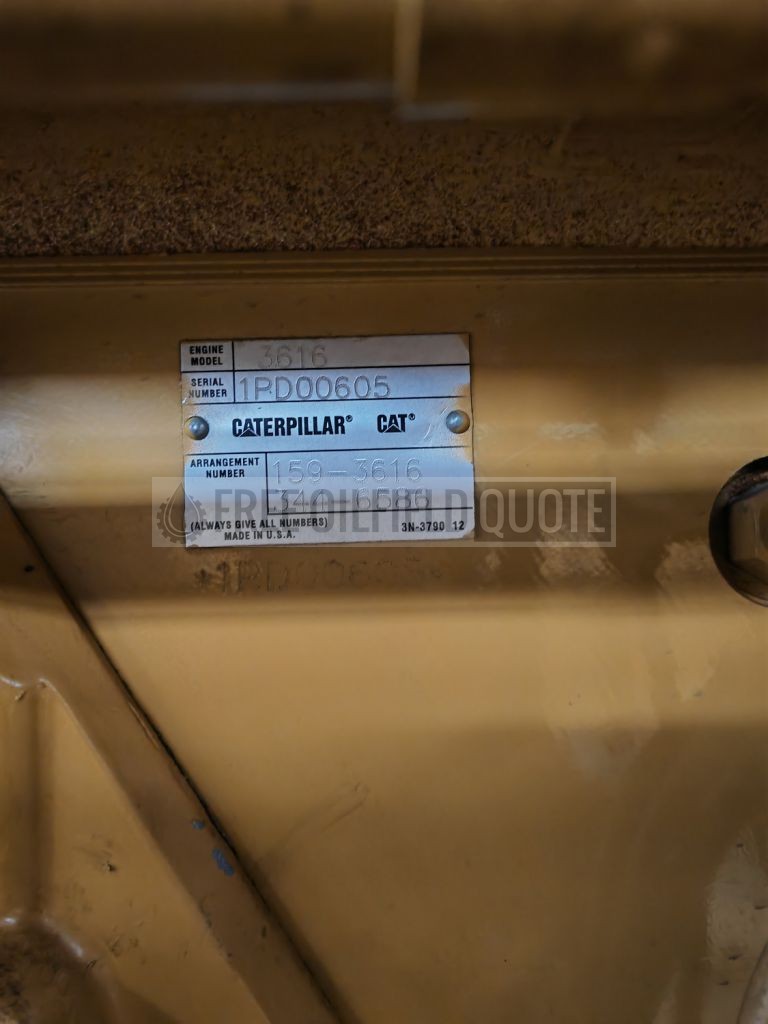

Model: CAT 3616
Year of Manufacture: 2009
Hours: 0
Type: New
Location: Tianjin Port, China

Unused Caterpillar 3616 Industrial Diesel Engine Details

TECHNICAL DATA

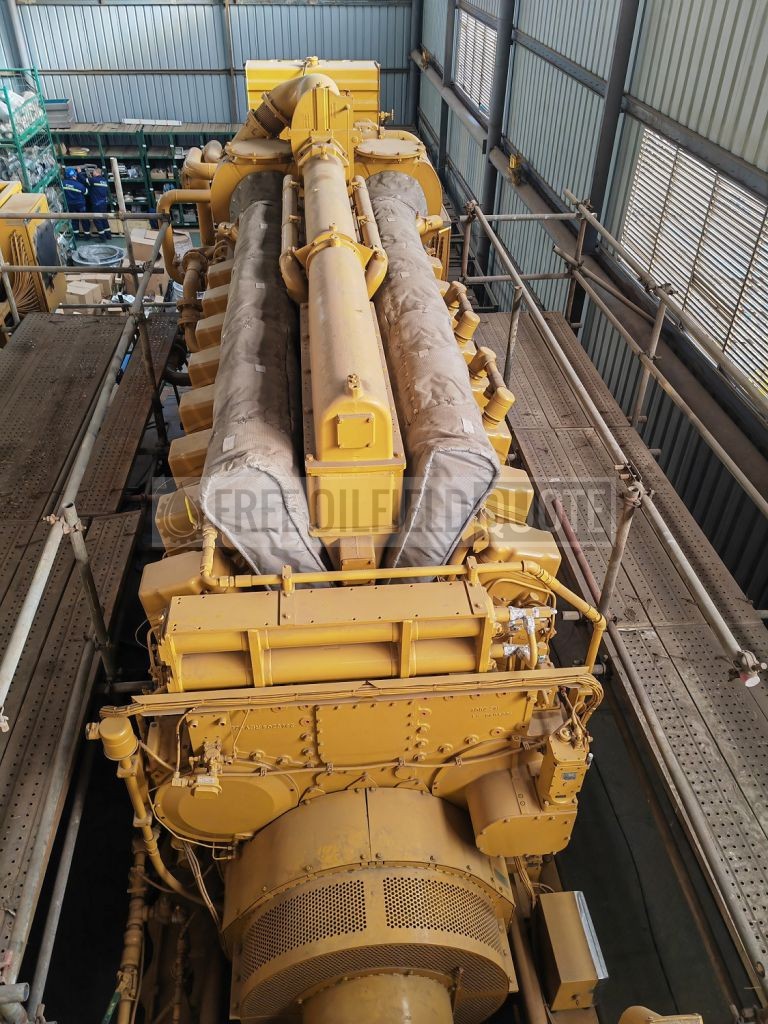

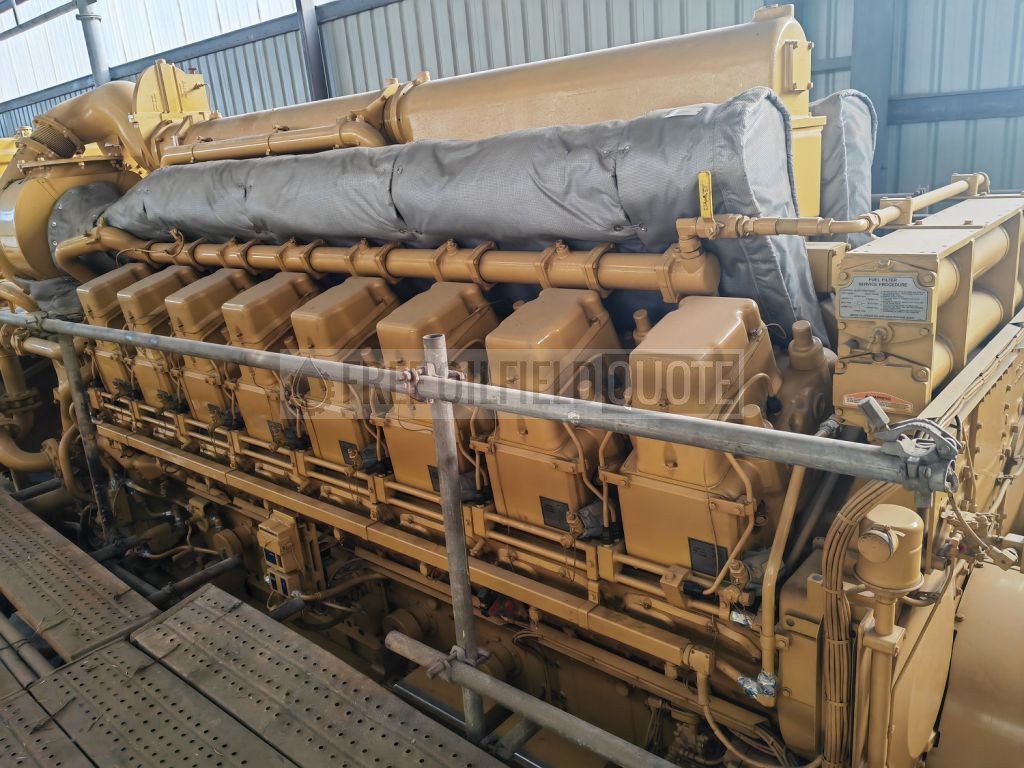

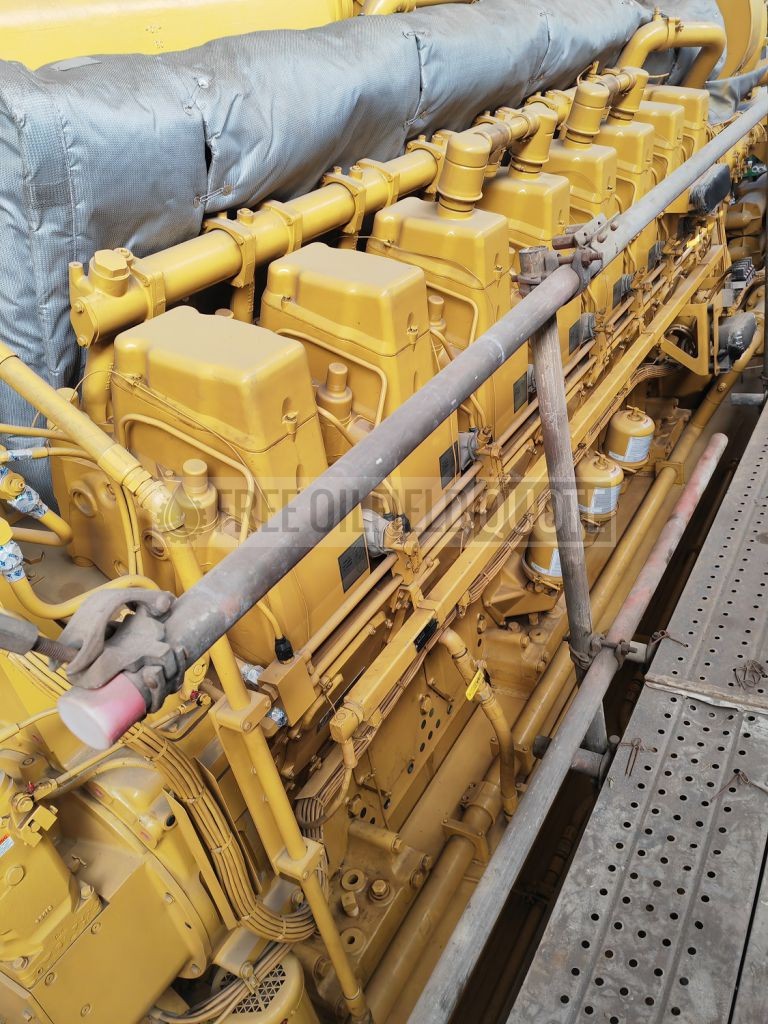

Diesel Engine

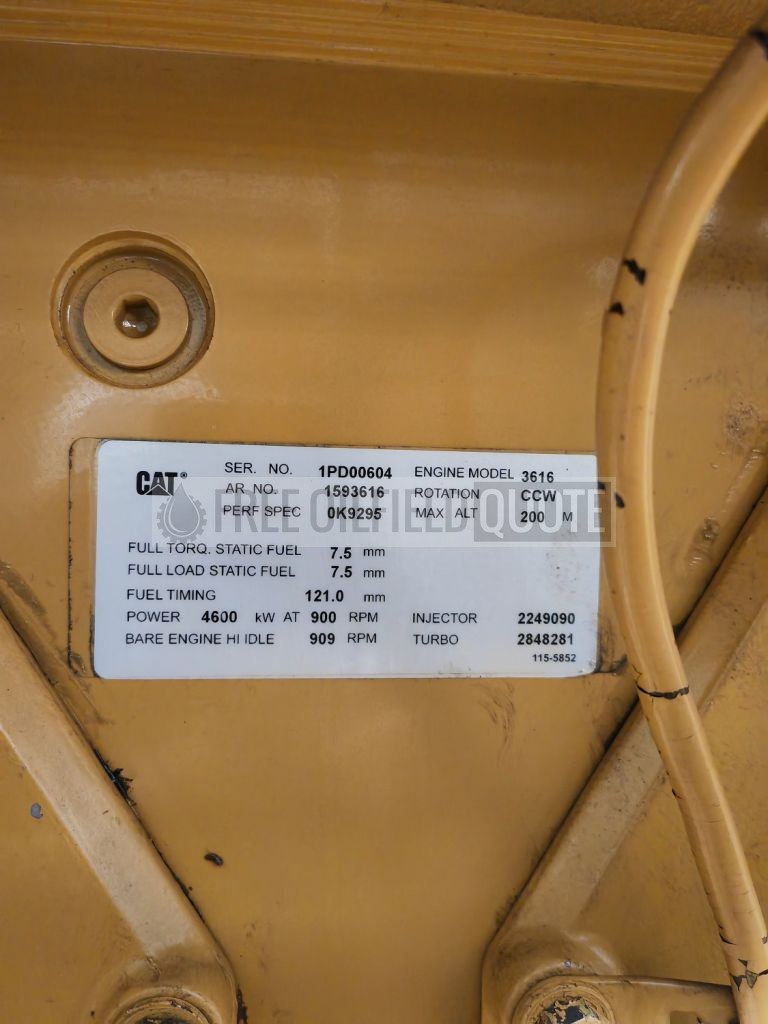

• Model: CAT 3616

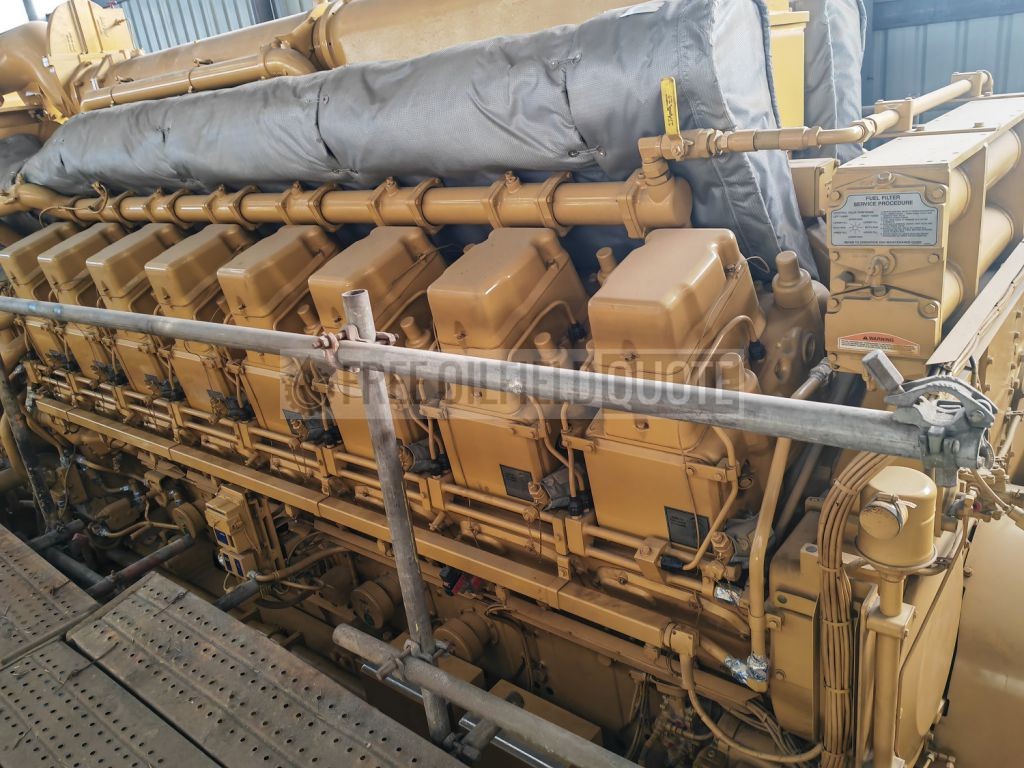

• Type: V-16, 4 cycle
• Aspiration: Turbocharger, Aftercooled
• Rated power max: 4600 bKW
• Rated speed: 900 rpm
• Emission: IMO compliance
• Overload 110% for 1 hr: 5060 bkW
• Rating and emission based on following ambient condition:
• Air inlet of the turbocharger: 45º C
• Barometric pressure: 100 kPa
• Relative humidity: 60%
• Sea water temperature: 32º C
• BSFC (with pump +5 % -0% ) @100% load: 195.5 g/kW-hr
• TBO approx.: 40.000 hours
• Bore/Stroke: 280/300mm
• Displacement: 296 L
• Compression ratio: 13:1
• Firing pressure, max.: 17300 kPa
• BMEP@ 100% load: 2283 kPa
• Mean piston speed: 9.0 m/s
• Engine dry weight (approx): 28,500 kg

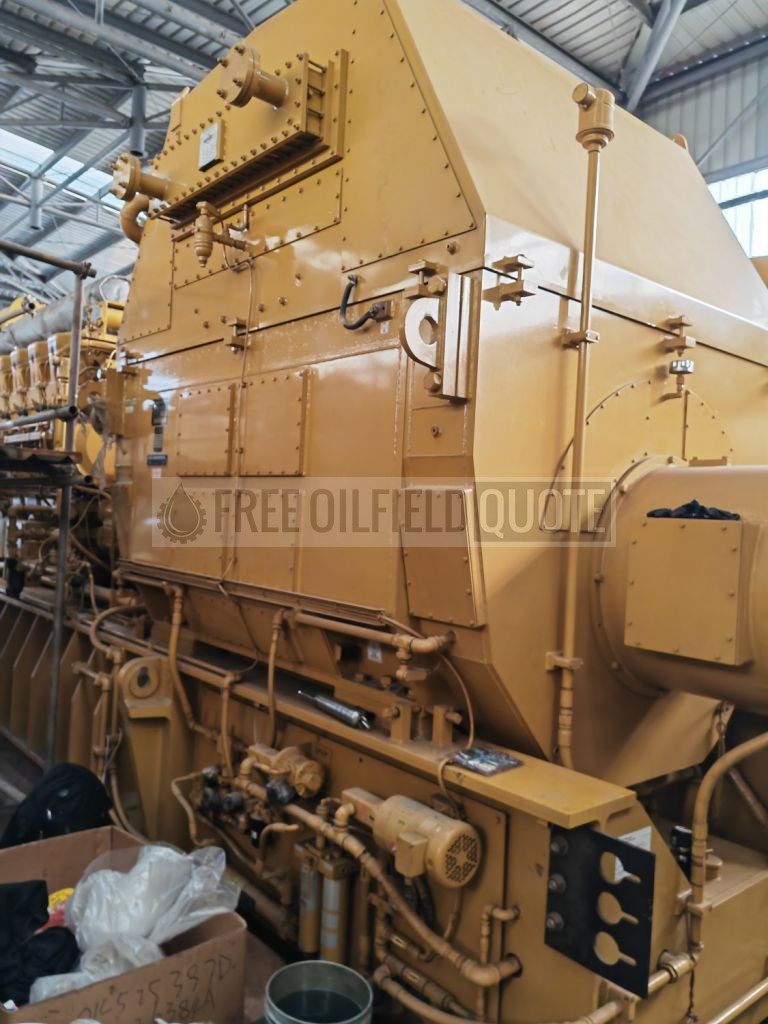

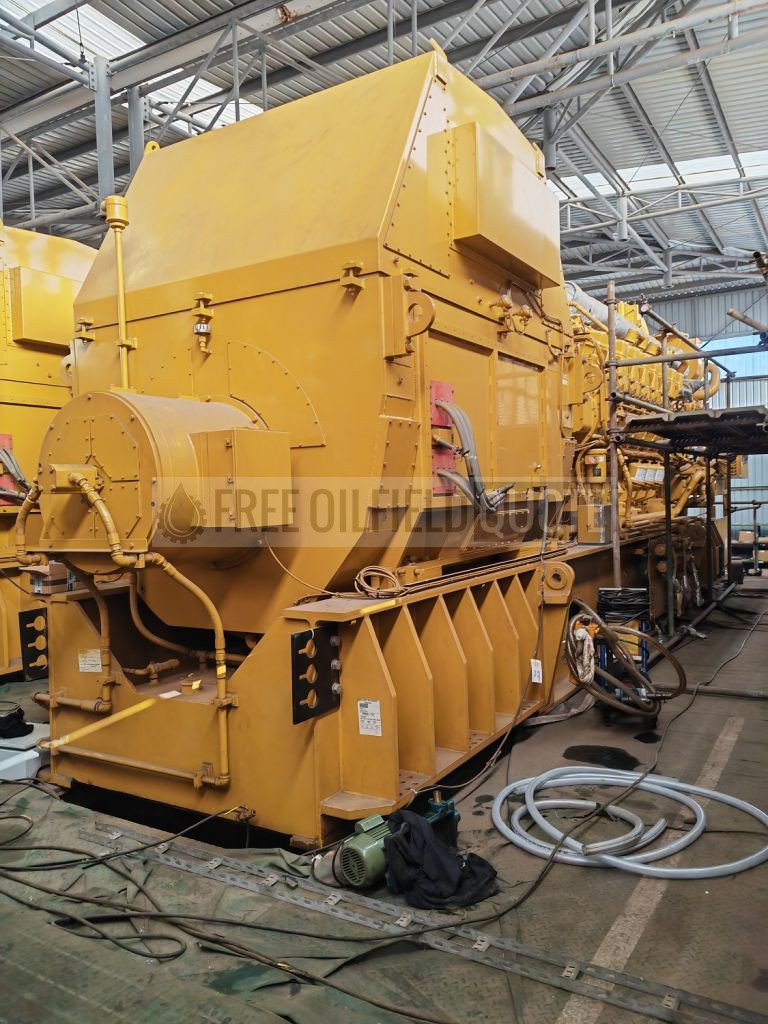

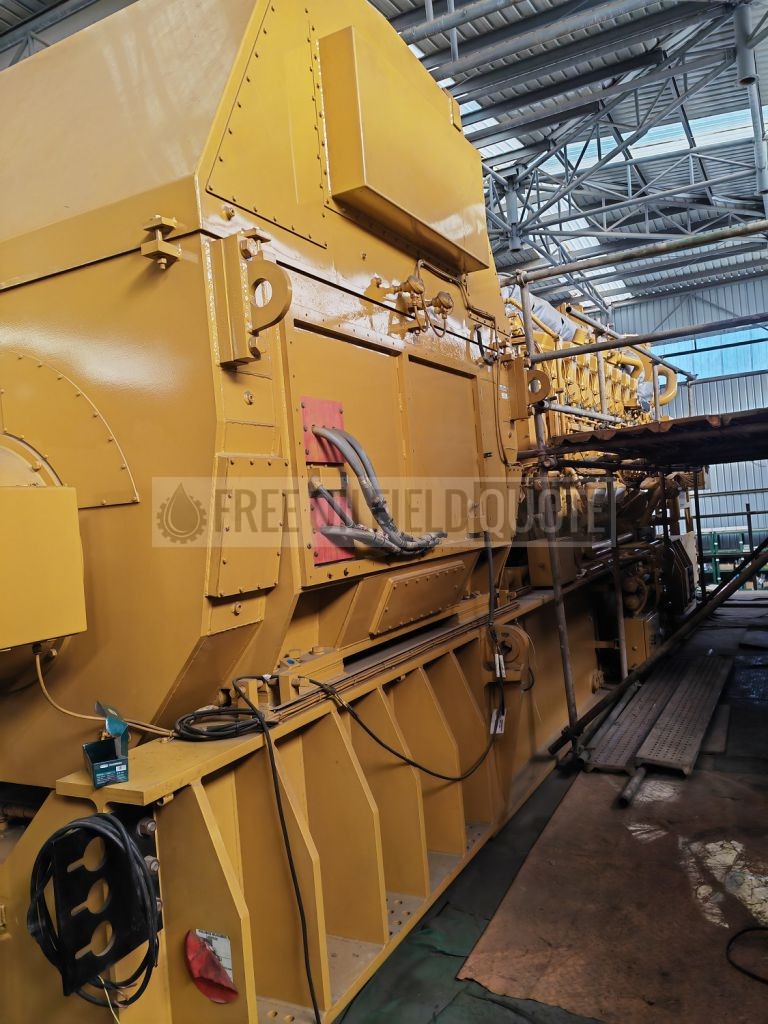

Alternator

• Type: Synchronous brushless revolving field with a direct connected rotating brushless exciter
• Code: Kato 8P 12-4700
• Power rating: 5500KVA, 4400 KW, 0.8ph+110% overload for 1 hr
• Duty: Continuous
• Rated speed: 900rpm, 8poles
• Electrical rating: 11.2KV, 60Hz, 3ph
• Connection: 6 wire, wye
• Temperature rise: 90°C/50°C ambient
• Insulation: Class F
• Enclosure: IP44
• Cooling: Totally Enclosed Water to Air
• Bearing design: Two Sleeve with ext. lube
• Net weight (approx.): 25,946Kg

Air Inlet System

• Flow of air at 100% load: 501.6 m3/min
• Air temp. @ air cleaner, max.: 45°C
• Air temp. after after-cooler, alarm: 60°C
• Intake manifold press. at 100% load: 277 kPa
• Air inlet restriction, new/max.: 1.25/3.8 kPa
• AC press. diff at 100% load, clean state: 3.4 kPa
