Equipment Details
Manufacturer: Wilson
Model: Mogul 42-B
Size/Dimensions: 6 axle
Year of Manufacture: 1979
Location: Midland, Texas
Other Details include:
Drawworks

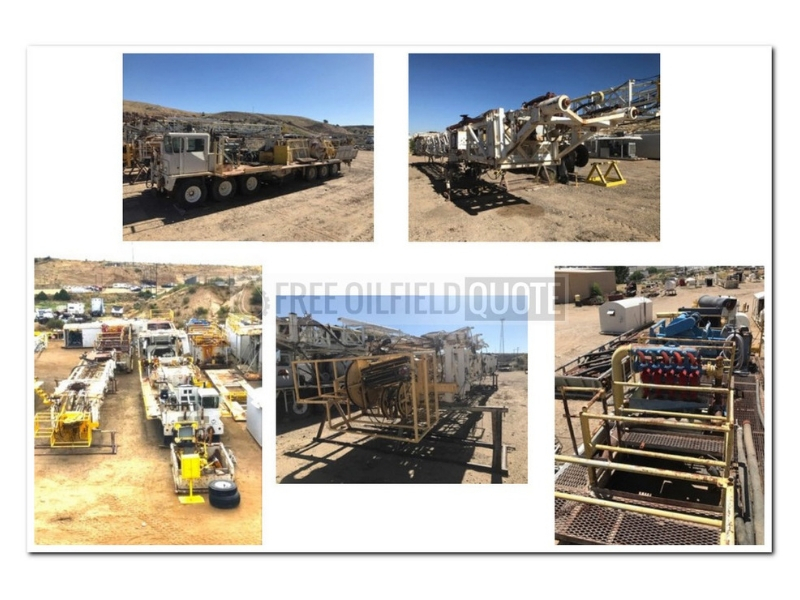

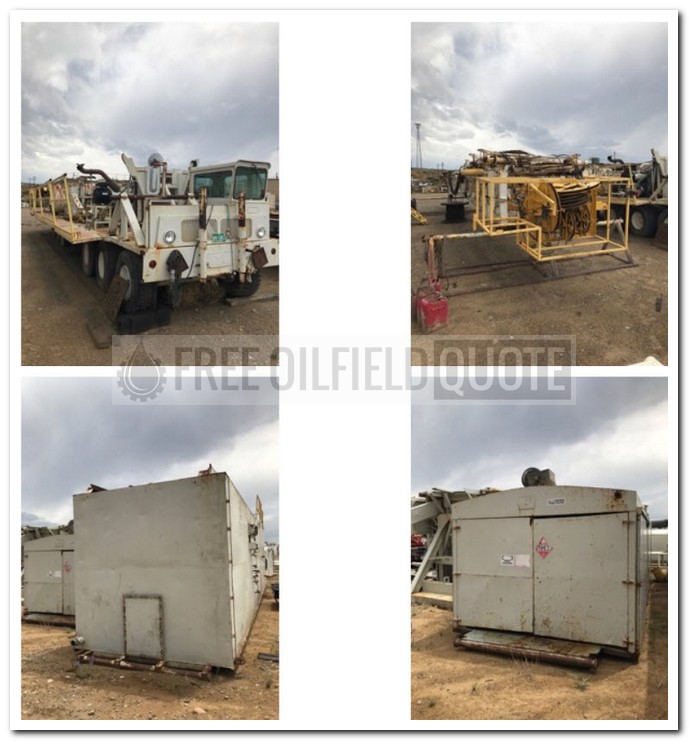

1979 Wilson Mogul 42-B 6 axle carrier mounted Drilling Rig, Drawworks #10594
Substructure
12'2" X 21’8” X 19'4” Substructure W/ramp
Mast
Wilson 112' x 300,000# Ser. #968-110-300
Triplex Mud Pumps
#1 Omega D-750 p/b Detroit Diesel 12V71, Allison 5860 Transmission, Air Start/Volume Tank, Covered Roof,
Lighting, Diesel Day Tank, Oteco Pop-Up Valves, Type D Mud Gauges 0-3,000 psi, Charging Pump. Master Skidded
w/loading hitches.
#2 Omega D-750 p/b Detroit Diesel 12V71, Allison 5860 Transmission, Air Start/Volume Tank, Covered Roof,
Lighting, Diesel Day Tank, Oteco Pop-Up Valves, Type D Mud Gauges 0-3,000 psi, Charging Pump. Master Skidded
w/loading hitches.
Mud System
10' X 5'7" X 54' Mud Pit W/ 5" X 6” Charge & Desilter Pumps
Galliger 8-Cone Desilter Cagle Shale Shaker C-99-23224
10’ X 48’ X 10’ 6“ Fresh Water Tank
Doghouse
8’ X 28’ X 23' Doghouse w/benches & lockers
Instrumentation
Star 12 Hour Geolagraph 2 Pen Chart Recorder
Satellite Automatic Driller
Bear 400,000# Dual Face Weight Indicator
Generators
11’ X 45' Enclosed Generator House
#1 Gen. E.M. 250 Kw Ac Generator #29b604 W/12v71 Detroit Diesel Power
#2 Gen. 250kw Delco W/ 12v71 Detroit Diesel Power
Fuel Tank
8’6” X 8'6” X 23’ 4,000 Gallon Fuel Skid
BOPS
Shafco 11" 3000# Double Ram B.O.P. Double Studded, Hydril 11” 3M Annular
Koomey 3-Station 6-k Air/Elec./ Hyd. 3000# Max 1500# Work Press. Closing Unit
5000# Choke Manifold W/ 2 Fully Adjustable Choke Valves. Grant 11" Rotating Head
11" T Spool W/3-1/8" 3000# Valve
11” X 13" Spacer Spool, 11” X 10" Spacer Spool, 11“ X 6" Spacer Spool
3” 4-1/6" X 23’ Flanged Stinger Line, 1-3” X 4-1/6” X 4’ Stinger Line
Misc. Tools
2-8” 1500# X 6” 1500# X-O’S for flowline
270 Jts. Grade "E” (8,167’) 4-1/2” XH Drill Pipe
10 - 6" XH Drill Collars
20 - 4-3/4" Drill Collars
3 Joints 4-1/2” XH Heavy Weight Drill Pipe
4- 42 1/2” X 30' Pipe Racks
2- 42 1/2” X 15' Pipe Racks
Catwalk
48’ X 4’ X 42 1/2" Catwalk
Rotary Table
Ideco 17-1/2” X 44“ Rotary Table w/split master bushings
Traveling Block
Ideco 160-Ton 4-Sheave traveling blocks
Swivel
Gray 150 Ton swivel
Kelly
40’ 4-1/4” X 4-1/2” reg thread Kelly w/ drive bushings
Junk Basket
8’ X 11’ Junk Basket w/Overhead Power Cord & Attached Breaker Box
Travel Trailer
1994 Terry Travel Trailer Id# 1ea1k3225r2936912 License#6478-rvz
Misc. Related Equipment
Triplex Alladin Koomey Hyd. Pressure Pump
Diesel Rotary Transfer Pump W/Extra Pump Body
Air Compressors
Quincy Model #345 Ser. #20030314-0507(light plant)
Quincy Model #325 lnd . Ser.#20060113-0090
Make Up Tools
Wooley Type "C" 48" Tong #C-465-c makeup
Wooley Type “C" 48" Tong #C-466-c breakout
2 3-1/2” X 5" Tong Heads
2 6-5/8” X 8" Tong Heads
2 9-5/8” X 10-3/4” Tong Heads
4 Extra Pins For Tong Heads
2 Boxes Of Dies Foster Catheads
1 #27-ah-1383, make Up
1 #28-ah-1258 breakout
Ingersoll-Rand plunger Air Tugger W/ 300' 1/2” Cable
1 10,000# Hyd. Winch W/ 300' 7/16" Cable
Survey Tools
Hyd. Wire Line Machine W/ App. 8500' .092 Wireline & Sheaves
7” Totco Deviation Tool
1 Steel & 1- Aluminum Barrel’s
1 Sinker Bar
