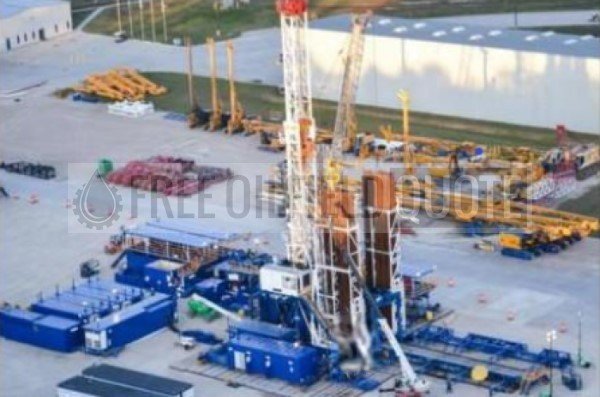

New 2017 Alta ARS 1600hp AC Rig Package

Manufacturer: Alta

Year of Manufacture: 2017

Type: New

Condition: Excellent

Location: Odessa, Texas

Notes:

• 2017 Alta ARS
• 750k Hook AC Doubles Walking Rig

New 2017 Alta ARS 1600hp AC Rig Package Details

NEORig Telescoping Double (1)

• Height
• Hook Load

Substructure

NEORig Cylinder Raised Slingshot Style

• Floor Height 25 ft.
• Clear Working Height 20 ft.
• Rotary Load 75O,D00 lbs.
• Walking System Capacity1,200,000 lbs.

Integrated Traveling AssemblyPower distribution

• Bauer VFD House & Remote VFD House Bauer Driller's Cabin
• 3 of Cat 3512c gensets with 12 month warranty

Mud System Tanks & Packages

2 Mud Pumps

• Gardner Denver Trail Blazer
• 1 Brewer AFD4OO.L623Ex AC Motor

Processing Equipment

• 2 MI Swaco MD3 Shakers
• MI Swaco CD-1800 LP Centrifugal Degasser
• Svendborg Caliper Brakes

Rig Floor Equipment

Bauer Hydraulic Rotary Table Bauer PT-100 Power Tong - 37.5 inches

• Max Make-Up Torque - 95,833 Ft. Lbs.
• Max Brake Out Torque - 125,386 Ft. Lbs.

Catwalk

Bauer Dual Make-Up Power Catwalk

• Drill Pipe Range - 3.5in—5.5in
• Drill Collar Range - 3.5in-9.5in

Well Control (Annular and closing unit)

• Cameron Type U Double - 13-5/8in x 10,000 psi
• Cameron Type U Single - 13-5/8in x 10,000 psi MI Swaco
• Choke Manifold - 3-1/16in x 10,000 psi
• MI Swaco Mud Gas Separator - 20.67ft Tall x 5ft Dia. 2 Trip Tanks 40 bbl.

Automated Pipe Handling System & Storage Bins

NEORig Hydraulic 270° Pipe Manipulator

• Drill String Size Range 3.5in to 9.5in Diameter
• Casing Size Range 4in to 20in Diameter
• Nominal Storage 244 stands (double)

Miscellaneous Fuel Tank

• Water Tank 330 bbl.
• All hoses, fittings, etc. will be replaced.

BOP certified 16A

Rig to be totally certified 2023.
