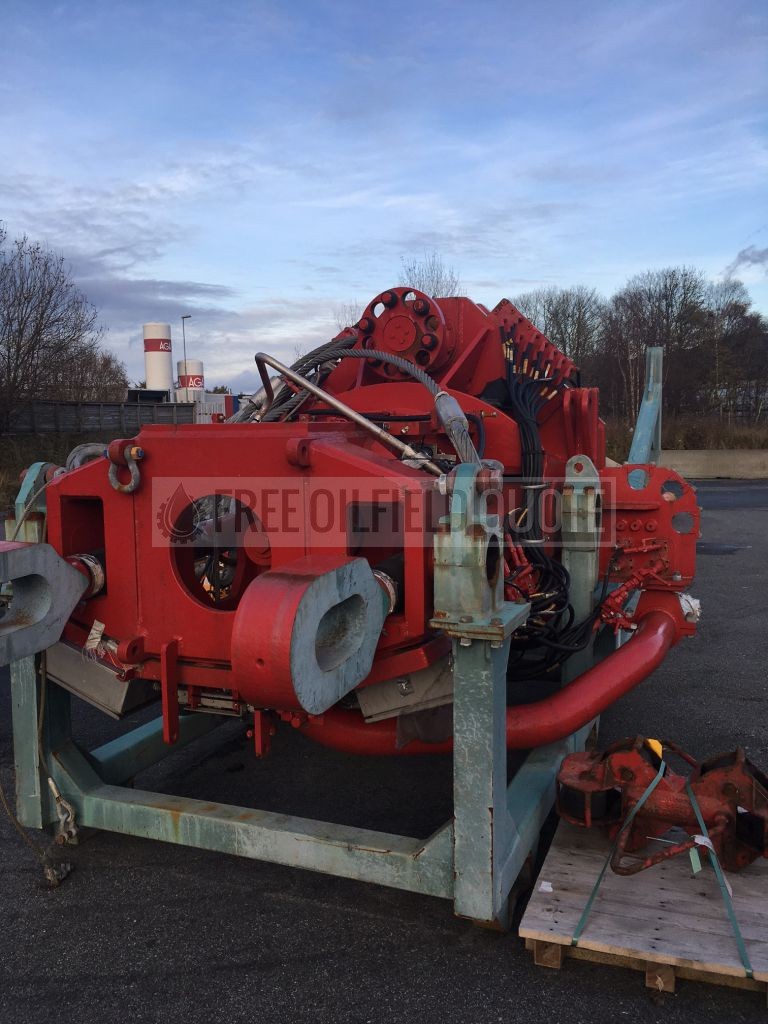

MHWirth DDM 750 Top Drive

Location: Norway

Type: Used

Condition: Excellent

Manufactured: 2008

Condition: Unused, complete OEM data book included

Rate: 750ton hook load The motor does not come with the top drive.

DDM-750-AC

Controls: Electric Remote

Weight: 59500 lb (27000 kg)

Power Rating: 1150 Hp (858kW)

Height: 23.0 ft

Continuous Torque, max.*: 59200 lbf-ft (80200 Nm)

Speed @ max cont. Torque: 98 rpm

Speed, max.: 250 rpm

Hook Load Drilling: 750 sh.tons (680 m.tons)

Hook Load Tripping: 750 sh.tons (680 m.tons)

Pressure Class: 7500 psi

IBOP Pressure Rating: 15000 psi (1034 bar)

Water Course: 3 1/2 in (90 mm)

Torque Wrench. make-up/break out: 125000 lbf-ft (169500 Nm)

Hazardous area classification (according to IEC 60079-10-1 and API RP 505): Zone 1

MHWirth DDM 750 Top Drive Details

A 750 Top Drive is a type of drilling equipment used in the oil and gas industry. It is a heavy-duty drilling system that is used to rotate the drill string during the drilling process. The 750 in its name refers to its maximum torque capacity, which is 750,000 in-lbs.

The top drive is mounted on the drilling rig and is connected to the drill pipe or drill string. It is powered by an electric motor or hydraulic system and can be controlled by an operator on the rig floor or remotely from a control room. The top drive is designed to provide a more efficient and safer drilling operation by reducing the number of manual processes required and improving the speed and accuracy of drilling.

The 750 Top Drive is a popular choice among drilling contractors due to its high torque capacity, reliability, and versatility. It can be used in a wide range of drilling applications, including vertical, directional, and horizontal drilling, and can handle a variety of drill string sizes and weights.
