| Name | Gas Line Pipes |
| Code | 67214345 |
| Type | Standard |
| Brand | Unknown |
| Category | Pipe/Rods/Collars |
| subcategory | Line Pipe |
| Price | $5,150,000.00 |
| Unit | Package Deal (Package) |
| In Stock | Yes |
| Location | Spain |
| Type | Used |
| Available Quantity | 289128ft |
| Short Description | Gas Line Pipes For Sale |

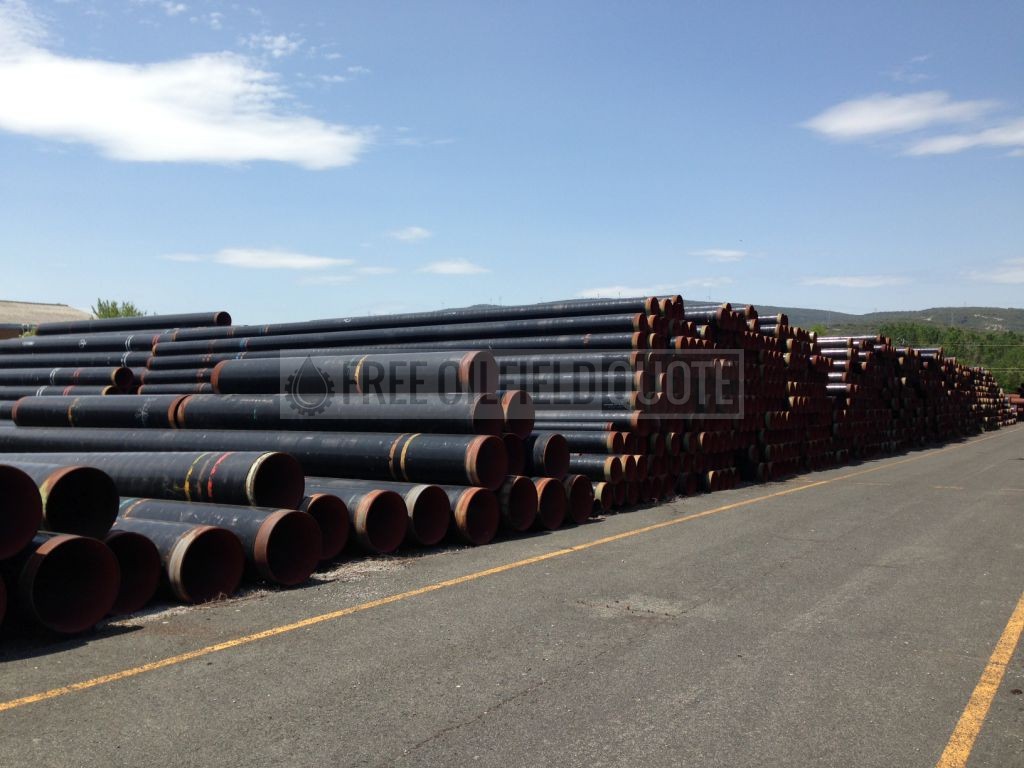

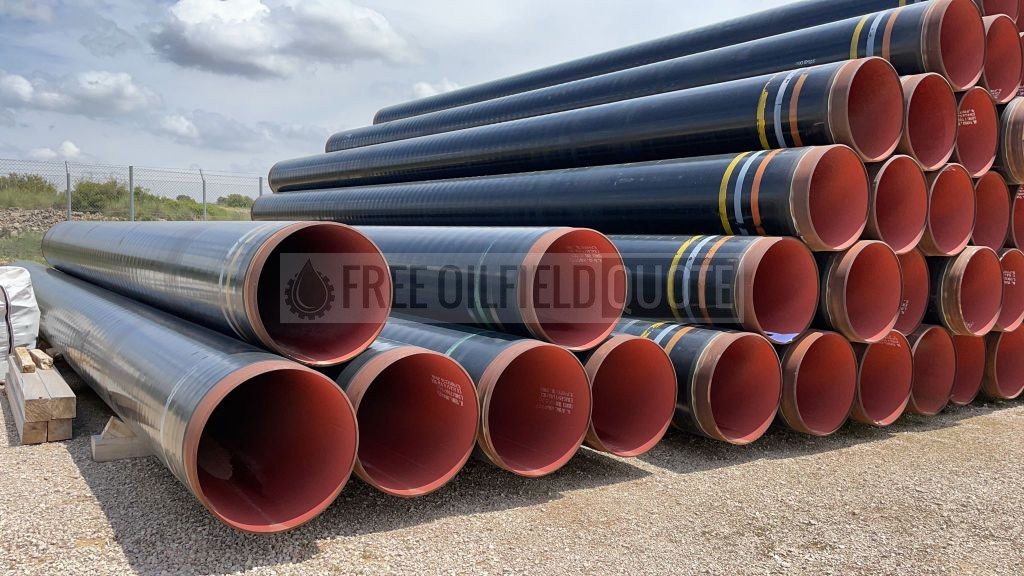

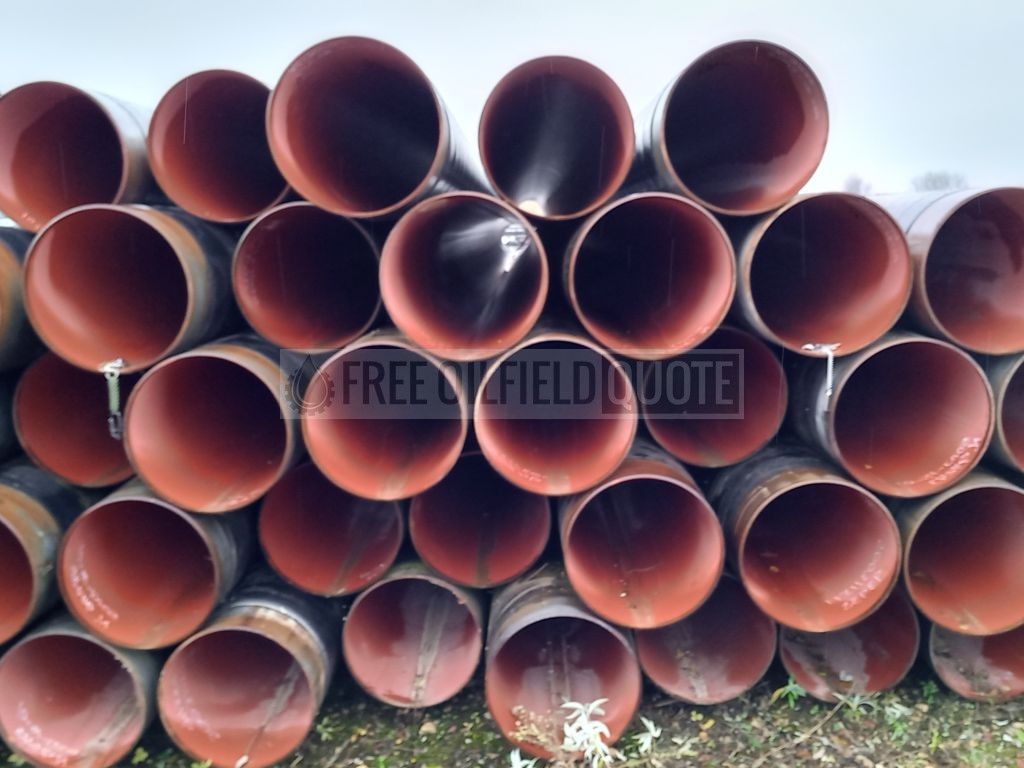

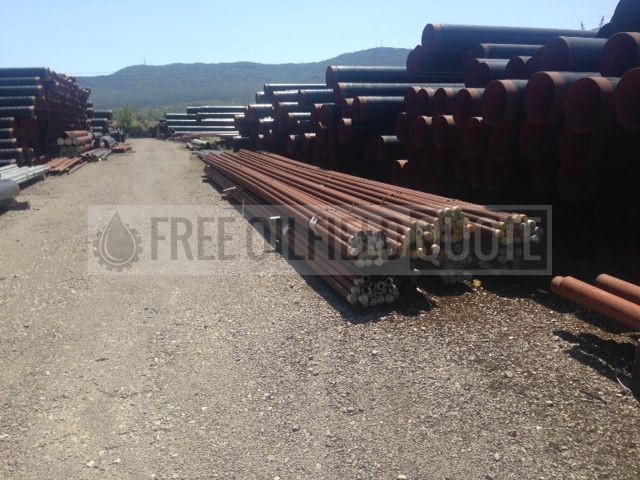

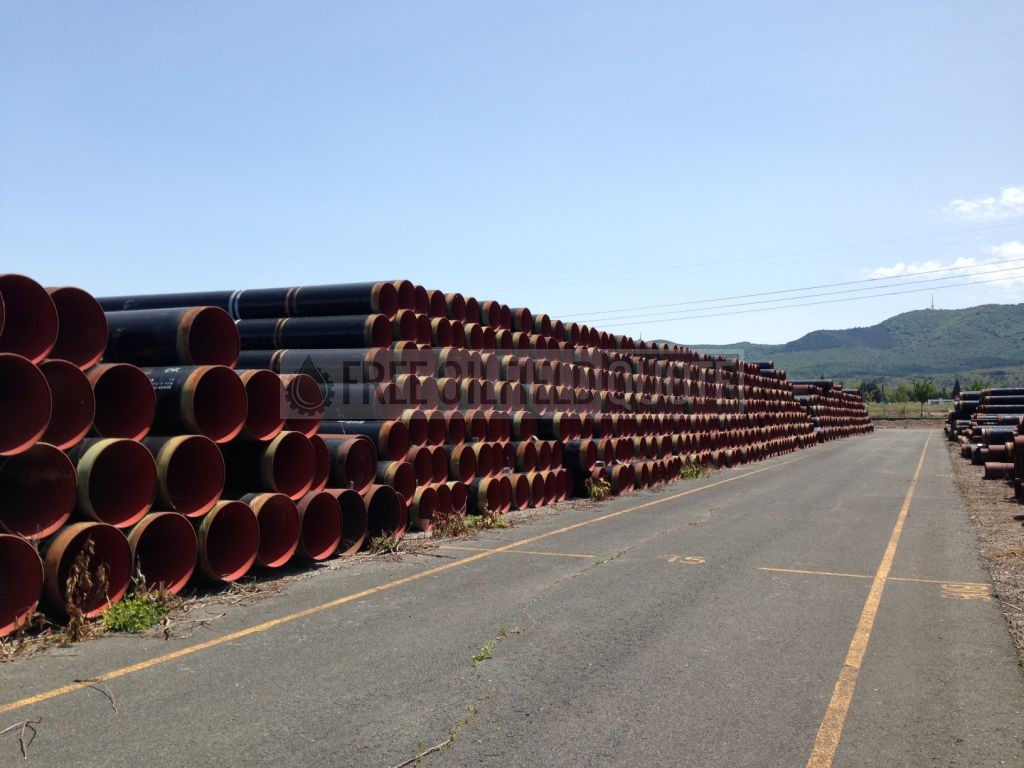

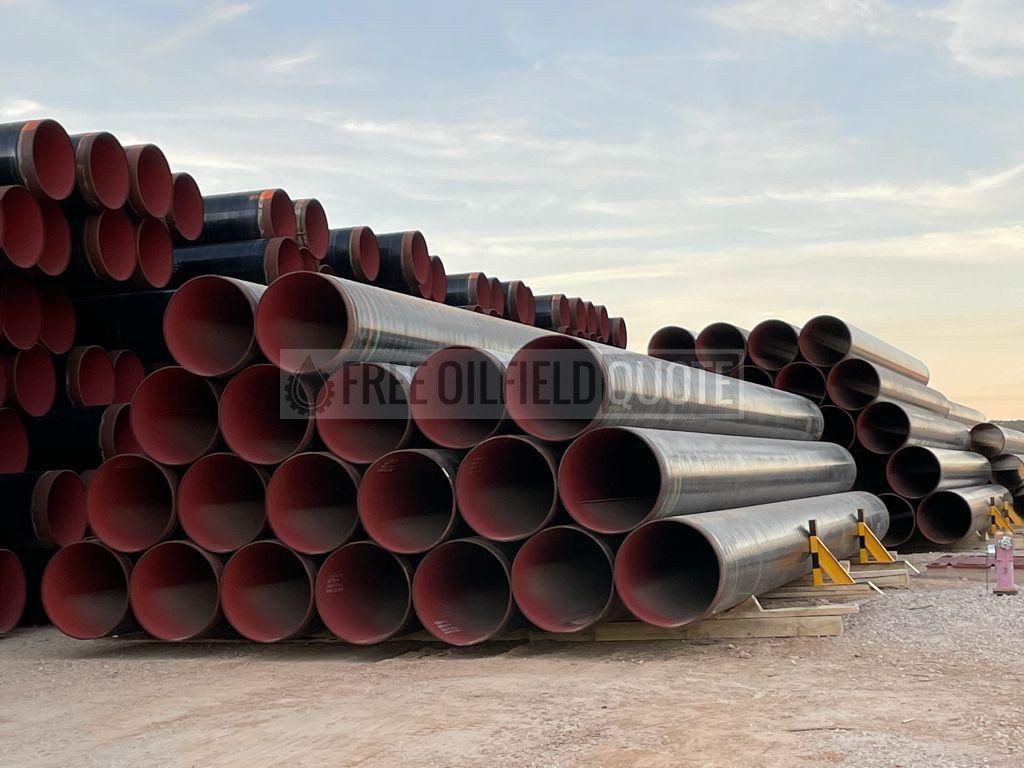

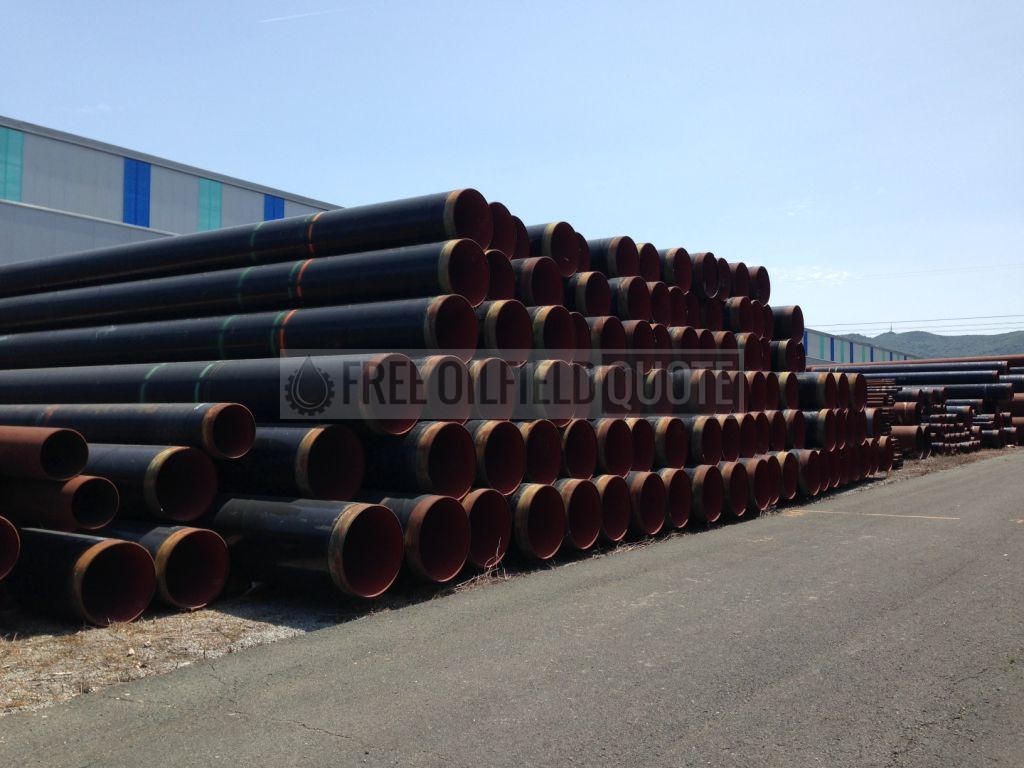

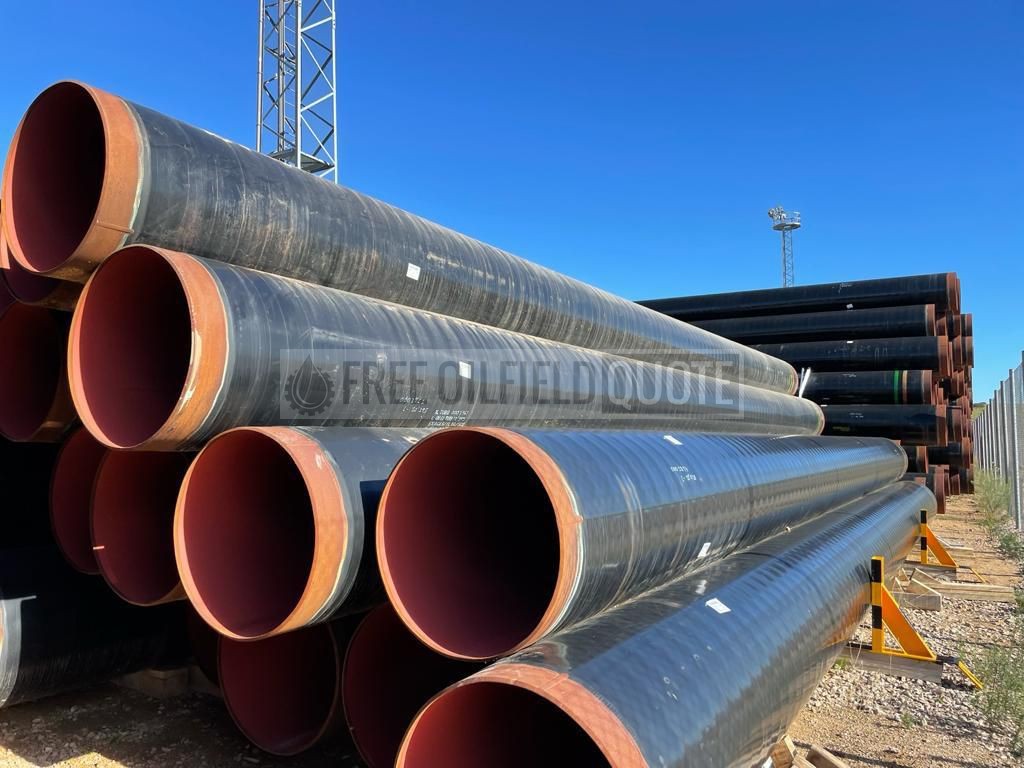

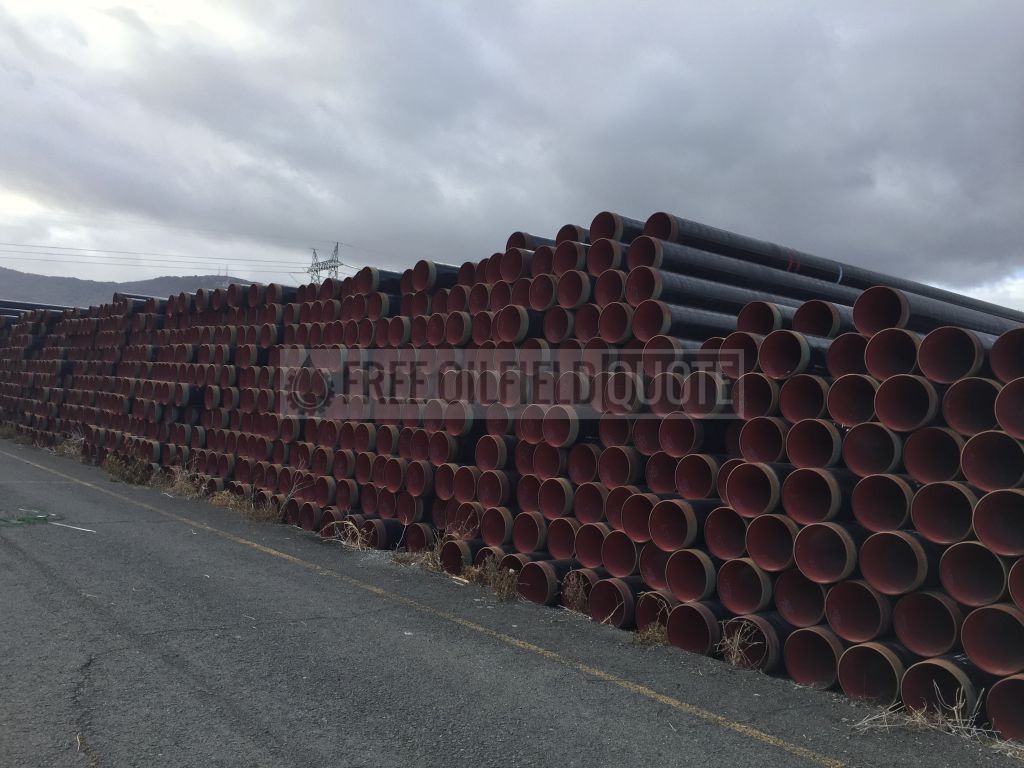

Gas Line Pipes
Type: Used
Location: Spain
Note: Currently only 12,000 MT is available for sale. The price is indicative of only 12,000 MT of pipe. Total pipe available is 45,000 MT.
Gas Line Pipes Details
| Inch | OD/mm | Wall thickness/mm | Steel Grade | Execution | Coating | Warehouse | Possible Port of Shipment | Quantity in meter | weight/kgs of bare material (basis) |
|---|---|---|---|---|---|---|---|---|---|
| 4in | 114.30 | 3.60 | api-5l gr-b | seamless | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 1,547.02 | 15,204 KG |
| 4in | 114.30 | 3.60 | api-5l gr-b | seamless | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 2,673.00 | 26,271 KG |
| 10in | 273.00 | 7.10 | api-5l gr-b | longitudinally welded | HDPE double three layer coating | V , North Spain | Bilbao / Gijon | 109.24 | 5,086 KG |
| 16in | 406.40 | 7.10 | api-5l gr-x60 | longitudinally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 2,363.07 | 165,217 KG |
| 16in | 406.40 | 7.10 | api-5l gr-x60 | longitudinally welded | HDPE double three layer coating | V , North Spain | Bilbao / Gijon | 24.00 | 1,678 KG |
| 16in | 406.40 | 7.90 | api-5l gr-x60 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 12.88 | 1,000 KG |
| 26in | 660.40 | 7.10 | api-5l gr-x70 | spirally welded | HDPE double three layer coating | V , North Spain | Bilbao / Gijon | 98.91 | 11,314 KG |
| 26in | 660.40 | 7.10 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 208.81 | 23,886 KG |
| 26in | 660.40 | 8.70 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 425.79 | 59,536 KG |
| 26in | 660.40 | 8.70 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 19,906.03 | 2,783,371 KG |
| 26in | 660.40 | 8.70 | api-5l gr-x70 | spirally welded | HDPE three layer coating | A, North Spain (close to V) | Bilbao / Gijon | 53,384.54 | 7,464,521 KG |
| 26in | 660.40 | 8.70 | api-5l gr-x70 | spirally welded | HDPE three layer coating | A, North Spain (close to V) | Bilbao / Gijon | 420.59 | 58,809 KG |
| 36in | 914.40 | 10.30 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 178.49 | 40,991 KG |
| 36in | 914.40 | 11.10 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 26.10 | 6,454 KG |
| 36in | 914.40 | 11.10 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 4,142.00 | 1,024,200 KG |
| 36in | 914.40 | 11.10 | api-5l gr-x70 | spirally welded | HDPE double three layer coating | V , North Spain | Bilbao / Gijon | 23.94 | 5,920 KG |
| 36in | 914.40 | 11.10 | api-5l gr-x70 | spirally welded | HDPE double three layer coating | V , North Spain | Bilbao / Gijon | 65.02 | 16,078 KG |
| 36in | 914.40 | 11.10 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 53.38 | 13,199 KG |
| 36in | 914.40 | 11.10 | api-5l gr-x70 | spirally welded | HDPE three layer coating | A, North Spain (close to V) | Bilbao / Gijon | 2,437.65 | 602,762 KG |
| 36in | 914.40 | 11.90 | api-5l gr-x70 | spirally welded | HDPE three layer coating | V , North Spain | Bilbao / Gijon | 25.62 | 6,786 KG |
| 88,126.08 | 12,332,283 KG |
**IMPORTANT BUYERS
NOTICE**
All items are Sold AS-IS WITH NO WARRANTY expressed or implied. Items offered for sale may be damaged, inoperable and/or missing parts. We STRONGLY RECOMMEND a careful review of each photo and video and PERSONALLY INSPECT the item(s) before making a decision to purchase. Free Oilfield Quote IS NOT responsible for ANY missing or damaged equipment, part, item or accessory and shall not be held liable for any damage prior to or during the removal and/or delivery of the equipment. Any and all agreements contrary to the above disclaimer must be in writing and agreed upon up front and prior to any transaction.
