50204208 - Drilling Rig Loadcraft Substructure

Drilling Rig Loadcraft Substructure (50204208) Products

Name	Drilling Rig Loadcraft Substructure
Code	50204208
Type	New
Brand	Loadcraft
Category	Rigs
subcategory	Rig Structure
Price	$250,000.00
Unit	Each (Each)
Location	Texas
Type	NEW
Short Description	*THIS ITEM HAS BEEN SOLD - FOR OTHER OPTIONS PLEASE CALL 844-475-2060 OR CLICK THE ICON BELOW FOR INSTANT CHAT!

Price: $250K

Equipment Name: LOADCRAFT SUBSTRUCTURE

Location: New Mexico

Manufacturer: LOADCRAFT

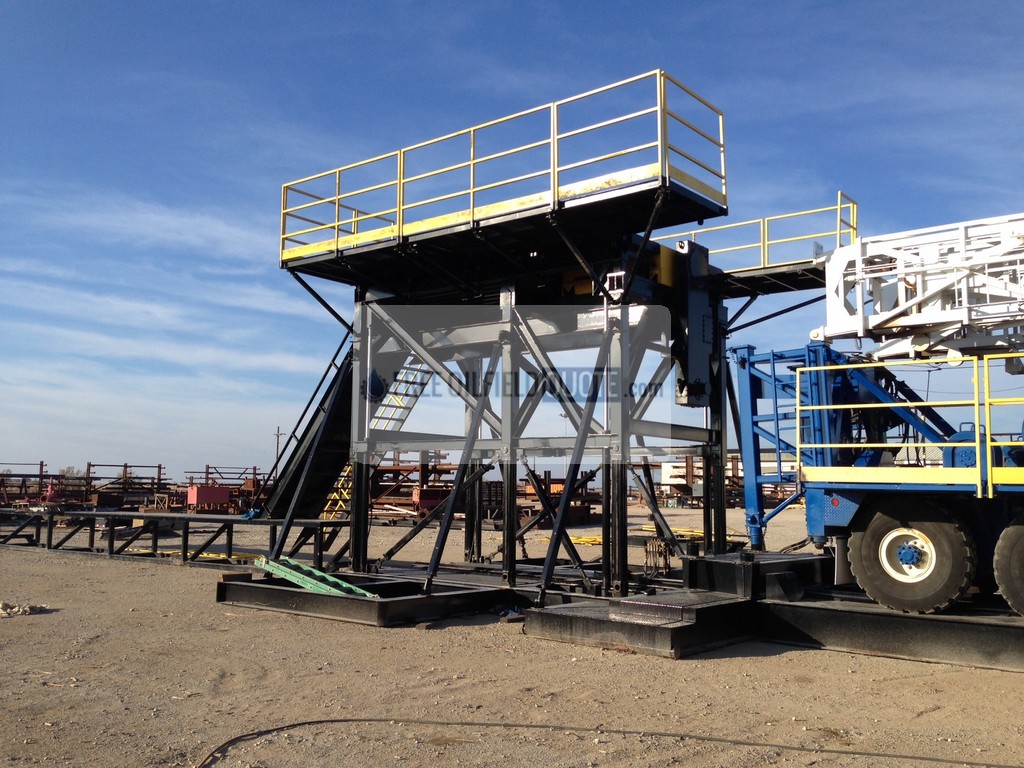

LOADCRAFT LCI 14.75 FT SUBSTRUCTURE SPECIFICATIONS

30 DAY BUILD TIME

SUBSTRUCTURE

Substructure assembly with provisions for mounting rotary table

Size—14.75’ high x 10’ 6” wide x 16’ long, beam structure box type

Sub floor---3” wood on setback

4’ wings on each side of the sub

Static Rotary Capacity: 125 Tons

Pipe Setback Capacity: 70 Tons

Rotary Table--- 44” center HD oil bath rotary table complete with solid steel API

Split square drive master bushing. Table is complete with heat treated spiral bevel gears,

4’ V-door

Chain case- Vertical chain case for Rotary Drive to Table, 1810 Flanges to Rotary Couple

CARRIER RAMP/BASEBEAM

10’w x 18”h x 49.5’l and has hinged section for easier transportation, with steel covered wheel guides.

24’ basebeam with 18” riser

Important Buyers Notice: All items are Sold "As-Is" with "No Warranty" expressed or implied. Items offered for sale may be damaged, inoperable and/or missing parts. You are strongly urged to carefully review each photo and video as well as personally inspect the item before making a decision to purchase. Free Oilfield Quote is not responsible for any missing or damaged equipment, part, item or accessory and shall not be held liable for any damage prior to or during the removal and/or delivery of the equipment. Any and all agreements contrary to the above disclaimer must be in writing and agreed upon up front and prior to any transaction.
